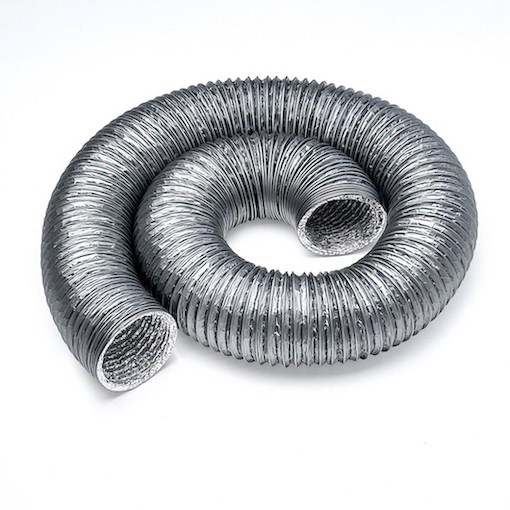

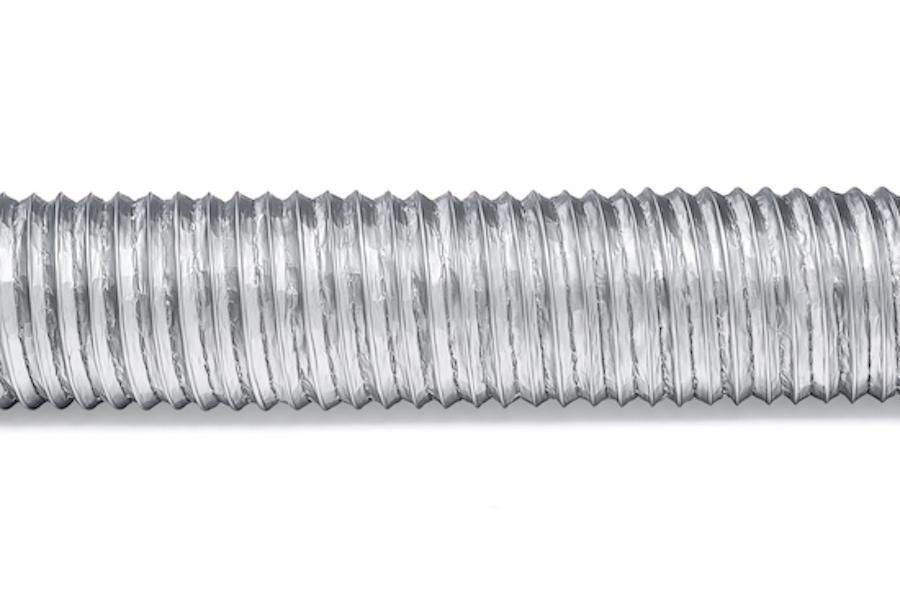

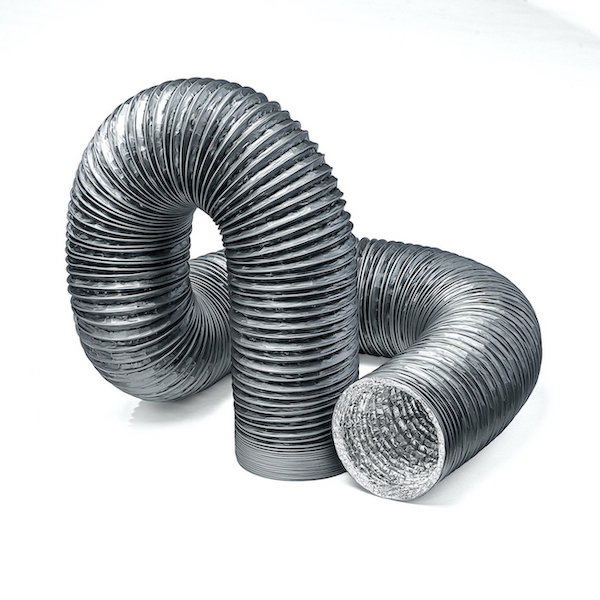

100/3 m flexible aluminium air duct ProFlex 5X Gray (5 layers), HavenPoint

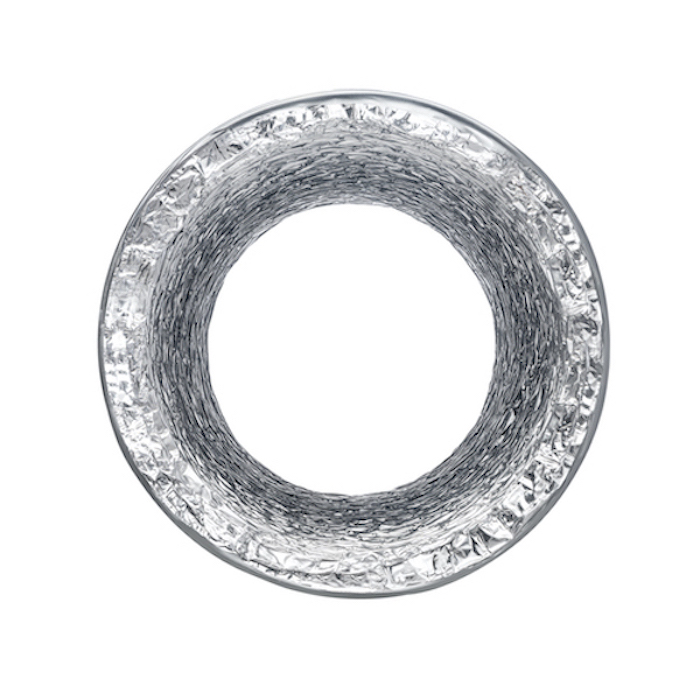

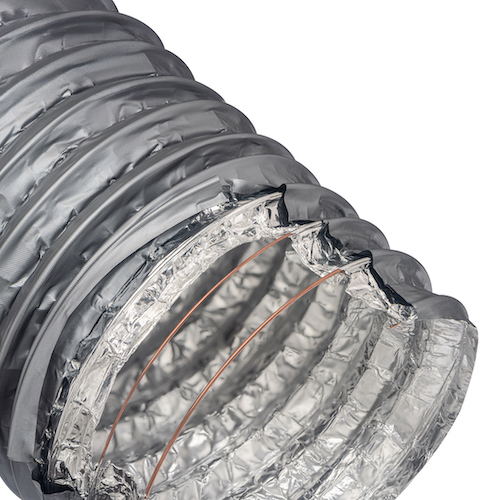

HavenPoint ProFlex 5X Gray is a ultra flexible laminated air duct with 5-layer construction – 3 aluminium layers, 1 polyester layer and 1 outer copolymer protective layer.

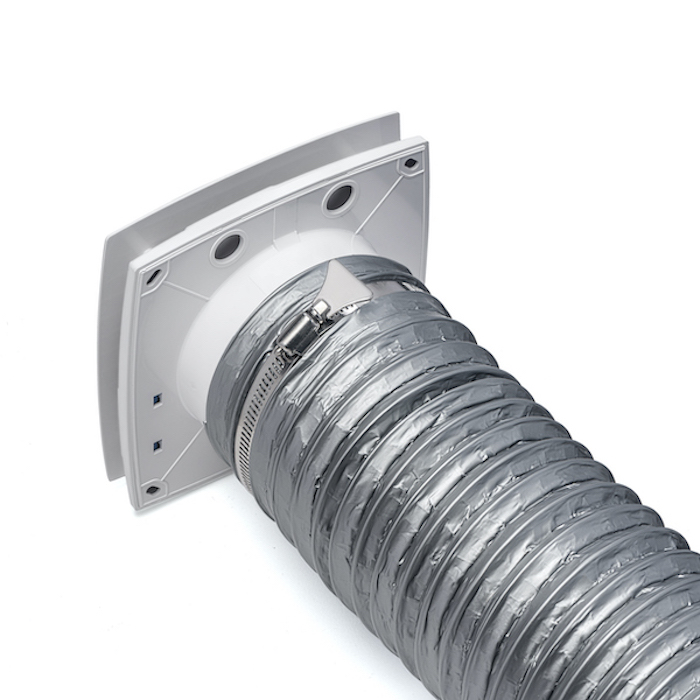

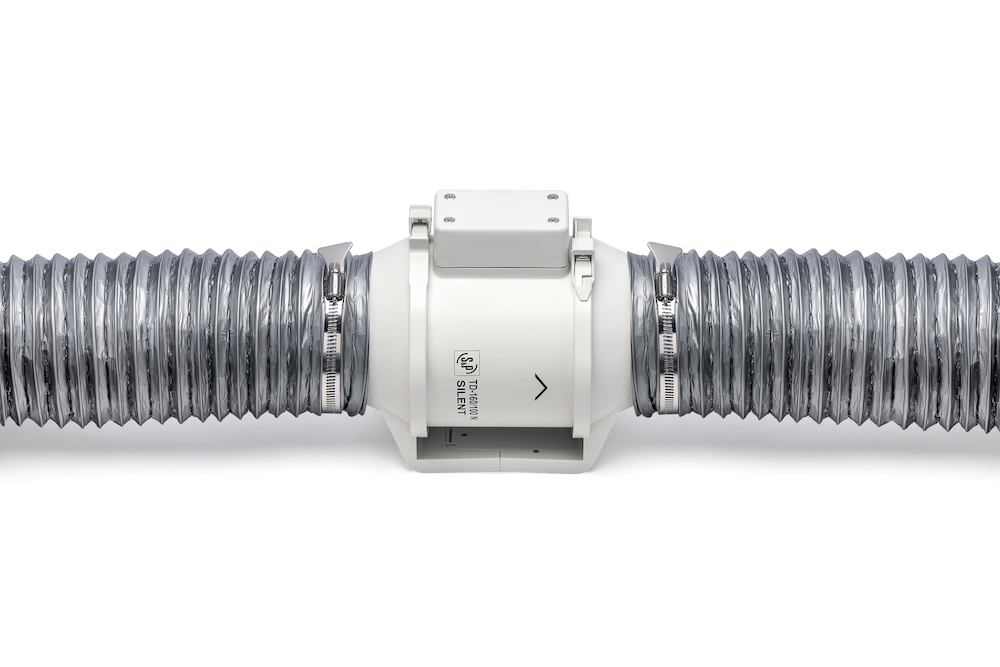

With its wear-resistant and vapour-proof outer layer, the ProFlex 5X Gray is perfect as a hot air hose, exhaust duct, or ventilation pipe. It is built to withstand heat, moisture, and mechanical stress, making it suitable for cooker hoods, bathroom fans, dryers, air conditioners, and general ducting systems.

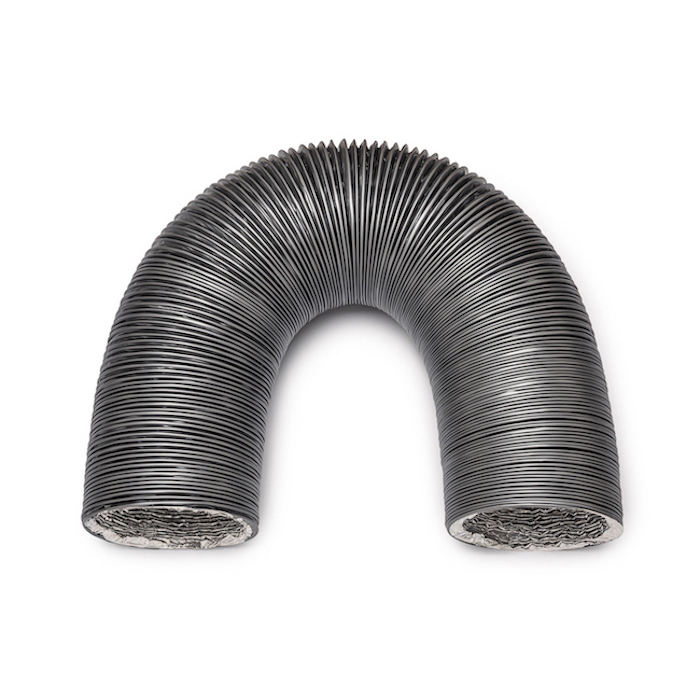

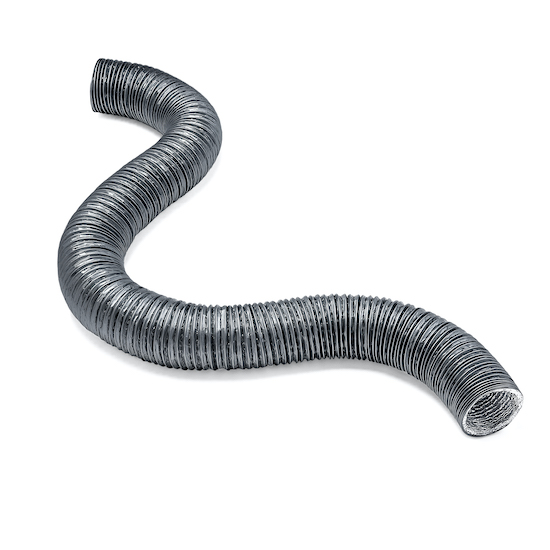

Thanks to its flexible design, the ProFlex 5X Gray can be easily connected to round or oval fittings. Installation is quick and simple, even in confined or complex areas.

Technical Information:
Color: Gray
Diameter: 102 mm
Length: 3 m

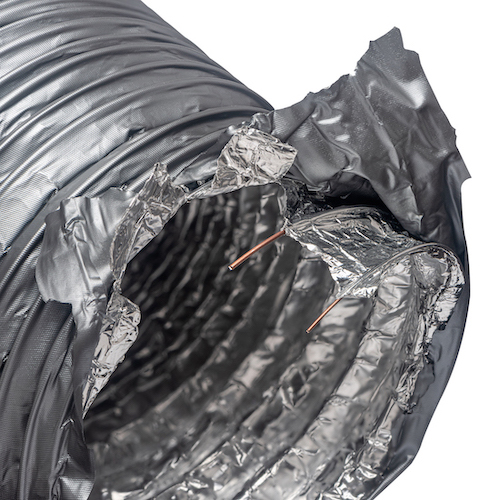

Construction:
– 3 aluminium layers (25 μm),
– 1 polyester layer (12 μm),
– 1 outer copolymer protective layer (90 μm),
– double wire reinforcement
Total thickness (without adhesive): 177 μm
Wire spacing: 12 / 18 / 25 mm
Temperature range: -30 °C to +140 °C
Operating pressure: up to +3000 Pa
Air velocity: max. 30 m/s
Connection type: round and oval fittings
Bending radius: min. 0.58 × 102
Certified to DIN EN 13180 – meeting the highest EU standards for flexible air ducts.
RoHS & REACH compliant, ensuring environmental and user safety.
Made in the EU.

Superior Advantages Over Alternatives:
– Compared to PVC ducts: ProFlex 5X Gray offers higher heat resistance and produces less smoke in case of fire, making it safer and more reliable.
– Compared to standard aluminium ducts: It provides higher tear resistance, stronger protection against external impacts, better resistance under local pressure, and superior puncture resistance.
