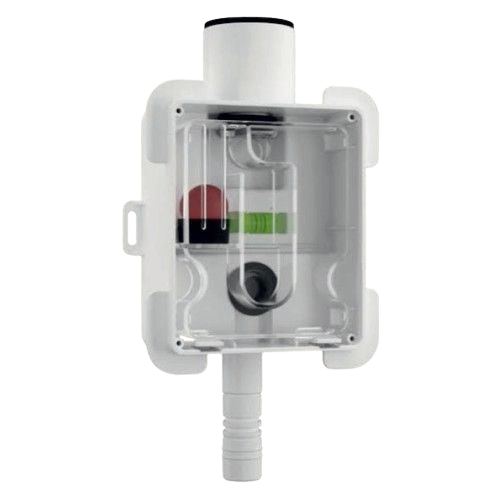

Tecnosystemi 11126322B REGIO waterless siphon trap with cover 16–40mm, removable

The Tecnosystemi REGIO 11126322B dry siphon is specially designed to effectively eliminate unpleasant odors that may arise from condensate pipes, ensuring a fresh and hygienic indoor environment. Its advanced design not only blocks odors but also prevents dirt buildup, keeping your drainage system clean and reliable.

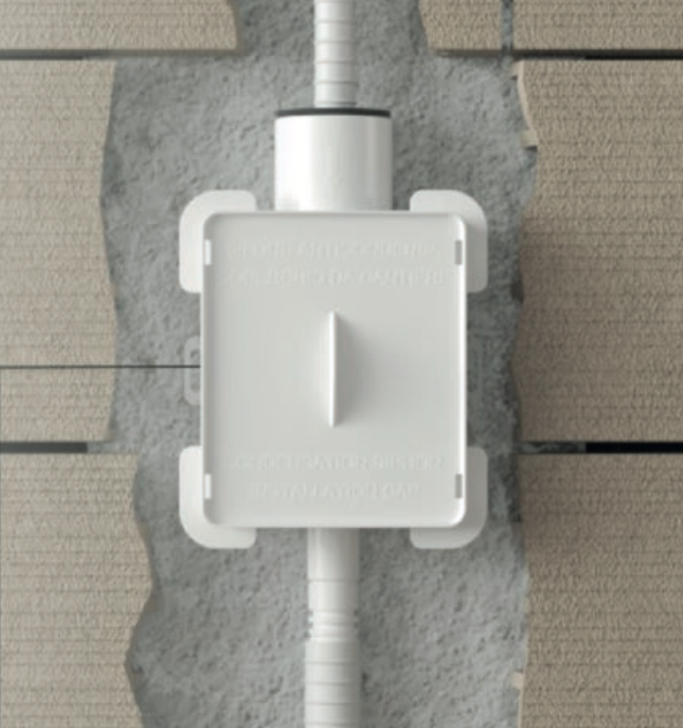

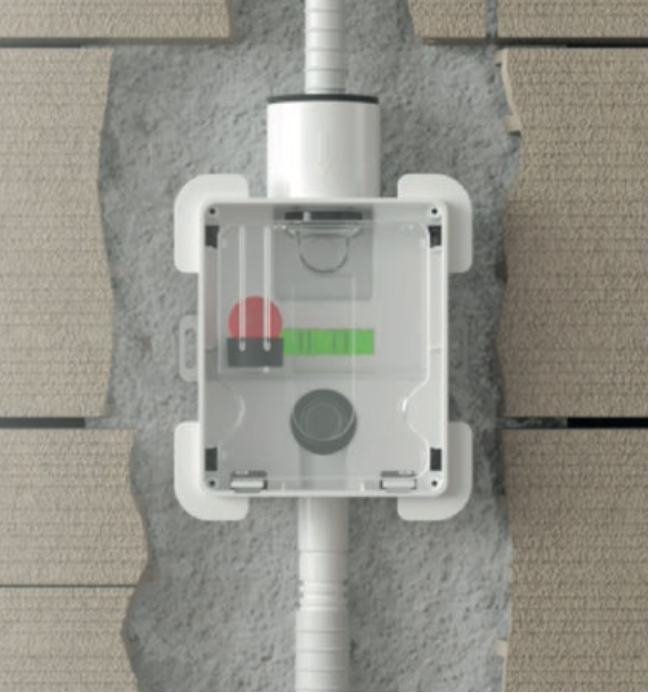

– Designed for vertical wall installation with screw-mounted external housing for maximum stability.

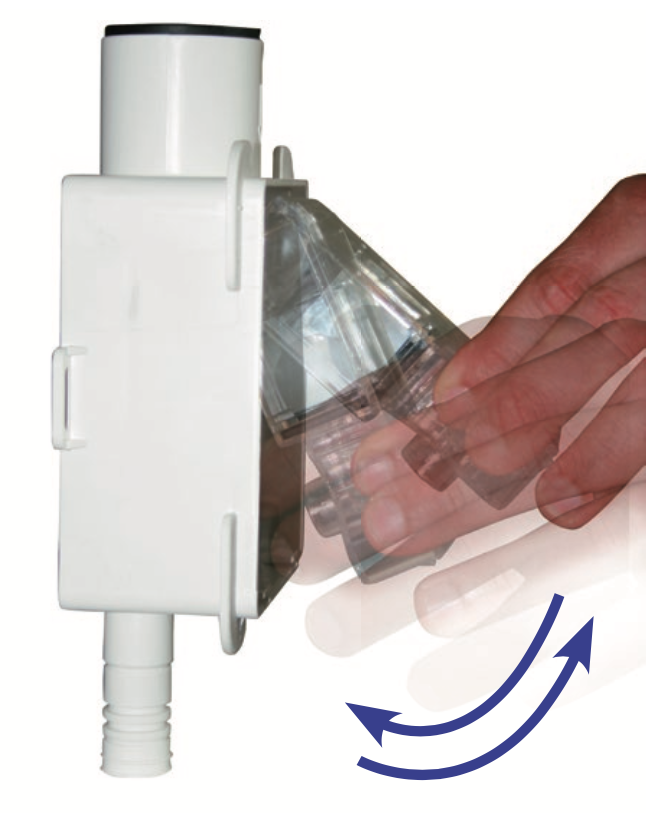

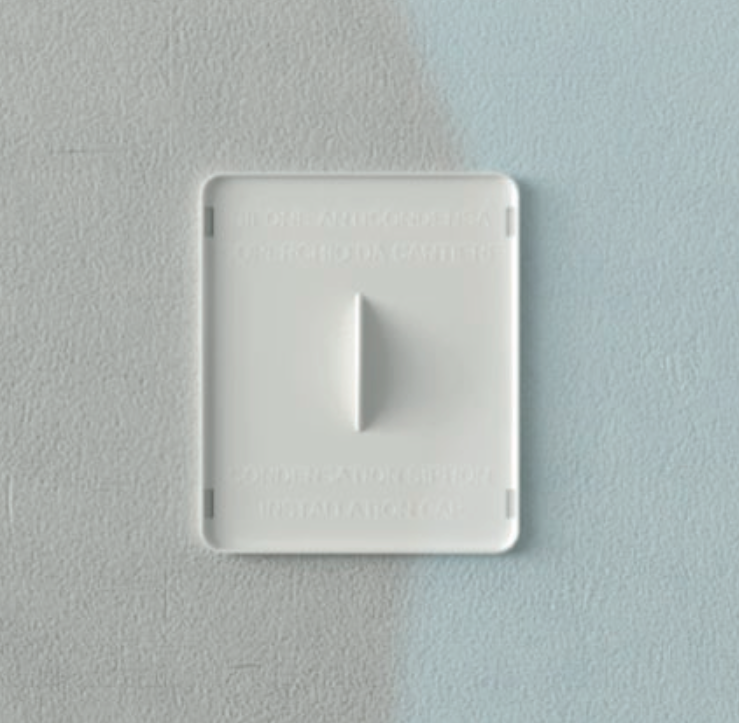

– Equipped with a removable cover for quick access to the siphon body, allowing fast and efficient cleaning.

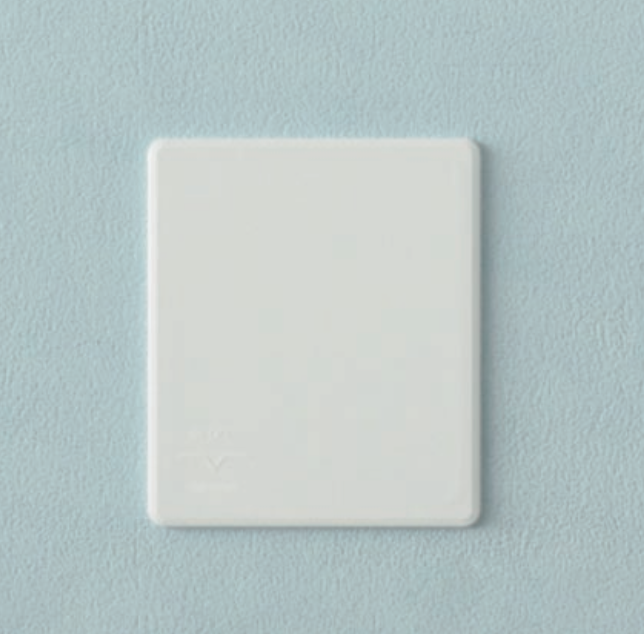

– Includes a decorative panel, making it easy to integrate into any interior.

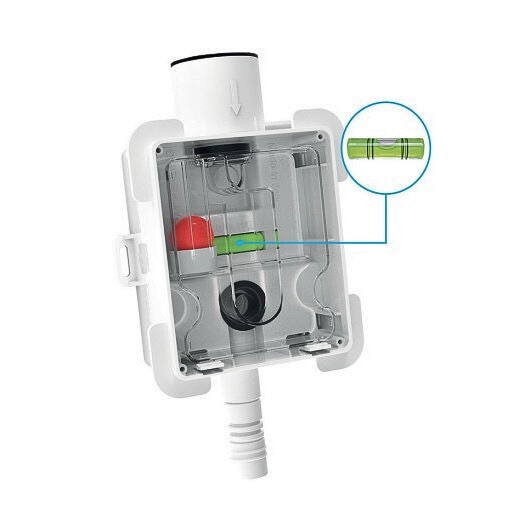

– Built-in spirit level indicator ensures precise installation, reducing the risk of leaks or installation errors.

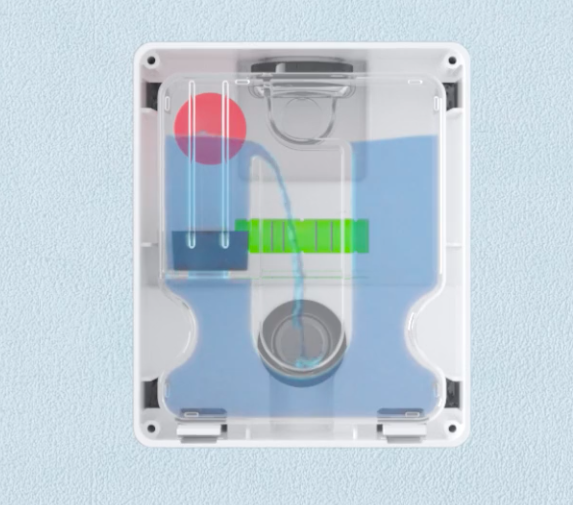

– Features an anti-odor ball mechanism, efficiently blocking unwanted smells from entering the room.
– Constructed from durable transparent PVC, allowing easy inspection, maintenance, and cleaning.

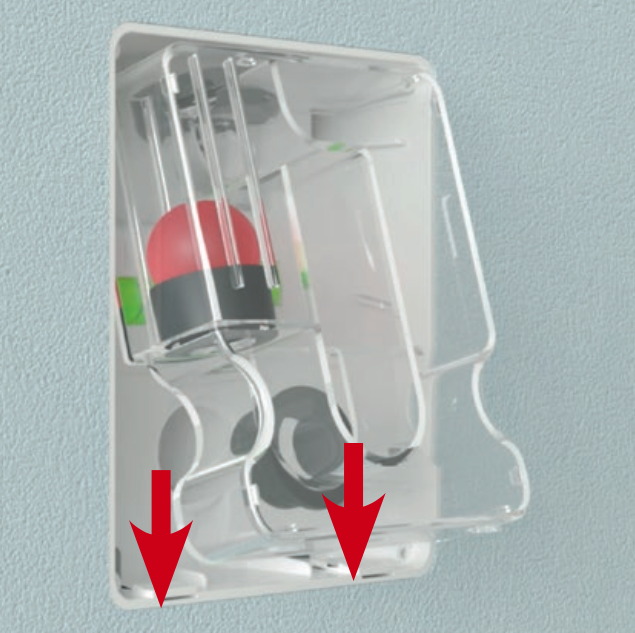

– The removable transparent panel provides direct access to the siphon’s interior for simplified upkeep.
– Compatible with all types of condensate pipes (Ø16–40 mm).
– Outlet connection compatible with Tecnosystemi drain pipes: 11126345, 11126346, 11126327, 11126324, 11126346T (with sealing gasket).
– Made in Italy, ensuring quality and reliability.
The REGIO 11126322B dry siphon combines modern design, durability, and functionality, making it an essential solution for HVAC and condensate drainage systems.

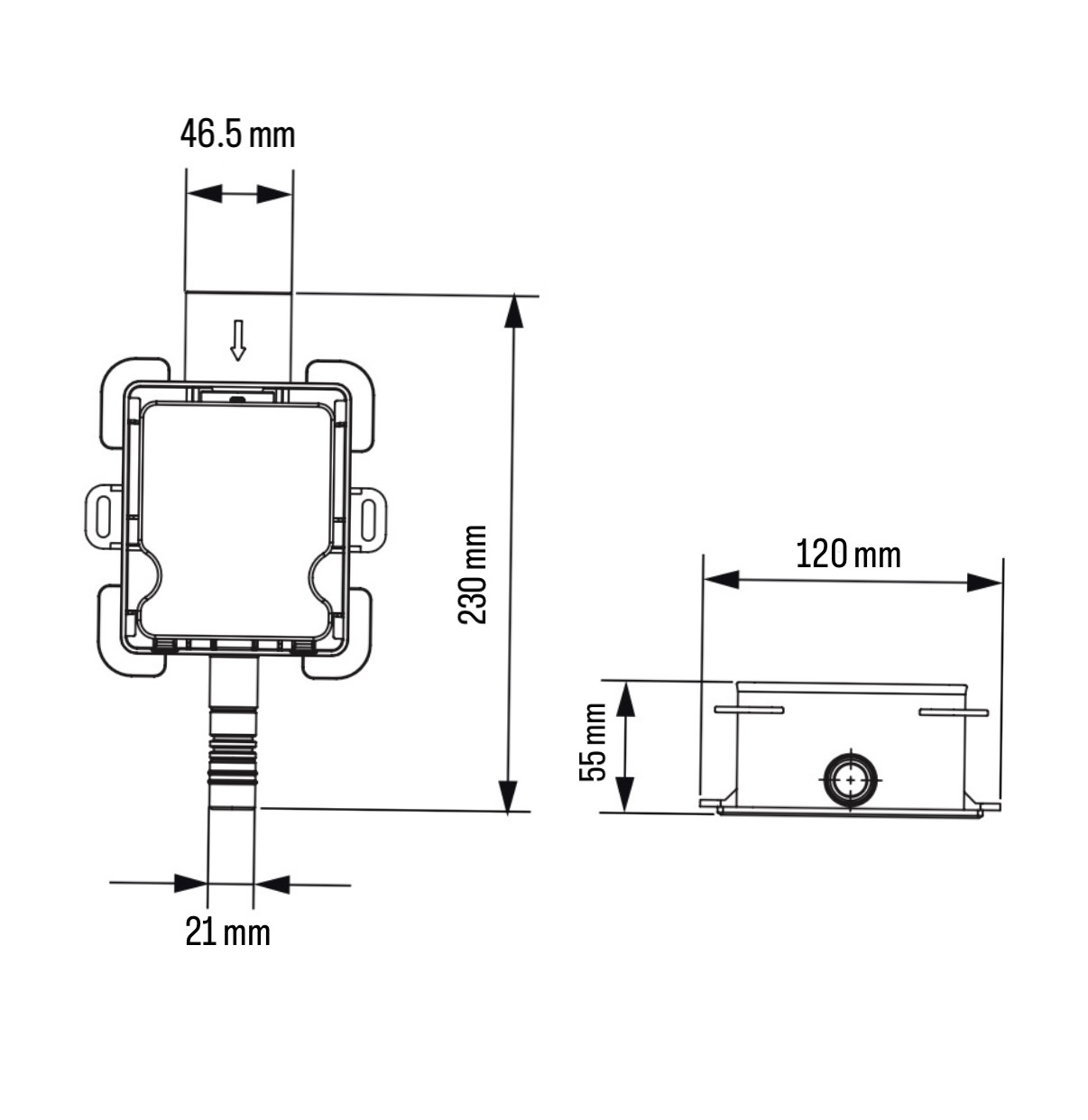

Technical Information:
Inlet connection diameter Ø (mm): 16 to 40
Outlet connection diameter Ø (mm): 18 to 21
Depth: 55 mm
Width: 120 mm
Length: 230 mm
Inlet diameter Ø : 46.5 mm
Outlet diameter Ø: 21 mm
Installation: Vertical (wall-mounted)
Material: PVC

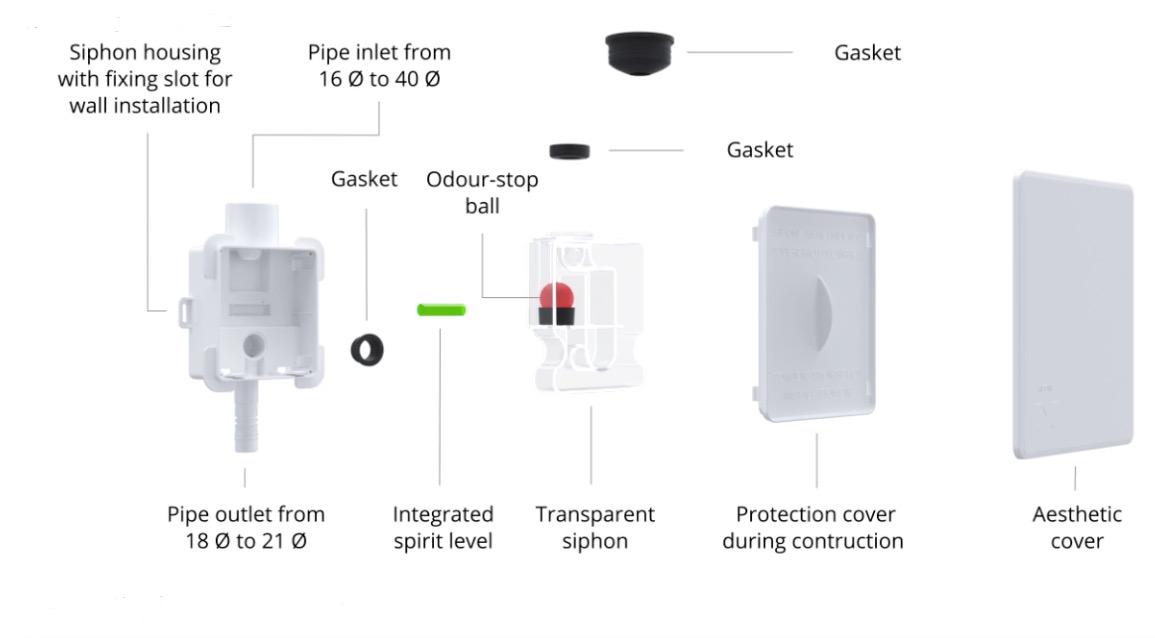

Included: Built-in level, sealing gaskets, protective cap, decorative cover
