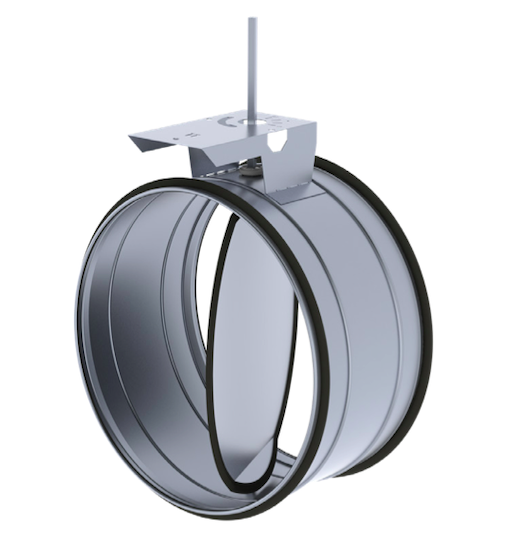

125 mm round shut-off and regulating damper with sealing gasket and motor / handle platform KRTS-4
€25.75
KRTS-4 125 round shut-off and regulating damper with sealing gasket – galvanized steel, airtight, and durable solution for precise airflow control in HVAC duct systems.
The KRTS-4 125 shut-off and regulating damper is designed for efficient air flow control and complete shut-off in round duct ventilation systems. Manufactured from galvanized steel and equipped with rubber gaskets, it offers Class C casing tightness and Class 4 shut-off tightness. Suitable for both manual handle operation and automatic motorized control, this damper delivers reliable performance in residential, commercial, and industrial HVAC applications.
Its robust construction ensures durability, while precise adjustment allows optimal ventilation balancing and energy efficiency.
Technical information:
Nominal diameter (mm): 125

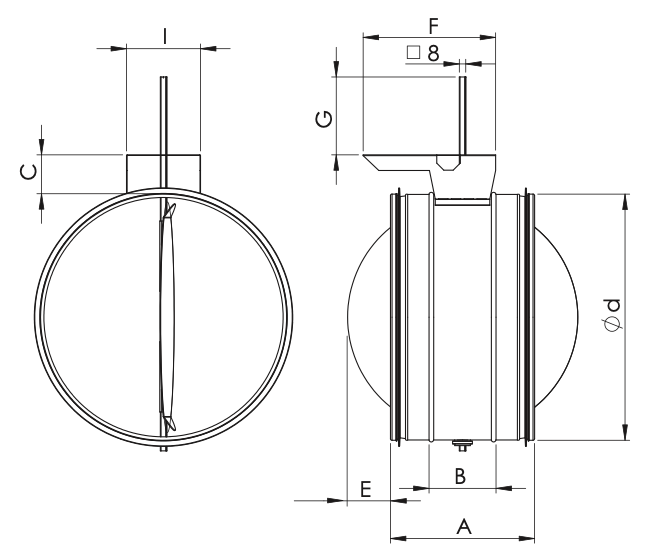

Dimensions (mm):
A: 155
B: 95
C: 38
F: 180
I: 95
G: 100
Weight (kg): 0.7 kg
Material: Galvanized steel
Tightness class: Casing Class C, Shut-off Class 4
Control options (not included in the package): Manual handle / Motorized actuator (CM24-R, CM230-R, TF24, TF230)
| Weight | 0.7 kg |
|---|---|
| Dimensions | 155 × 125 × 125 mm |
