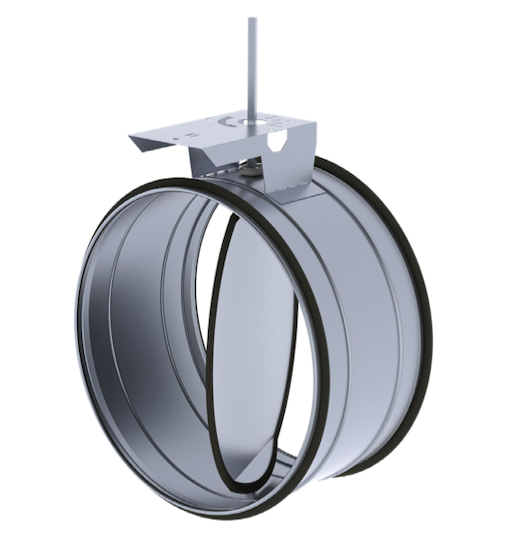

200 mm round shut-off and regulating damper with sealing gasket and motor / handle platform KRTS-4
€30.46
KRTS-4 200 round shut-off and regulating damper – airtight, durable, and efficient airflow control for commercial and residential HVAC systems.
airtight sealing in round duct systems. Constructed from galvanized steel with integrated rubber gaskets, it meets Class C casing tightness and Class 4 shut-off tightness standards. Suitable for manual or automated actuation, it is perfect for balancing and isolating duct sections in ventilation, heating, and air conditioning systems.

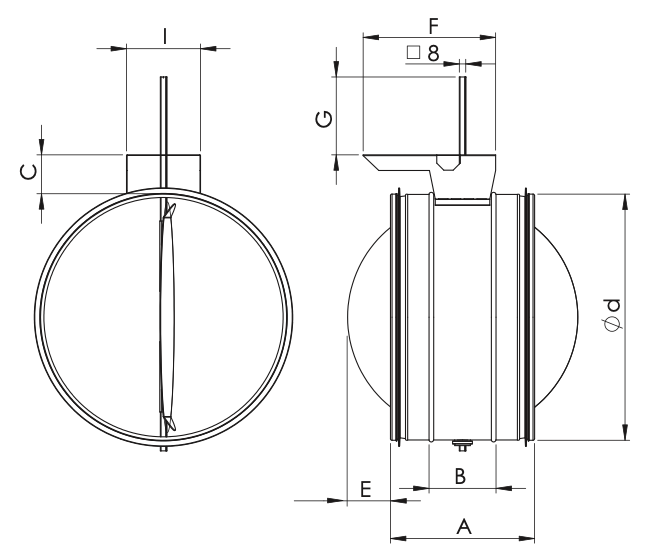

Technical information:
Nominal diameter (mm): 200
A: 155
B: 95
C: 46
E: 15
I: 180
F: 95
G: 116
Weight: 1.1 kg
Material: Galvanized steel
Tightness class: Casing Class C, Shut-off Class 4
Control options (not included in the package): Manual handle / Motorized actuator
| Weight | 1.1 kg |
|---|---|
| Dimensions | 155 × 200 × 200 mm |
| Product type | |
| Model | |
| Product diameter (mm) | |
| Product weight (kg) | |
| Manufacturer | |
| Country of origin |
