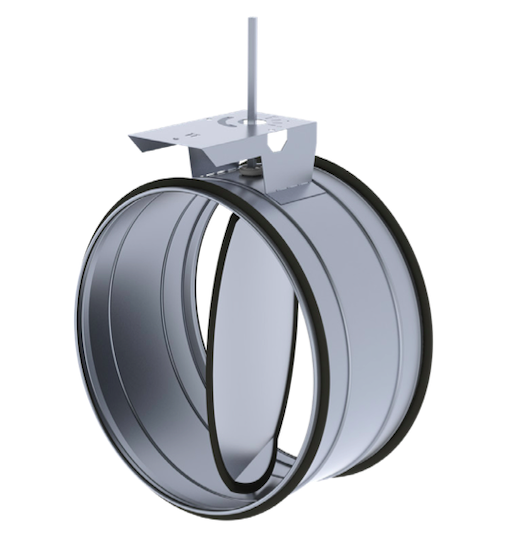

250 mm round shut-off and regulating damper with sealing gasket and motor / handle platform KRTS-4
€38.25
KRTS-4 250 airtight galvanized shut-off and regulating damper – manual or motorized airflow control for large round ducts.
Designed for large-diameter duct systems, the KRTS-4 250 regulating and shut-off damper provides accurate, reliable airflow control. Its galvanized steel body with rubber gaskets ensures long-lasting durability and airtight sealing (Casing Class C, Shut-off Class 4). Compatible with manual handles or motorized actuators, this damper is ideal for both commercial and industrial HVAC applications.
Technical information:

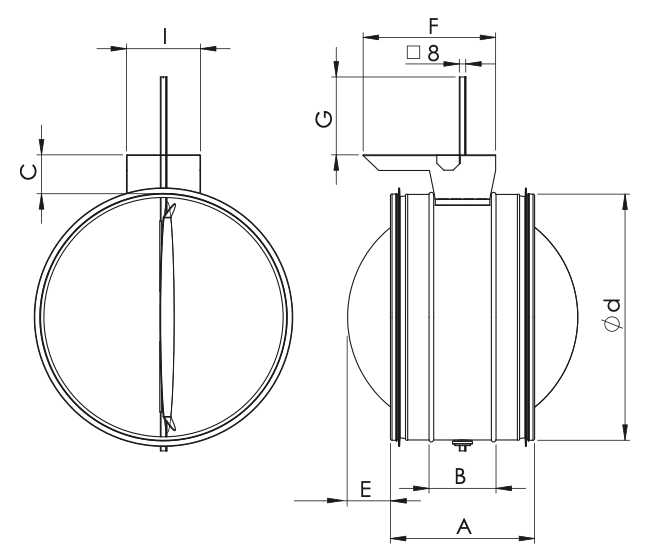

Nominal diameter (mm): 250
A: 215
B: 120
C: 23
E: 10
I: 225
F: 130
G: 113
Weight: 1.5 kg
Material: Galvanized steel
Tightness class: Casing Class C, Shut-off Class 4
Control options (not included in the package): Manual handle / Motorized actuator
| Weight | 1.5 kg |
|---|---|
| Dimensions | 215 × 250 × 250 mm |
| Product type | |
| Model | |
| Product diameter (mm) | |
| Product weight (kg) | |
| Manufacturer | |
| Country of origin |
