500 mm round shut-off and regulating damper with sealing gasket and motor / handle platform KRTS-4
€70.80

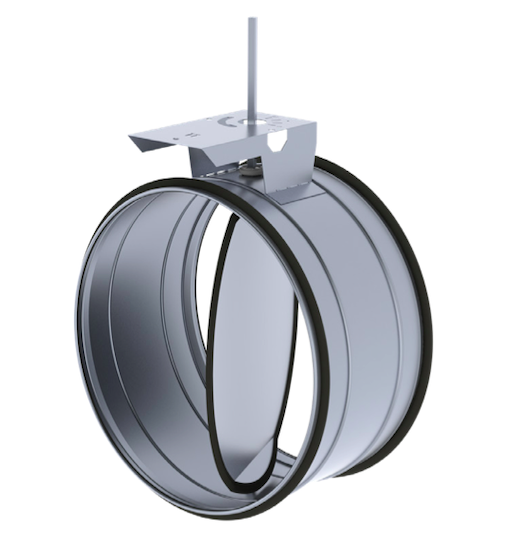

KRTS-4 500 round galvanized shut-off and regulating damper with sealing gasket – robust, airtight solution for high-capacity HVAC duct airflow control.
KRTS-4 500 shut-off and regulating damper with sealing gasket is designed for high-capacity ductwork in ventilation, heating, and cooling systems. With its galvanized steel body, rubber gaskets, it offers airtight performance and durability. Suitable for both manual and automatic control, ensuring flexibility in installation and operation.

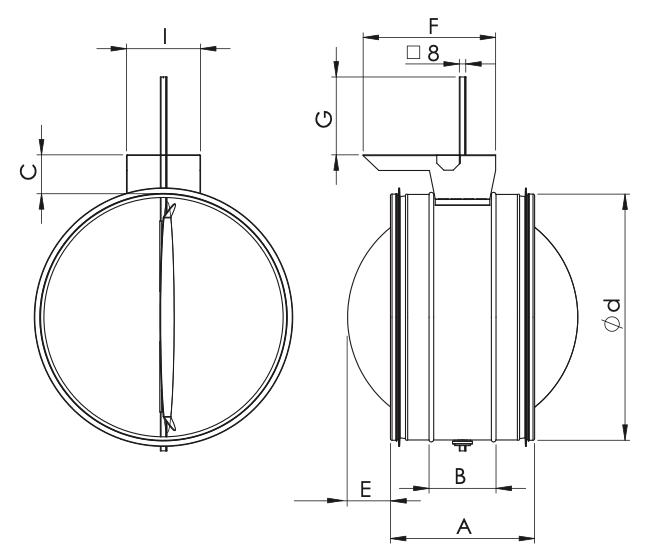

Technical information:
Nominal diameter (mm): 500
A: 255
B: 130
C: 40
E: 115
I: 225
F: 130
G: 108
Weight: 4.7 kg
Material: Galvanized steel
Tightness class: Casing Class C, Shut-off Class 4
Control options (not included in the package): Manual handle / Motorized actuator
| Weight | 4.7 kg |
|---|---|
| Dimensions | 255 × 500 × 500 mm |
| Product type | |
| Model | |
| Product diameter (mm) | |
| Product weight (kg) | |
| Manufacturer | |
| Country of origin |
