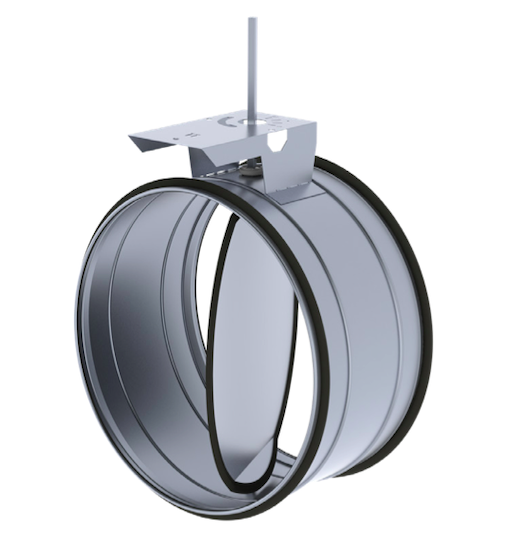

630 mm round shut-off and regulating damper with sealing gasket and motor / handle platform KRTS-4
€79.98
KRTS-4 630 industrial HVAC damper – galvanized steel, airtight sealing, manual or motorized airflow regulation for extra-large ducts.
The KRTS-4 630 shut-off and regulating damper with sealing gasket delivers reliable airflow regulation for extra-large duct ventilation systems. Built from galvanized steel and fitted with rubber gasket, it achieves airtight sealing. Compatible with both manual handles and motorized actuators, it is ideal for heavy-duty HVAC installations. Round dampers are an essential tool for airflow control and ventilation system adjustment.

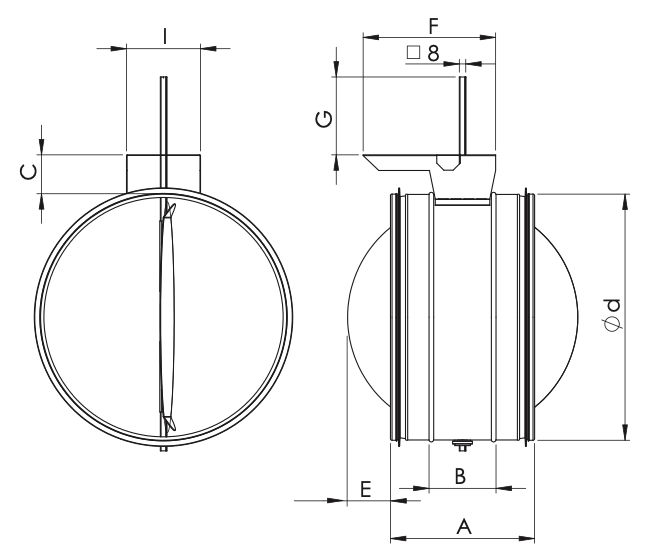

Technical information:
Nominal diameter (mm): 630
A: 255
B: 130
C: 43
E: 180
I: 225
F: 130
G: 107
Weight: 6.3 kg
Material: Galvanized steel
Tightness class: Casing Class C, Shut-off Class 4
Control options (not included in the package): Manual handle / Motorized actuator
| Weight | 6.3 kg |
|---|---|
| Dimensions | 255 × 630 × 630 mm |
| Product type | |
| Model | |
| Product diameter (mm) | |
| Product weight (kg) | |
| Manufacturer | |
| Country of origin |
