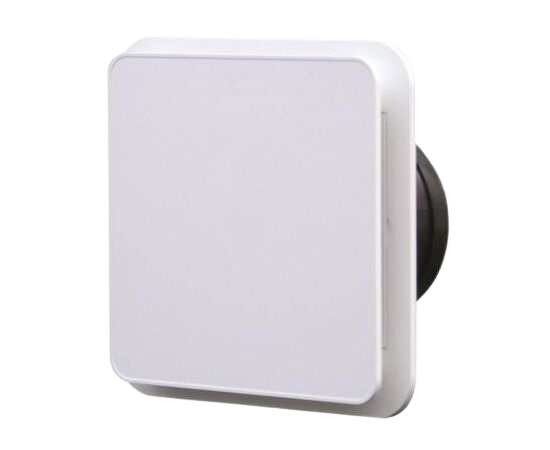

BDOP 125 exhaust-supply air valve Ø125mm Soler&Palau

The Soler & Palau BDOP 125 supply and exhaust air valve Ø125mm is an efficient and durable diffuser engineered to deliver even air distribution across any room. This versatile ventilation valve ensures optimal airflow balance in both supply and exhaust systems, maintaining a comfortable indoor environment in residential and commercial spaces.

Designed by Soler & Palau, the white BDOP 125 air diffuser fits ventilation systems – single-direction or dual (variable) airflow. When functioning as a supply valve, it enables precise adjustment of both airflow direction and distance for maximum comfort and efficiency. The airflow can be controlled in four different directions, allowing for accurate air management based on room layout. Can be equipped with an airflow regulator on the sleeve.

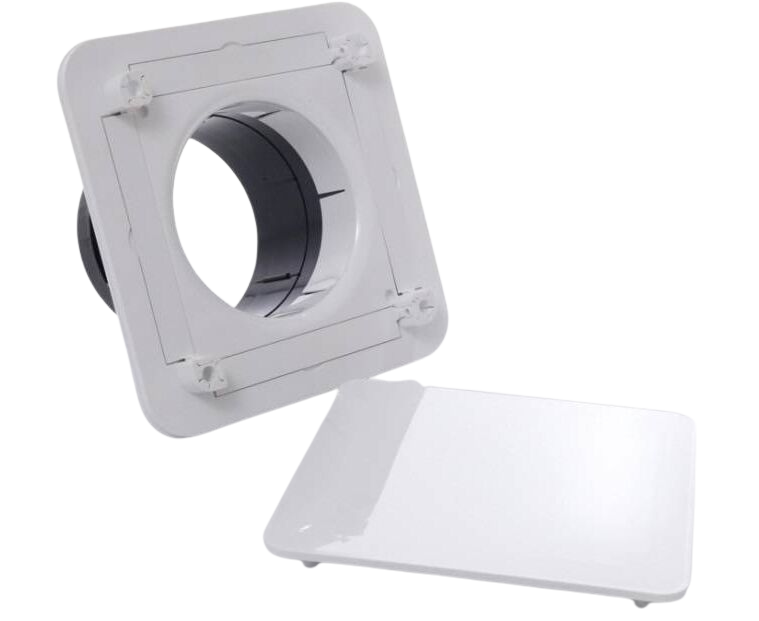

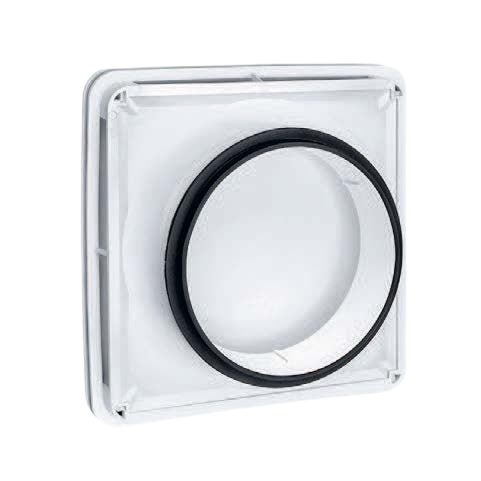

The BDOP 125 model combines the features of the original BDO diffuser and introduces a connection sleeve with anchors, making installation in plasterboard ceilings quick and secure. Manufactured from high-quality plastic, both the valve body and connector are lightweight yet durable. This diffuser can also be fitted with an internal airflow regulator, giving users more control over ventilation intensity.

With its low operational noise, simple installation, and sleek white finish, the Soler & Palau BDOP 125 supply and exhaust air valve is an excellent choice for bathrooms, kitchens, offices, and other interior spaces requiring reliable air circulation.

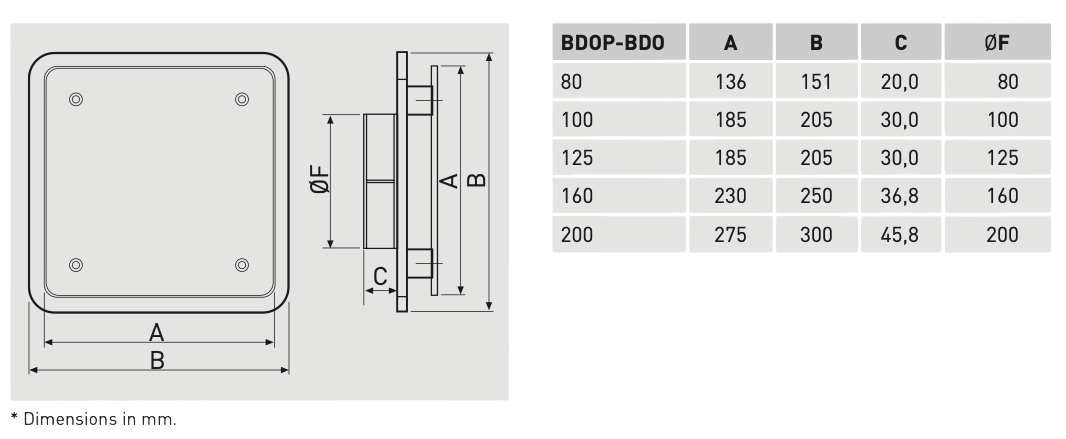

Technical Information:
Connection diameter Ø : 125 mm
Outer body width: 205 mm
Outer body height: 205 mm
Connection ring depth: 30 mm
Airflow: 45-150 m3/h
Color: White
Material: Plastic body / plastic connection ring
Installation type: ceiling

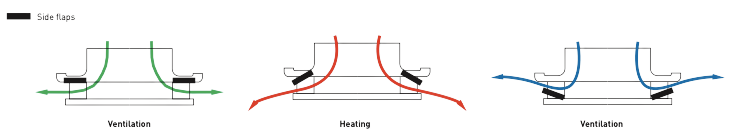

Adjustment possibilities of the side flaps
Possible to change airflow direction
