BDOP 200 exhaust-supply air valve Ø200mm Soler&Palau
€41.59
Soler & Palau BDOP 200 supply and exhaust air valve Ø200mm – durable, quiet, and adjustable diffuser for modern ventilation systems in homes and offices.

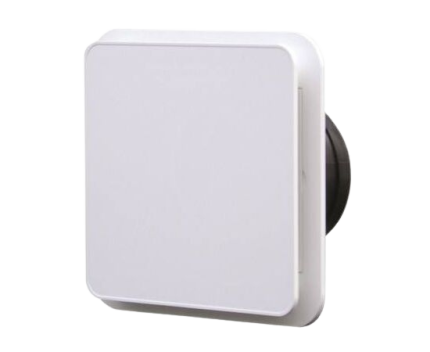

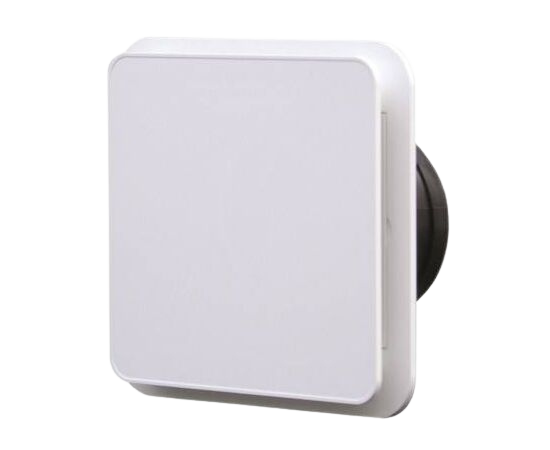

The Soler & Palau BDOP 200 supply and exhaust air valve Ø200mm is a high-quality component designed for efficient air distribution in ventilation systems. This white, square-shaped plastic air valve ensures a smooth and balanced airflow, improving indoor air quality and overall comfort.
Perfect for both residential and commercial applications, the BDOP 200 air valve supports single-direction or dual (variable) airflow systems. When installed as a supply vent, it allows precise adjustment of the airflow direction and distance in four directions, offering flexibility for optimal air circulation.
Manufactured from durable plastic with a metal connection sleeve, the BDOP 200 combines strength with a clean, aesthetic design. The valve is quick and easy to install, suitable for ceiling mounting, and can be equipped with an optional airflow regulator inside the duct. Thanks to its low noise level and long-lasting performance, it’s ideal for bathrooms, kitchens, offices, and living spaces. Made in Spain to the highest manufacturing standards.

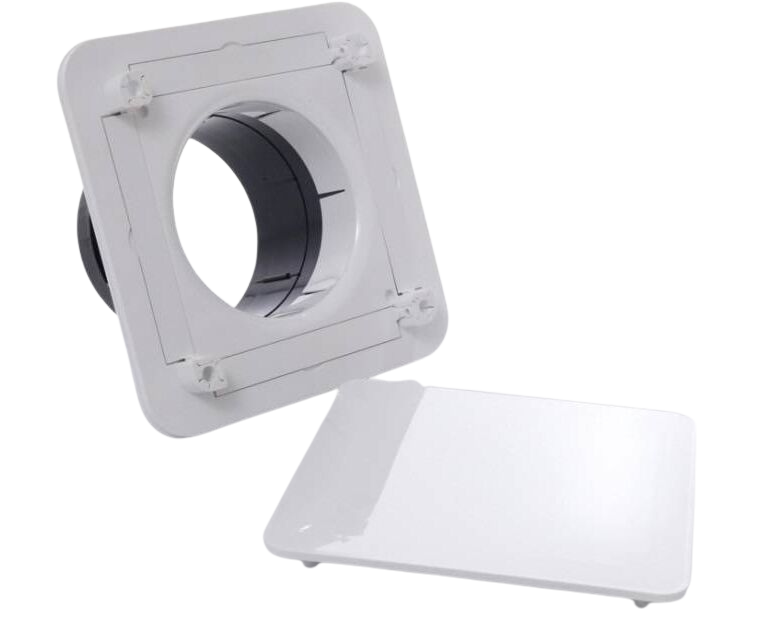

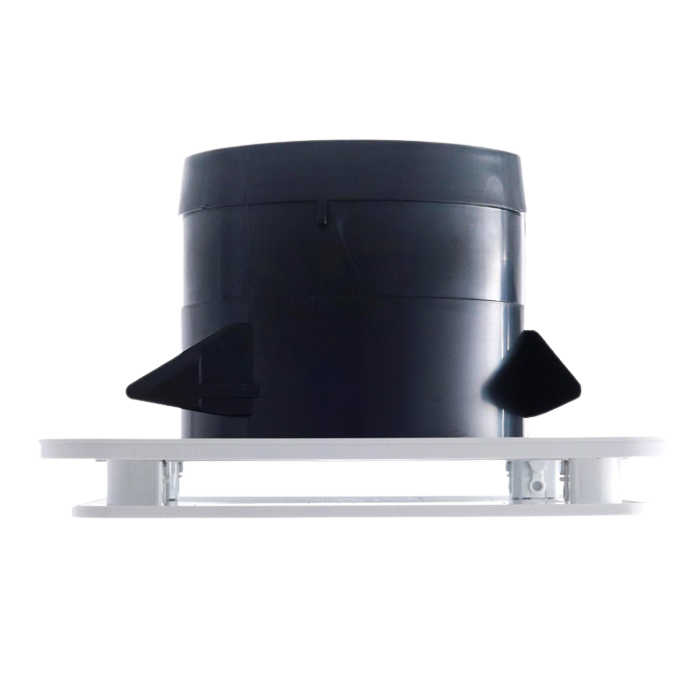

The Soler & Palau BDOP model includes the features of the BDO model and adds a connection sleeve with anchors for plasterboard installation.
Technical Information:

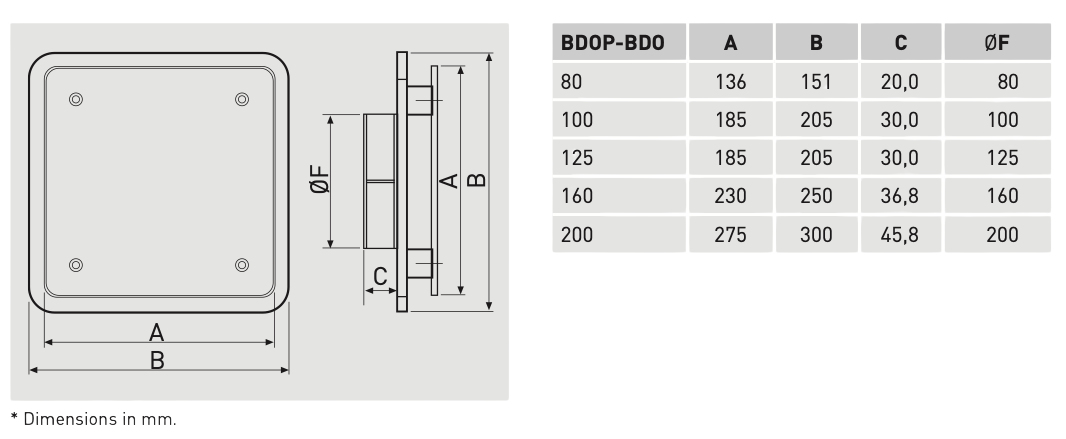

Connection diameter Ø : 200 mm
Outer body width: 300 mm
Outer body height: 300 mm
Connection ring depth: 45.8 mm
Airflow: 240-350 m3/h
Color: White

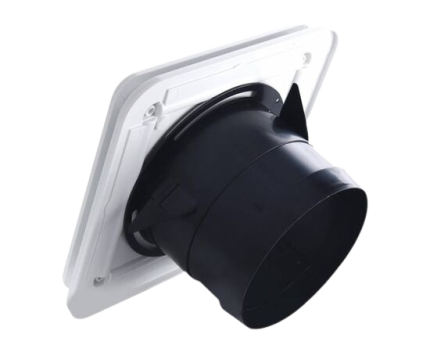

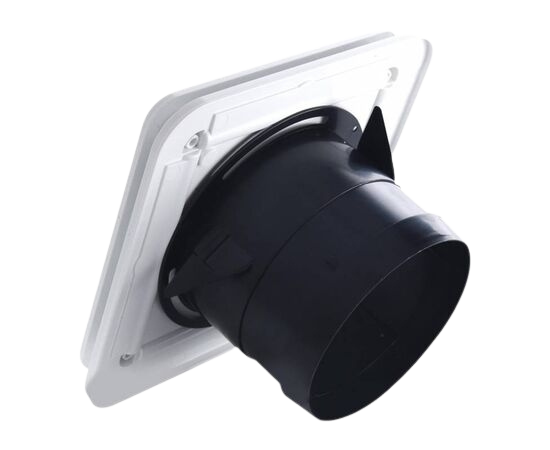

Material: Plastic body / metal connection ring
Installation type: ceiling

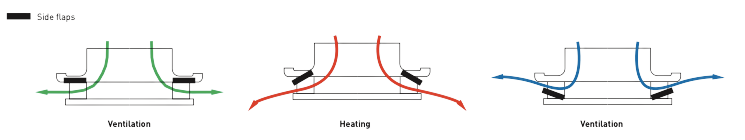

Adjustment possibilities of the side flaps

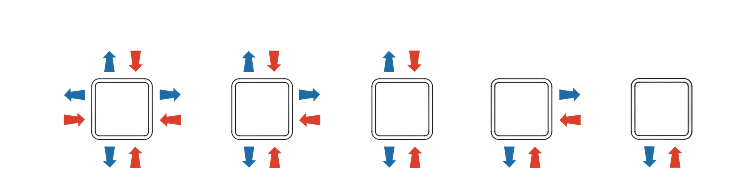

Possible to change airflow direction
| Weight | 1.1 kg |
|---|---|
| Dimensions | 70 × 300 × 300 mm |
| Product type | |
| Connection diameter (mm) | |
| Brand | |
| Manufacturer |
