Water filter characteristics:
• 5-stage purification – mechanical (x2), activated carbon (x2), reverse osmosis
• High flow rate – 1 liter per minute
• Purifies from chemical and biological pollution
• Touch keys operation design, add intelligent service life reminder function for filter elements.
• Quiet, compact, easy to use

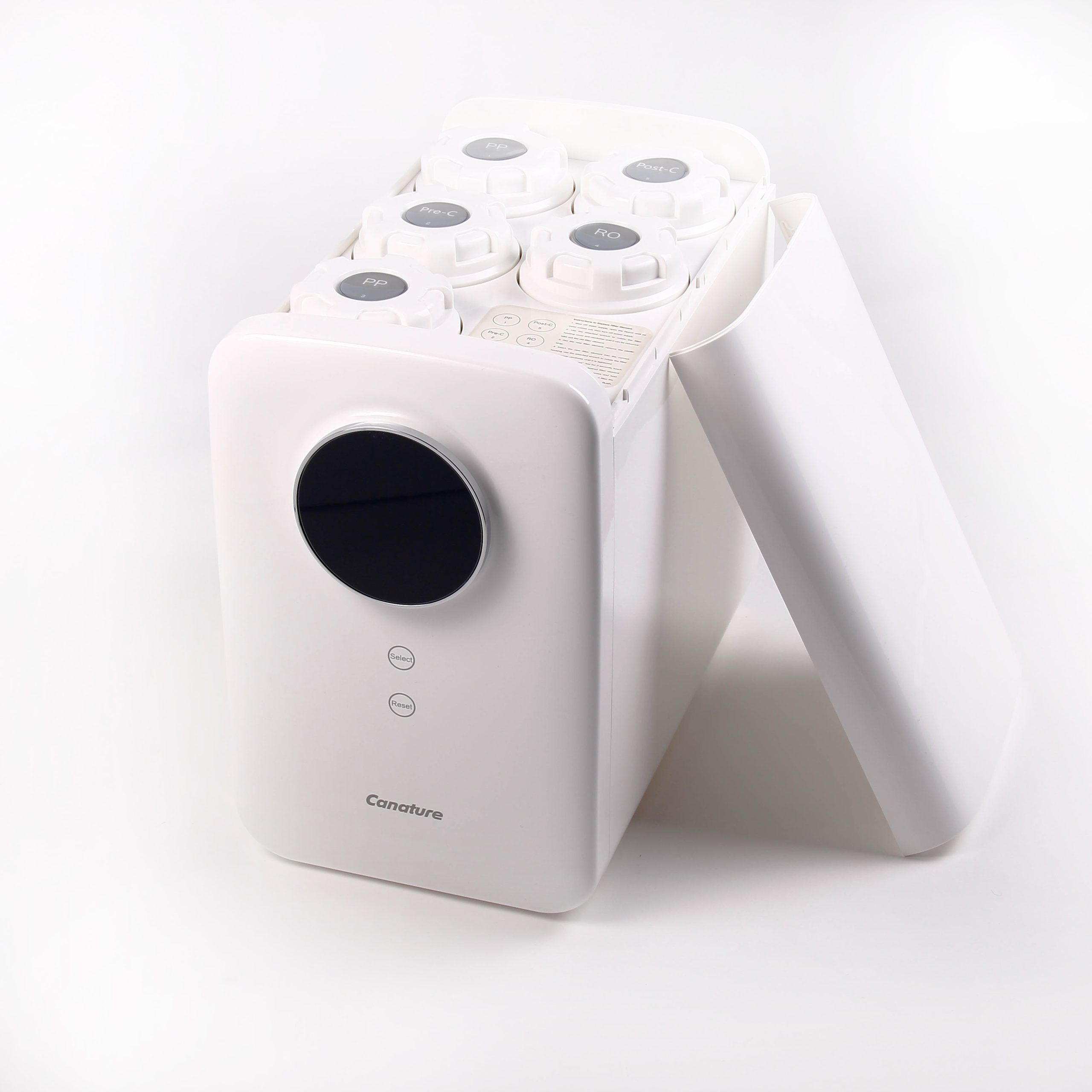

• Easy to service – easily replaceable elements
• High-quality and durable cover and filtering elements
• Easy to install
• Low operating costs – variable elements serve for a long time
• Connection to electricity, water, and sewage is required
• The output of the device varies depending on the water temperature and pollution
• Element replacement frequency depends on water consumption
• The system will stop working automatically as the leakage is detected, and the smart display will continue flashing along with an alarm sound beeping.

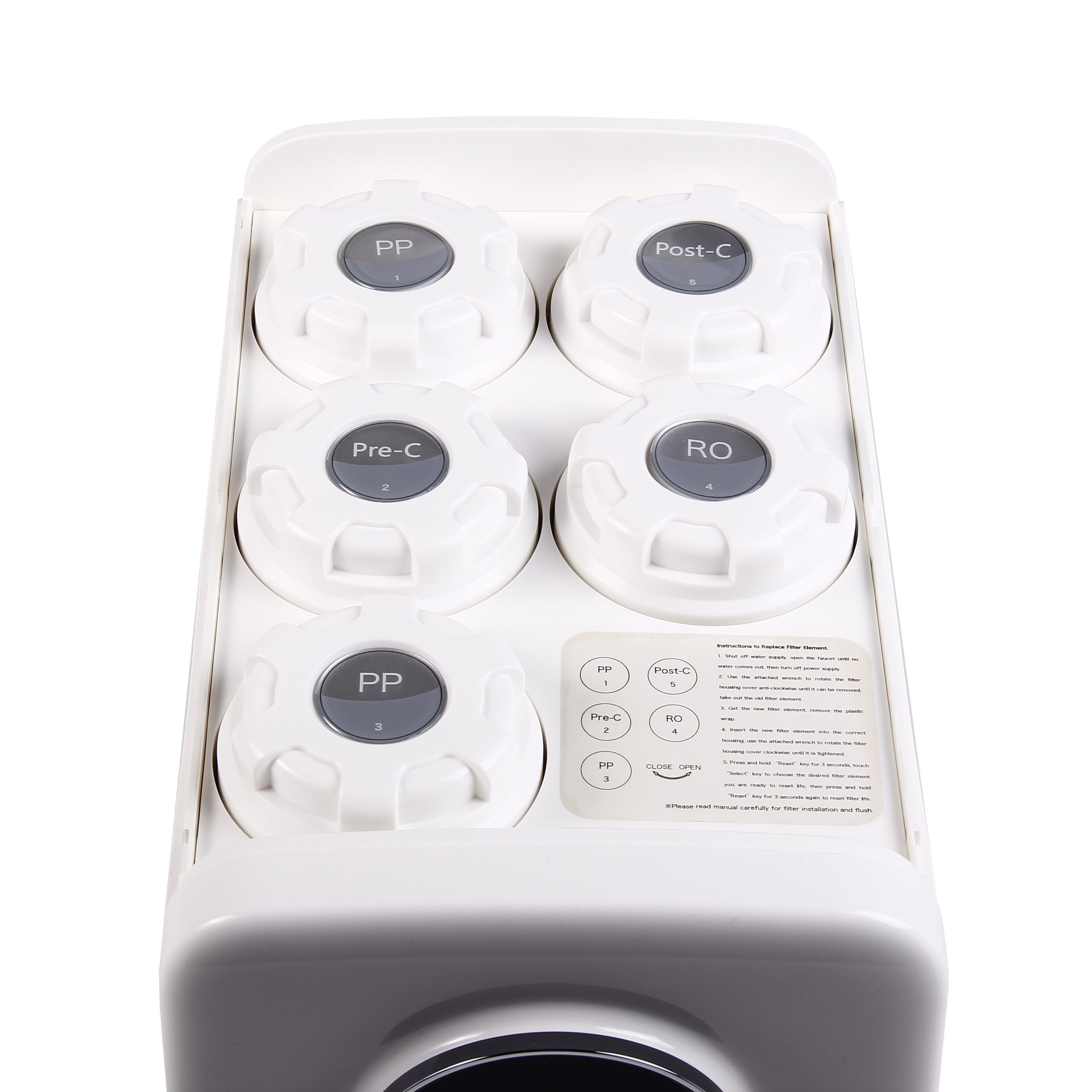

5-STAGE WATER TREATMENT
1. The polypropylene cartridge – performs the protecting function of the reverse osmosis membrane from mechanical particles (filters out deposits, rust, turbidity, suspended particles, and other sediment impurities).
2. Carbon cartridge – for protection of reverse osmosis membrane from the removal of free chlorine and organic compounds, flavors, smells, and colors.
3. Polypropylene Cartridge – for protection of the osmosis membrane from activated carbon dust and to prolong its life service.
4. The reverse osmosis membrane – the basic element of water purification. Cleans drinking water from scale, bacteria, viruses, organic matter, colloids, pesticides, radioactive particles, microbes, algae, heavy metals, and dissolved minerals.
5. Carbon post-filter – designed to improve the organoleptic characteristics issued on water consumption.

MODEL: CR-UX1-400G

Water Supply: Municipal Water
Feed Line Pressure (bar): 1 – 4
Flow Rate (L/min): 1.04
Salt Reduction (%): 96
Recovery Rate (%): ＞50
Water Temperature (℃): 5~38

Ambient Humidity (%): ≤90
Noise Level (dB): < 55
Power Consumption (W): 60
Membrane Type: Thin-Film Composite Membrane
Membrane Capacity (GPD – Gallons Per Day): 400
Membrane Model: Model3012-400-NPI

Connections:

• Unit: 3/8” Quick Connect
• Faucet: 3/8” Quick Connect
• Drain: 3/8” Quick Connect
• Transformer: Quick-connect power cable

Included in the Package: Faucet and installation kit
Product Dimensions: 392 × 235 × 373 mm

*Salt rejection and product flow are variable and can be affected by temperature and feed water conditions.

SET INCLUDES

Filter for purification of drinking water

Tap for drinking water

Materials for the installation

Instructions for installation and use

HOW OFTEN EXCHANGE ELEMENTS

1-3: degree of purification (meh. filter + carbon + meh. filter) once in 6 -12 months.

4: reverse osmosis membrane once in 2 years or after flow reduction.

5: carbon post-filter element once a year.

Element replacement frequency depends on water consumption and incoming water quality.

The quality of all equipment components and their testing methods, fully compliant with the NSF (National Science Foundation) requirements to ensure high effectiveness in the long term.
