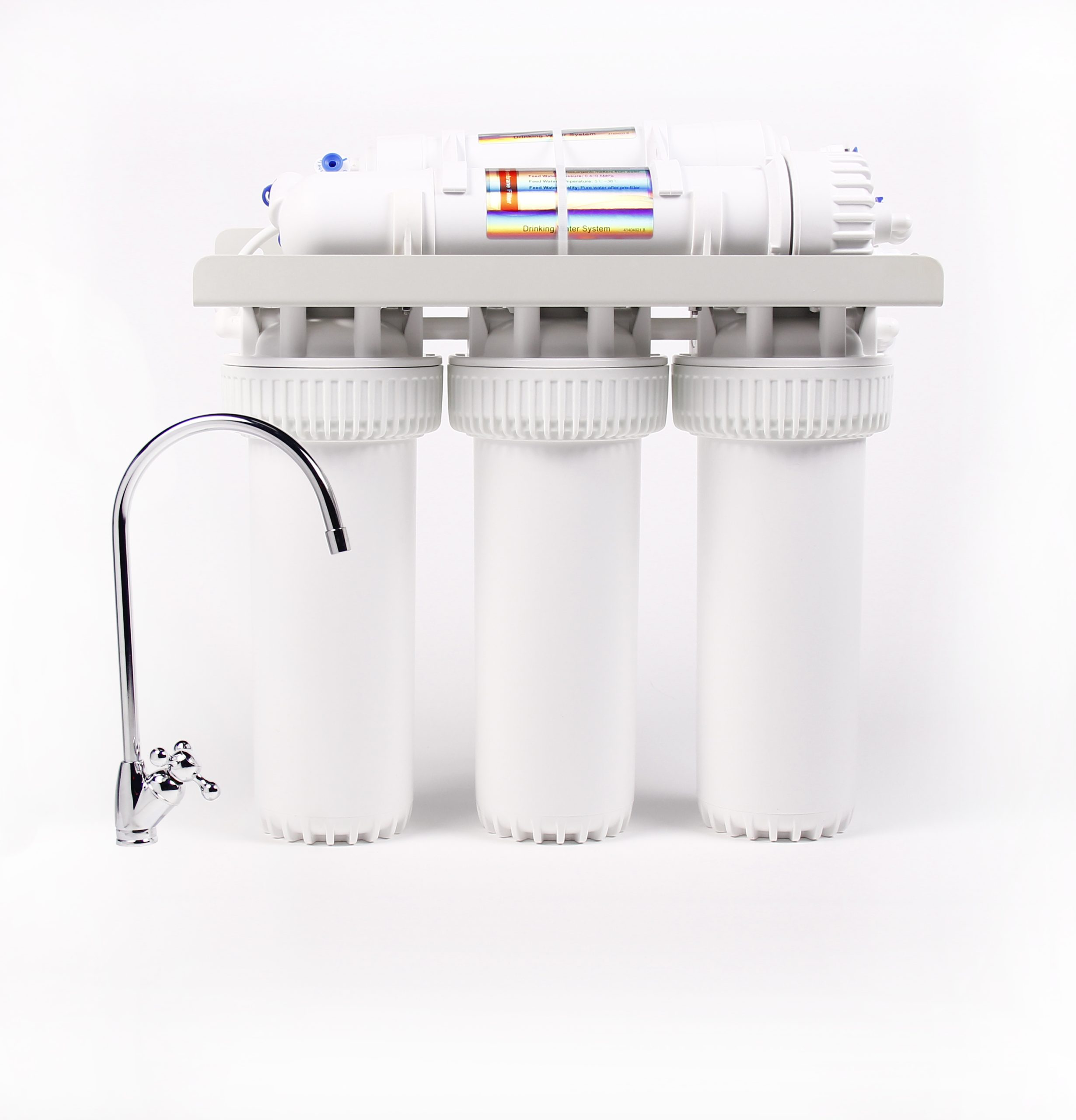

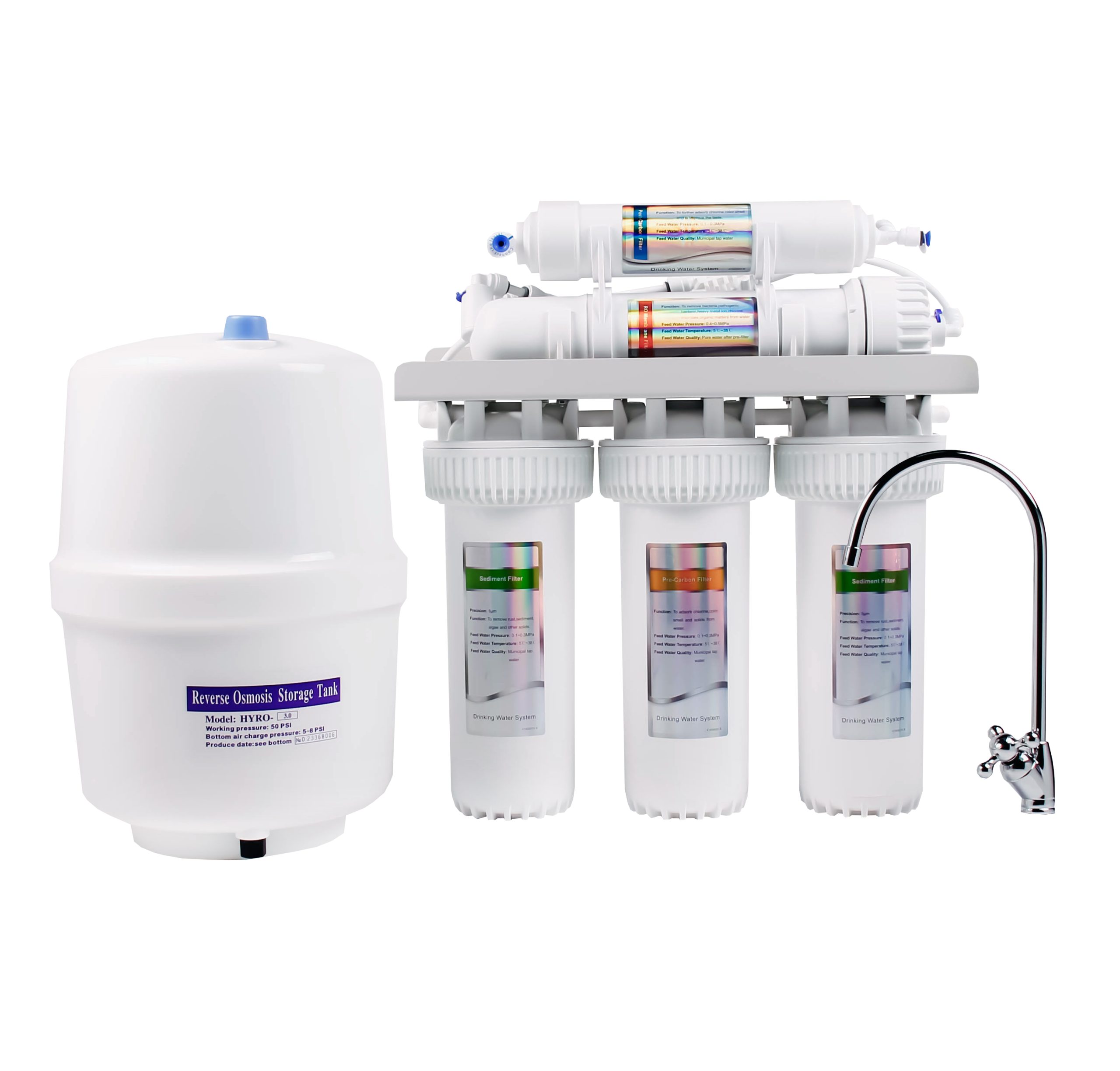

CANATURE RO75GPD (290 liters/day) drinking water filter

Water filter characteristics:
• Easy maintenance – easy replaceable elements, quick connection technology
• High quality and strength of body, connections and filter elements
• Easy to install in kitchen cabinet under the sink
• Long-term investment – ten years or more
• Low operating costs – variable elements serve for long time

5-STAGE WATER TREATMENT
1. The polypropylene cartridge (5μm) – performs protecting function of the reverse osmosis membrane from mechanical particles (sand, scale, rust and sediment).
2. Carbon cartridge – for protection of reverse osmosis membrane from the removal of free chlorine and organic compounds, flavours, smells, colours.
3. Polypropylene Cartridge (1 µm) – for protection of osmosis membrane from activated carbon dust and to prolong its life service.
4. The reverse osmosis membrane (pore diameter 0,0001μm) – the basic element of water purification. Cleans drinking water from scale, bacteria, viruses, organic matter, colloids, pesticides, radioactive particles, microbes, algae, heavy metals and dissolved minerals.
5. Carbon post-filter – designed to improve the organoleptic characteristics issued on water consumption.
In addition, a mineralizer can be installed to raise the pH level and enrich it with minerals.

Configuration: Without pump
System Capacity*: 12 liters/hour, 290 liters/day
Incoming Water Pressure: 2.4 – 4 bar
Incoming Water Requirements: Centralized water supply system or de-ironed underground water
Required Connections: Water supply, drainage
System Dimensions (L × W × H): 420 × 160 × 460 mm
Purified Water Tank Size: Diameter 240 mm × Height 350 mm
Filter Weight (empty): 8.5 kg
Purified Water Volume in Tank: ~5 liters
Power Consumption: 0
Membrane Flush Water Ratio – Pure:Flush**: 1:3
* Equipment flow rate depends on the incoming water pressure, temperature and salt concentration.
** Rinse volume to sewage decreases at higher input pressure.

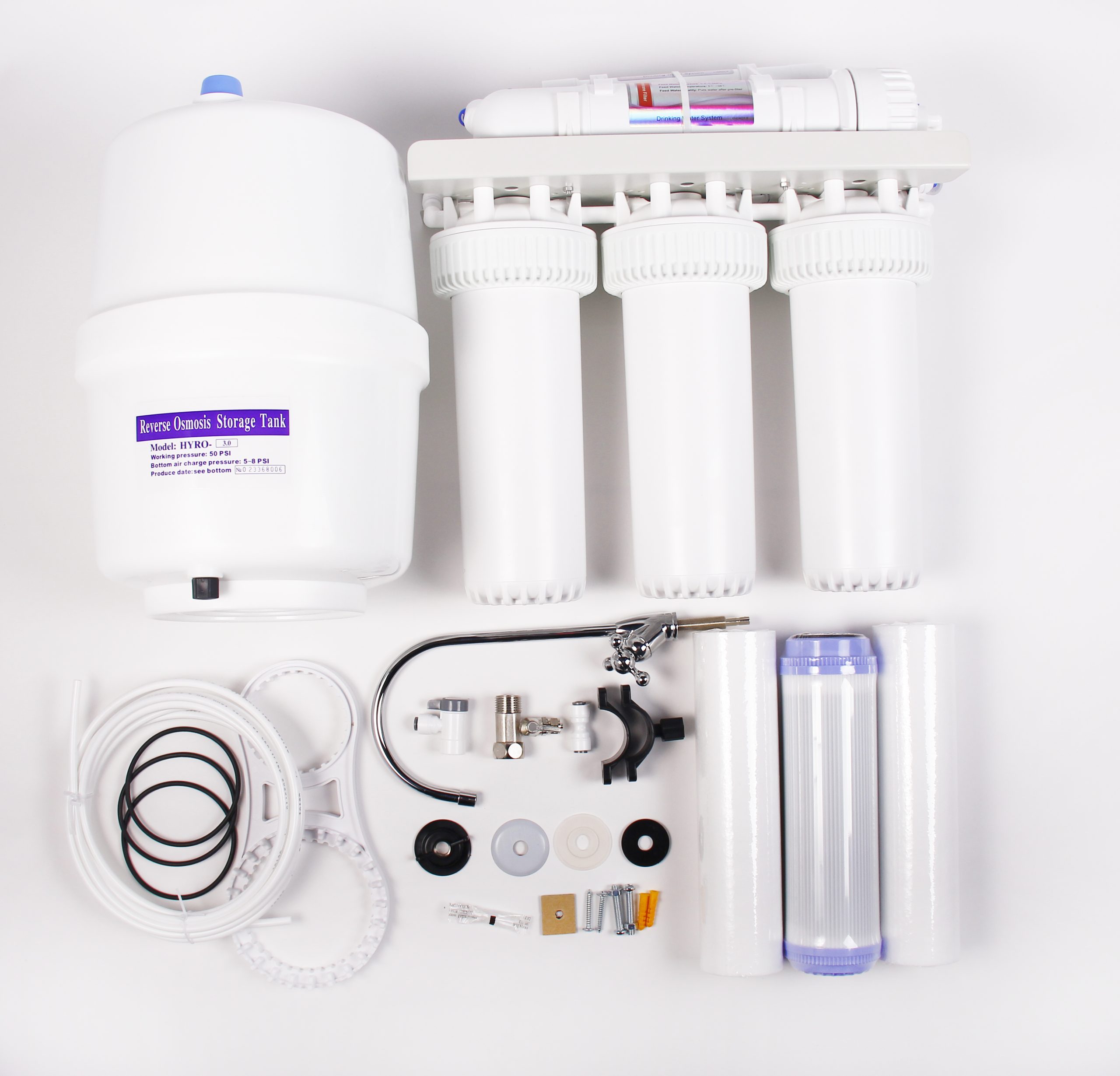

SET INCLUDES
• Filter for purification of drinking water
• The tank for purified water (8 litres)

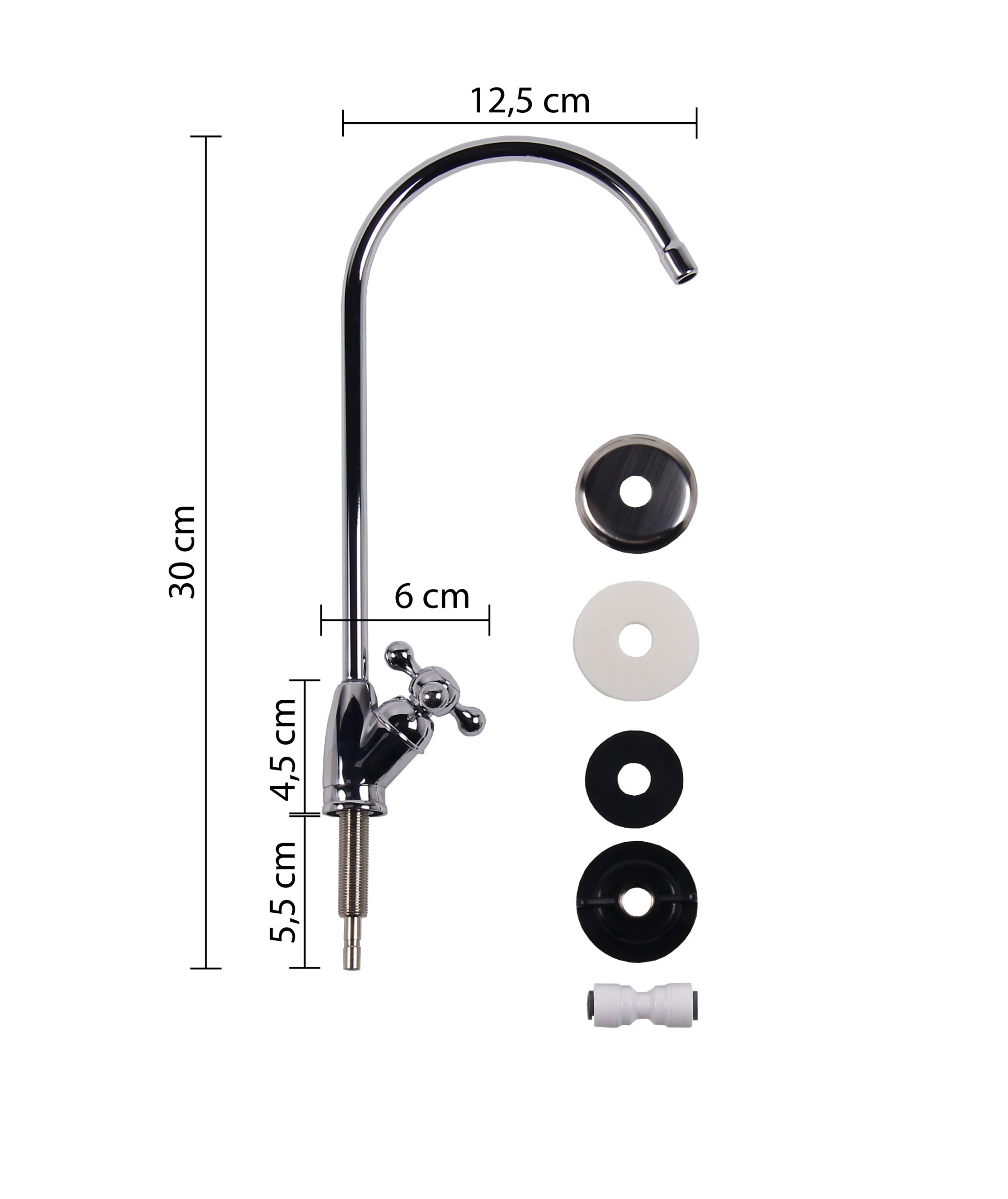

• Tap for drinking water
• Key for the installation of the filter
• Materials for the installation
• Instructions for installation and use

HOW OFTEN EXCHANGE ELEMENTS
1-3: degree of purification (meh. filter 5 µm + carbon + meh. filter 1 µm) once in 6 -12 months.
4: reverse osmosis membrane once in 2 years or after flow reduction.
5: carbon post-filter element once a year.
Element replacement frequency depends on the water consumption and incoming water quality.
The quality of all equipment components and their testing methods, fully compliant with the NSF (National Science Foundation) requirements to ensure high effectiveness in the long term.
