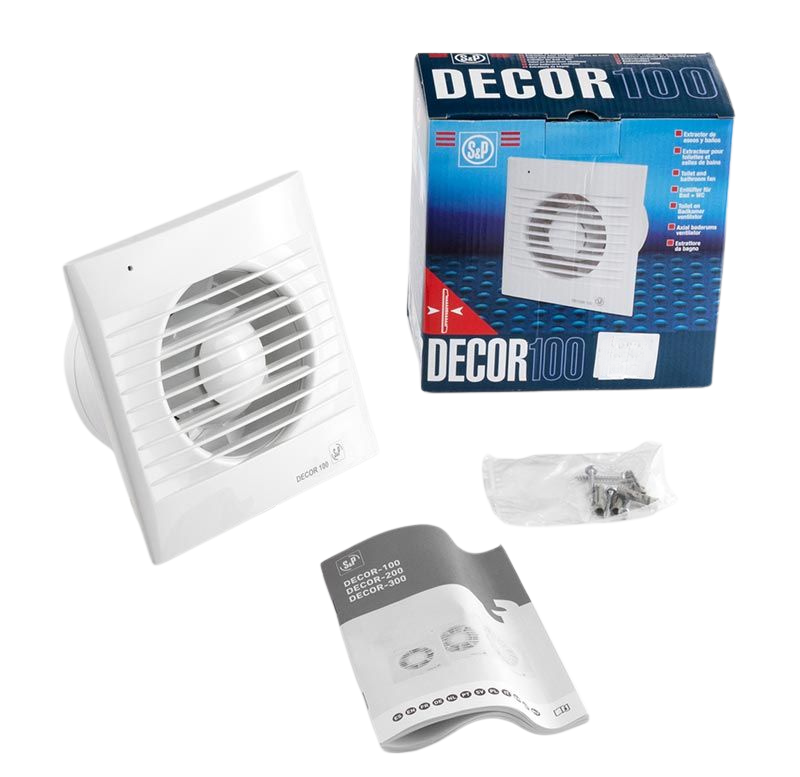

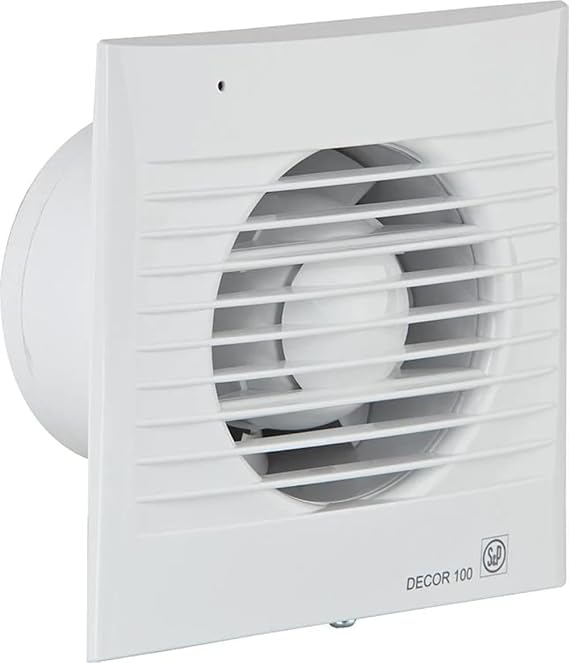

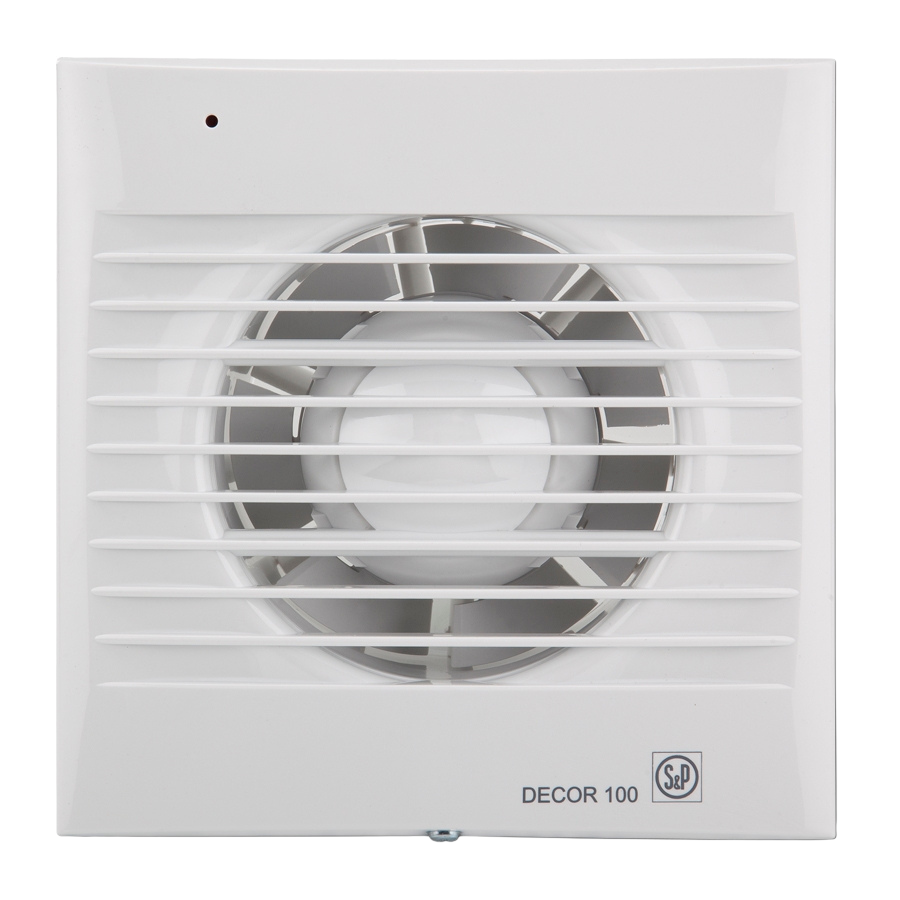

DECOR-100 CR Soler&Palau bathroom extract fan with timer

The Soler&Palau DECOR-100 CR is a reliable 100mm axial bathroom and WC extract fan designed for efficient moisture and odour removal in domestic spaces.

Equipped with an adjustable timer (1–30 minutes), this domestic extractor fan can continue operating after the wall switch is turned off, ensuring proper ventilation and reduced humidity.

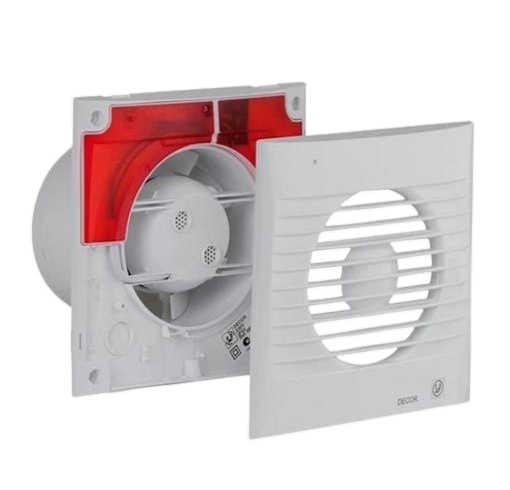

The timer setting is adjusted directly on the PCB once the slim front grille is removed.

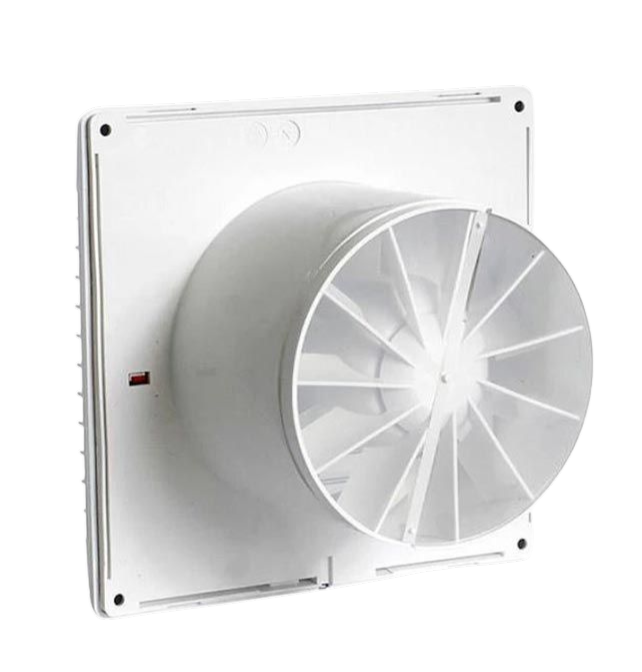

Delivering a 95 m³/h airflow rate, the DECOR-100 CR features an automatic backdraft shutter to prevent reverse airflow and heat loss, a neon indicator light, Class II insulation and an IPX4 protection rating.

Its single-phase 230V motor includes thermal overload protection and is suitable for continuous operation in temperatures up to +40°C.

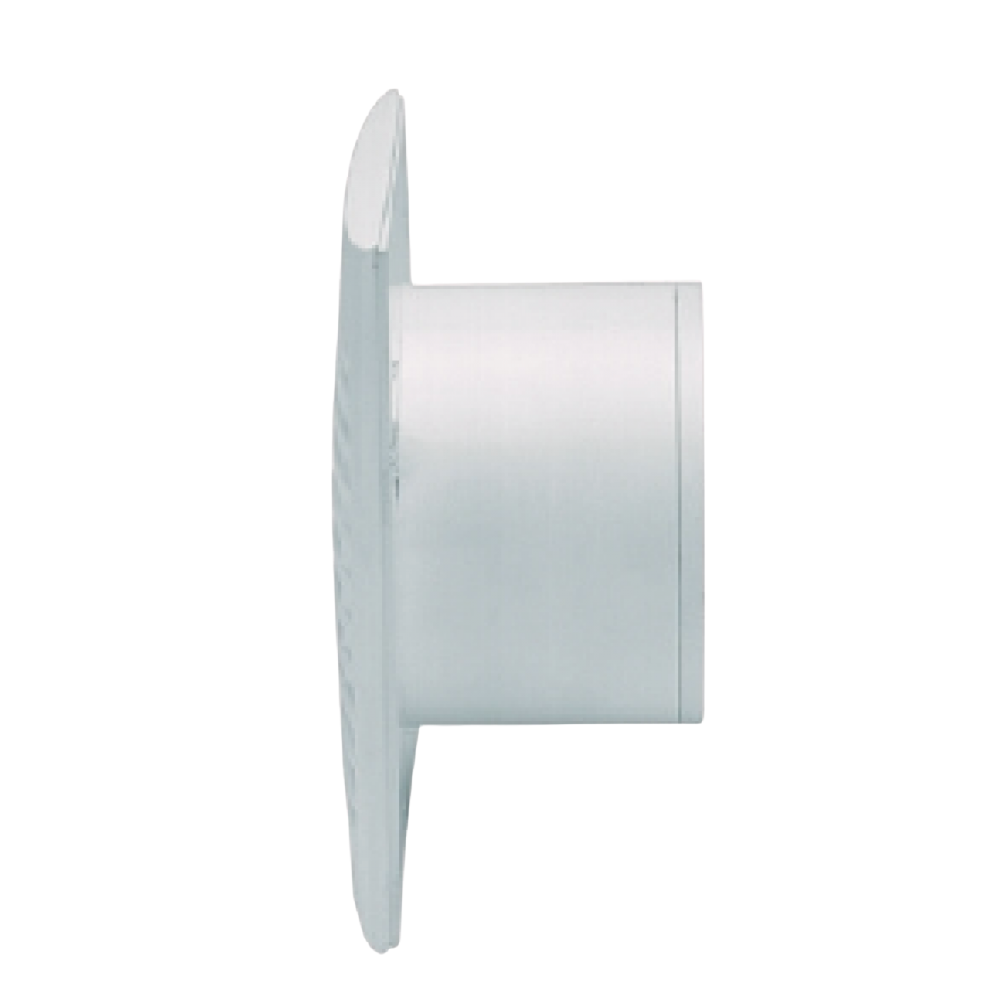

Made from durable plastic with a stylish low-profile design, this bathroom extract fan blends seamlessly into any interior.

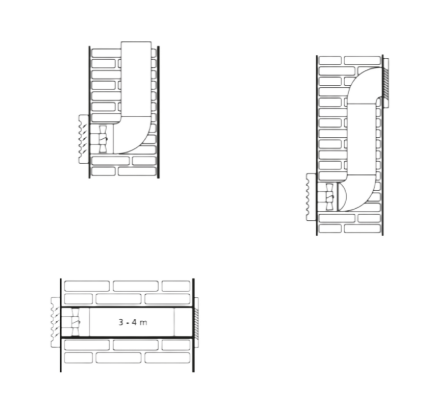

Easy to install on a wall or ceiling, the DECOR-100 CR is a dependable, energy-efficient ventilation solution for modern bathrooms and toilets.

Made in Spain.

TECHNICAL INFORMATION:
Connection diameter Ø: 100 mm
Functions: adjustable timer (1-30min)
Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
Frequency: 50 Hz
Voltage: 230 V
Insulation class: Class II
Motor class: B
Temperature range: 0 to +40 ºC
IP rating: IPX4
Height: 158 mm
Width: 158 mm
Depth: 85 mm
Weight: 0.44 kg
Color: white
Material: Plastic
