Greendec 200 mm / 1.0 m flexible antibacterial sound attenuating air duct
€55.54

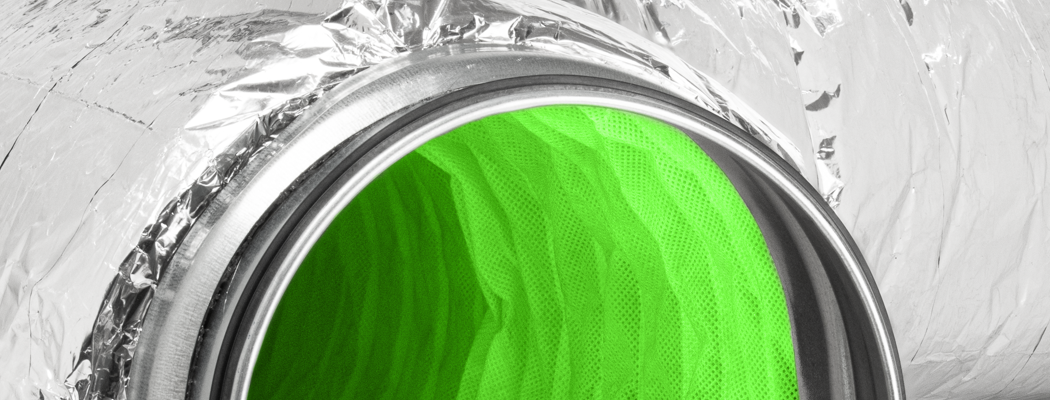

The Connectdec type Greendec Non-woven consists of an inner tube made of polypropylene fabric, protected with the antimicrobial Sanitized hygiene function to reduce bacterial growth, it reduces odor-causing bacteria and protects the material permanently for peace of mind and more freshness.
The attenuator inner tube is protected with the antimicrobial Sanitized hygiene function to reduce microbial growth and unpleasant odors on the surface.
Description
APPLICATION
Cleanrooms
Hospitals
Heat recovery units
Air-conditioning systems
Air supply systems
Preventing condensation in air ventilation systems
ALL HVAC systems
TECHNICAL INFORMATION:
Diameter Ø: 200 mm
Length: 1.0 m
Glass wool insulation: 25 mm
Temperature range (inner): -30°C to +90°C
Temperature range (outer): -30°C to +140°C
Maximum pressure: 2000 Pa
Operating air velocity: max 30 m/s
CONSTRUCTION:
Inner duct: non-woven polypropylene cloth
Glass wool blanket: 25 mm, 16kg/m³
Sleeves: galvanized steel
Outer jacket: aluminum/polyester laminate
Appearance: aluminum
Additional information
| Weight | 2.19 kg |
|---|---|
| Dimensions | 580 × 320 × 320 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Product diameter (mm) | |
| Product length (m) |
