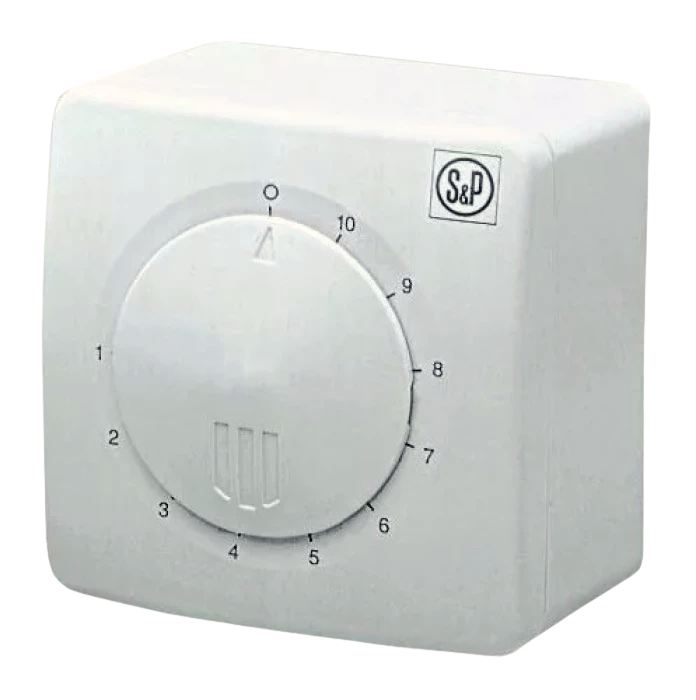

REB-1 N single-phase speed controller Soler&Palau (with wall box)

– The Soler&Palau REB-1 N is an electronic single-phase fan speed switch in wall box designed for wall-mount.

– The controller is equipped with a multifunctional rotary knob that combines ON/OFF switching and smooth speed adjustment.

– To ensure safe and stable performance, the REB-1 includes fuse protection.

– The integrated minimum speed adjustment function helps maintain consistent fan operation, preventing motor strain and improving energy efficiency.

– Manufactured from durable ABS box, the REB-1 is built for long-lasting, safe operation and meets Class II insulation and IP44 protection standards.

– Suitable for both residential and light-commercial environments, this controller is an effective and easy-to-use solution for managing single-phase ventilation fans while maintaining a clean, wall-mounted appearance.

TECHNICAL INFORMATION:
Height: 80 mm
Width: 80 mm
Depth: 68 mm
Maximum current: 1 A
Minimum current: 0.15 A
Temperature range: 0 to +40 ºC
Power: 220 VA
Insulation class: Class II
IP rating: IP44
Frequency: 50 Hz
Voltage: 220-240 V
Mounting type: surface-mounted
Color: white
Material: plastic, other
Fuse protected + spare fuse included.
Minimum speed adjustment.
Single ON/OFF and speed regulation control knob.
