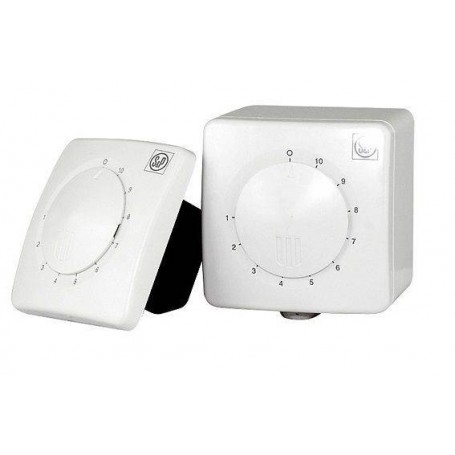

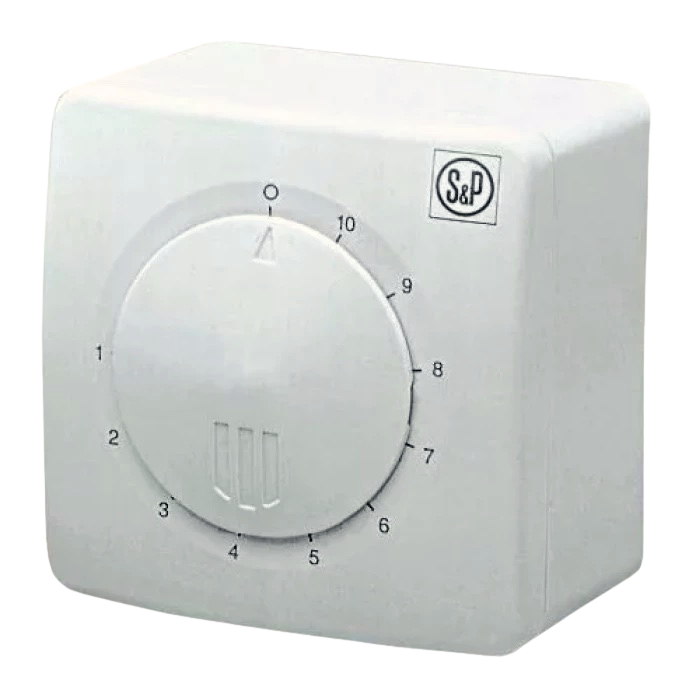

REB-2.5 N single-phase speed controller Soler&Palau (with wall-box)

The Soler&Palau REB-2.5 N is a high-quality electronic single-phase speed switch designed for surface mounting with an external housing for added durability and easy installation.
Equipped with a multifunctional rotary knob, the REB-2.5 N allows users to switch the fan ON/OFF and precisely adjust the airflow to the desired level.
Its built-in minimum speed adjustment ensures stable motor performance, prevents overload and improves overall energy efficiency.
Constructed from long-lasting PVC and engineered to meet Class II insulation and IP44 protection standards, this controller is suitable for most residential and light-commercial ventilation setups.
With its compact 80×80 mm dimensions and user-friendly design, the REB-2.5 N provides convenient and accurate airflow control while maintaining reliable day-to-day operation.
Manufactured in Spain, it reflects Soler&Palau’s commitment to quality and performance.

TECHNICAL INFORMATION:
Height: 80 mm
Width: 80 mm
Depth: 68 mm
Maximum current: 2.5 A
Minimum current: 0.15 A
Temperature range: 0 to +40 ºC
Power: 550 VA
Insulation class: Class II
IP rating: IP44
Frequency: 50 Hz
Voltage: 220-240 V
Mounting type: surface-mounted
Color: white
Material: plastic, other
Fuse protected + spare fuse included.
Minimum speed adjustment.
Single ON/OFF and speed regulation control knob.
