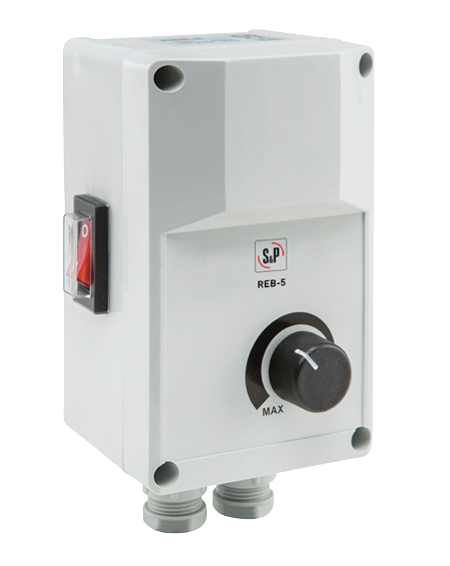

REB-5 single-phase speed controller Soler&Palau

– The Soler&Palau REB-5 electronic single-phase speed controller is a high-performance fan speed regulator designed for precise airflow control in ventilation systems.

– Suitable for surface mounting, the REB-5 provides smooth speed adjustment from minimum to maximum and features a dedicated ON/OFF button for easy operation.

– This controller is fuse-protected, ensuring safe and reliable performance for residential, commercial or industrial HVAC applications.

– Engineered for systems requiring adjustable fan speed, the REB-5 allows users to fine-tune airflow, improve comfort and increase energy efficiency.

– It can be installed close to the fan or in a convenient location to ensure quick access and accurate control.

– Made from durable PVC in white, this speed controller delivers long-lasting performance and stable operation.

– Designed in Spain, the Soler&Palau REB-5 is an excellent choice for fans, extract units and ventilation equipment where regulated speed control is essential.

TECHNICAL INFORMATION:

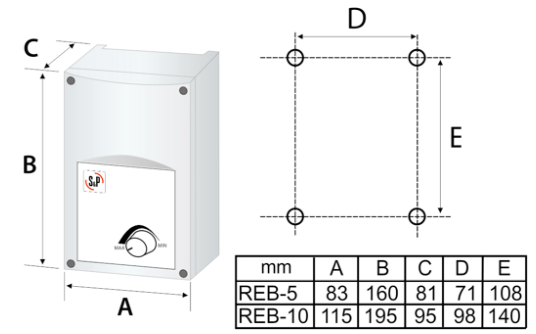

Height: 160 mm
Width: 83 mm
Depth: 81 mm
Temperature range: +5 to +35 ºC
Maximum current: 5 A
Power (W): 1150
Insulation class: Class I
IP rating: IP54
Frequency: 50 Hz
Voltage: 230 V
Color: white
Material: plastic, other

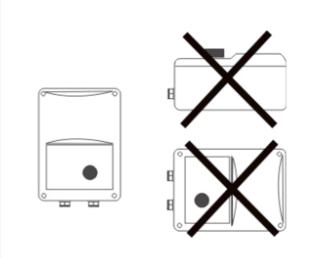

Mounting type: surface-mounted
Illuminated Stop / Run switch
“Fast” motor start mode
