Rodigas MC 702 wall bracket for outdoor units 587x535mm, 140kg

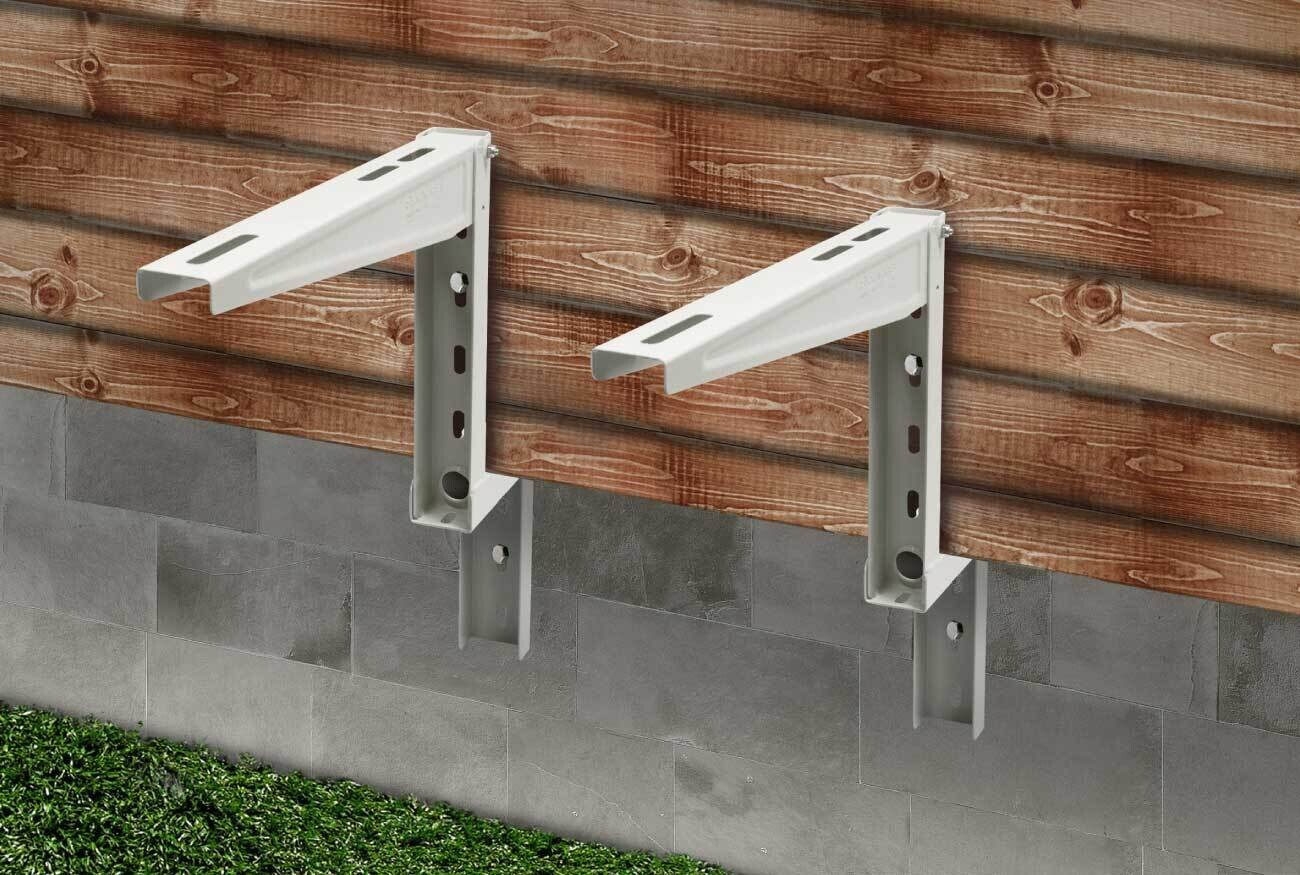

– The Rodigas MC 702 is a heavy-duty Z-type wall bracket engineered for securely mounting air conditioner and heat pump outdoor units, especialy for wooden building facades.

– Built from galvanized steel with a durable white coating, it provides strong resistance to moisture, corrosion and UV exposure, ensuring long-lasting stability in all weather conditions.

– With a load capacity of 140 kg and dimensions of 587×535 mm, it is designed to support modern outdoor units safely and efficiently.

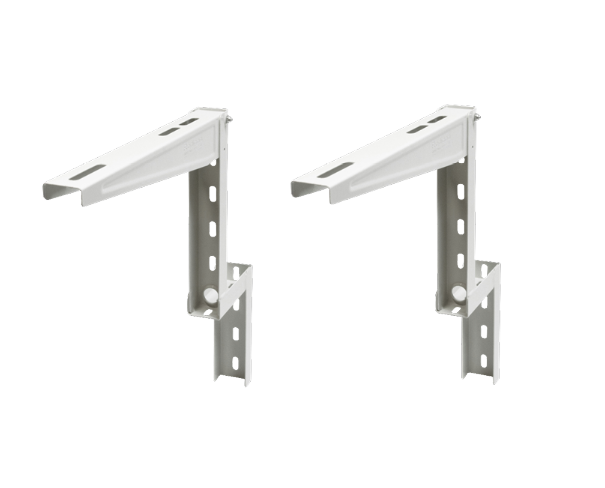

– The MC 702 bracket set includes two units and features a user-friendly installation system that allows fast, precise mounting without compromising structural integrity.

– Ideal for residential and commercial applications, it is a reliable solution for fixing outdoor HVAC equipment where enhanced strength and protection are required.

– Made in Italy by Rodigas, a manufacturer known for high-quality HVAC mounting systems.

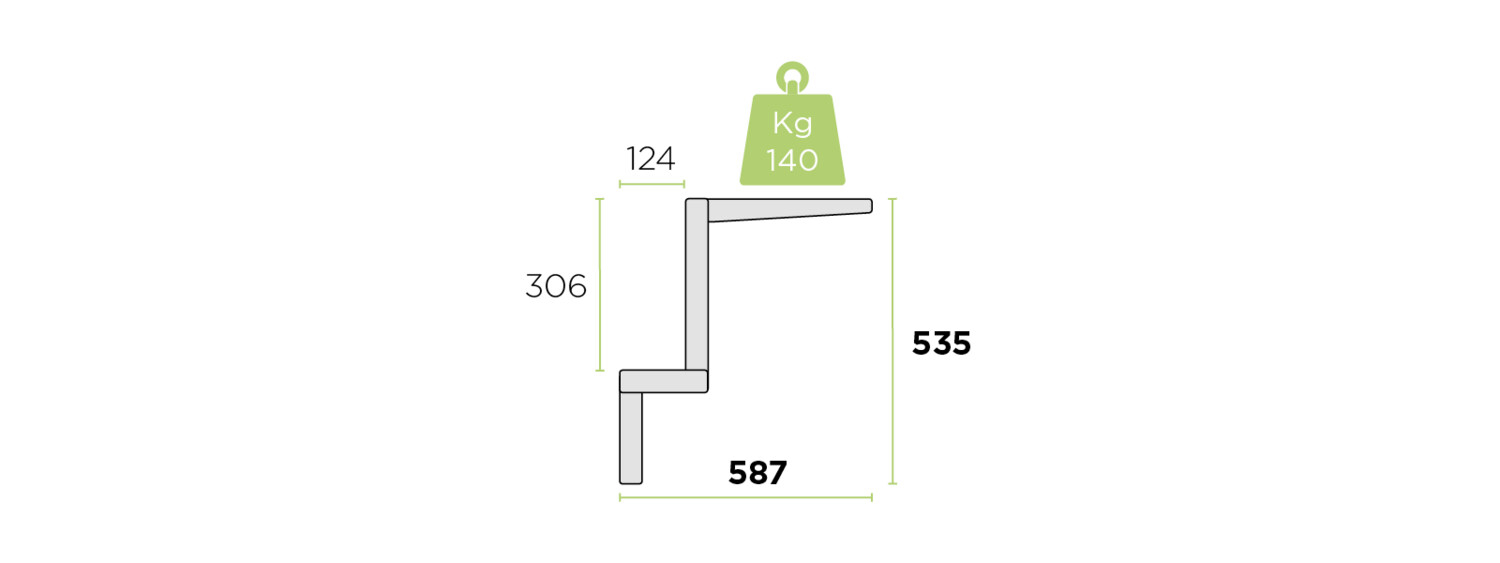

TECHNICAL INFORMATION:
Load capacity: 140kg
Height: 535mm
Depth: 587mm
Color: white (Ral 9002)
Material: galvanized steel
Treatment: epoxy resins in polyester for outdoor
Set includes: wall fixing kit, insulation washers
Installation type: wall
