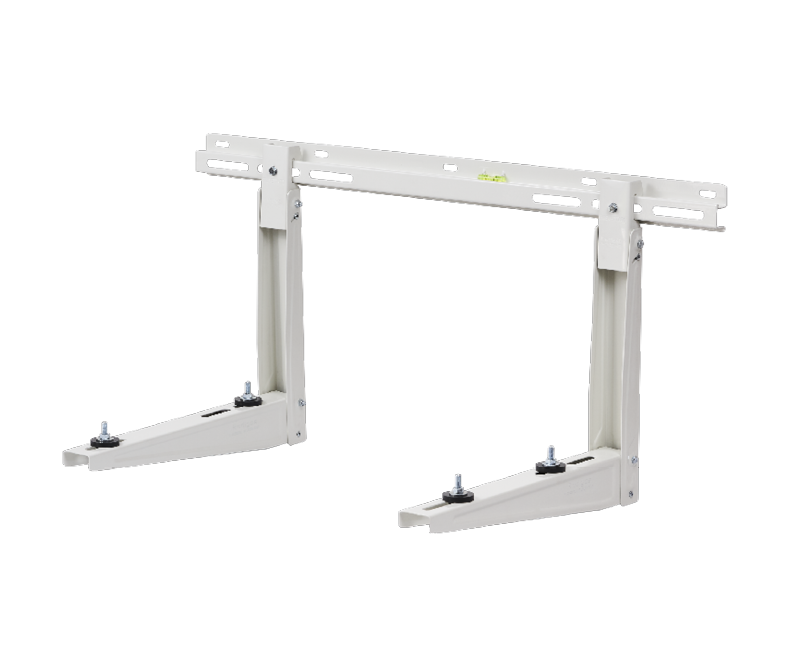

Rodigas MS 224 sliding wall bracket with safety hook 465x880mm, 140 kg

– The Rodigas MS 224 is a high-quality adjustable wall bracket designed for securely mounting air conditioner and heat pump outdoor units on brick or wooden façades.

– Made from electro-galvanised steel and coated with epoxy polyester resins, it provides outstanding resistance to corrosion, UV exposure and harsh outdoor conditions.

– The integrated safety hook allows 0–15° adjustment, making it ideal for uneven surfaces and wooden cladding.

– A built-in leveling system ensures precise alignment and easy installation, while the reinforced construction prevents vibrations and guarantees long-term stability of the outdoor unit.

– The MS 224 bracket is supplied with all necessary mounting accessories and is compatible with various multisplit and heat pump systems.

– Its adaptable design allows one bracket model to fit different outdoor units, making it a universal, reliable and long-lasting HVAC mounting solution made in Italy

TECHNICAL INFORMATION:
Load capacity: 140kg
Width: 880 mm
Depth: 465 mm
Height: 375 mm
Weight: 4.73 kg
Color: white (9002)
Material: electro-galvanised steel plate, painting epoxy resins in polyester
Adjustment: 2 adjustable gummy polypropilene feet (patented)
Set includes: level to adjust the wall bar, wall fixing kit, insulating washers
Installation type: wall
