Tecnosystemi SIPHON STOP SCD300004 anti-odor drain trap for 21mm condensate pipe
Tecnosystemi transparent dry anti-odor siphon STOP SCD300004 – compact PVC condensate siphon with anti-odor ball, built-in spirit level,easy maintenance and inspectable. Suitable for pipe with diameter Ø 32mm. Made in Italy.

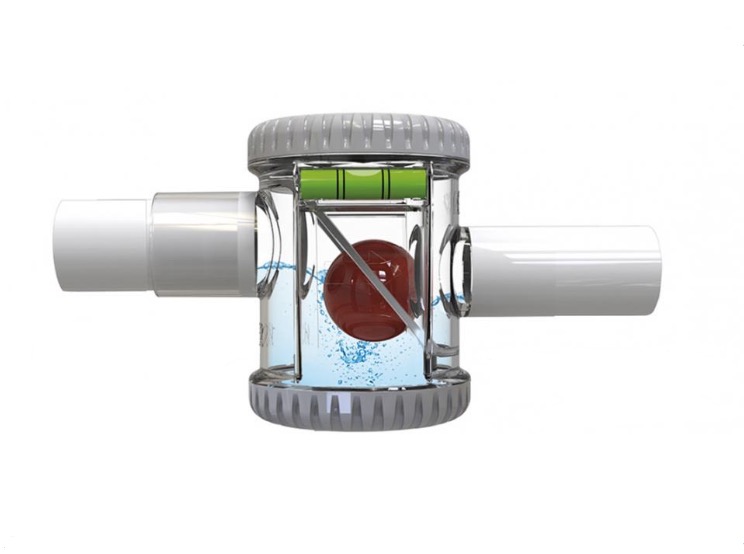

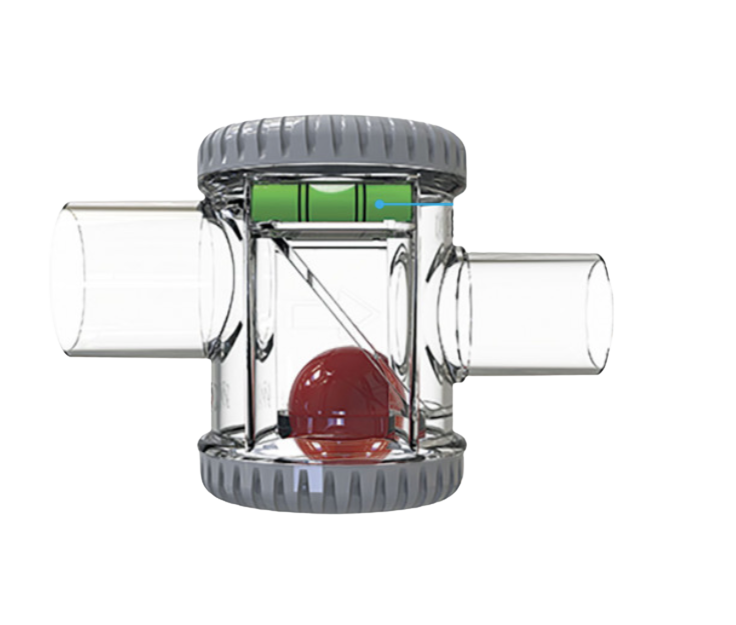

The Tecnosystemi SIPHON STOP SCD300004 condensate siphon is engineered to eliminate unpleasant odors caused by condensate drain pipes. Its innovative dry siphon design with odor-trapping ball mechanism ensures fresh and clean indoor air in any residential or commercial environment.
Crafted from high-strength transparent PVC, the siphon guarantees long service life, impact resistance, and simple maintenance. Thanks to its two removable inspection caps (top and bottom), users can easily check and clean the siphon without disconnecting the pipes – eliminating the hassle of complex disassembly.
The polyethylene sealing plugs with O-rings provide a leak-proof and reliable system. In addition, the built-in spirit level ensures precise installation, preventing alignment errors and possible leaks.
Key Features:
– Prevents odors from condensate drain pipes
– Odor-trapping ball mechanism for reliable performance
– Transparent, impact-resistant PVC body for durability
– Easy inspection and cleaning without pipe removal
– Built-in spirit level for accurate installation

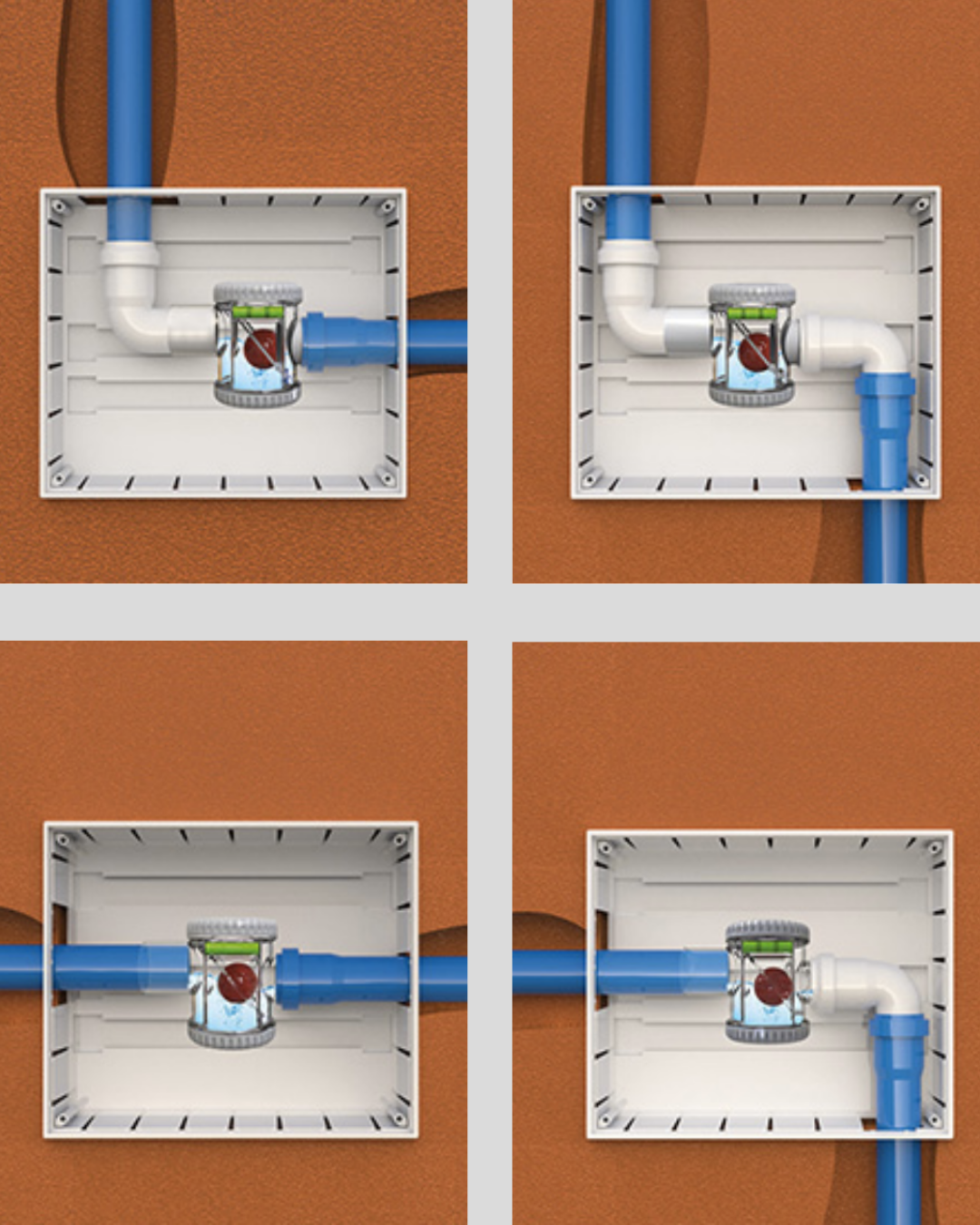

– Suitable for horizontal wall or suspended ceiling installations
– Ideal for both residential and commercial use
– Made in Italy – premium European quality

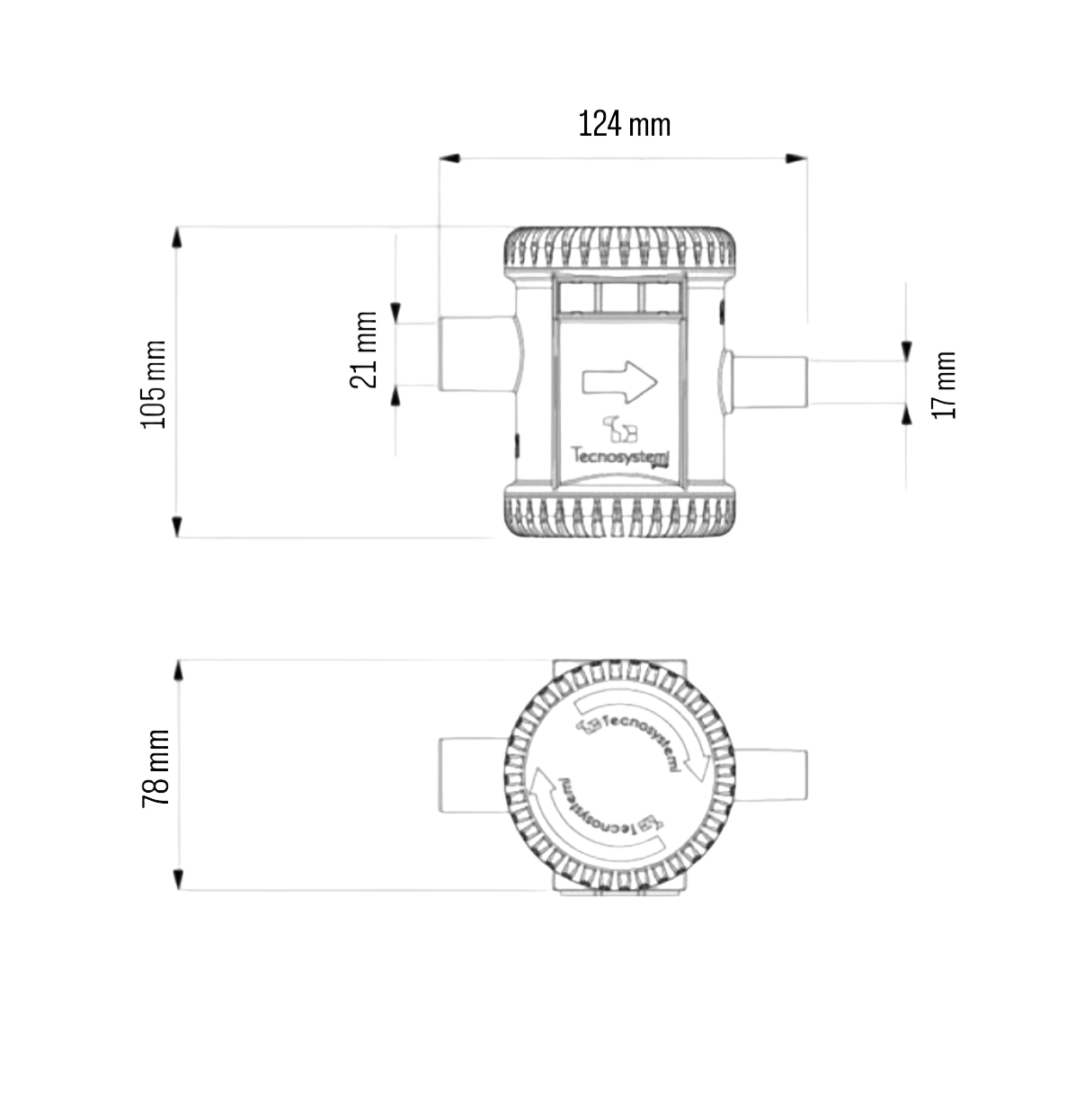

Technical Information:
Inlet pipe diameter Ø: 21 mm
Outlet pipe diameter Ø: 17 mm
Length: 124 mm
Height: 105 mm
Width: 78 mm
Maximum operating temperature: +60 °C
Installation: Horizontal
Material: PVC
Included: Built-in spirit level
| Dimensions | 124 × 78 × 105 mm |
|---|---|
| Product type | |
| Brand | |
| Manufacturer | |
| Country of origin |
