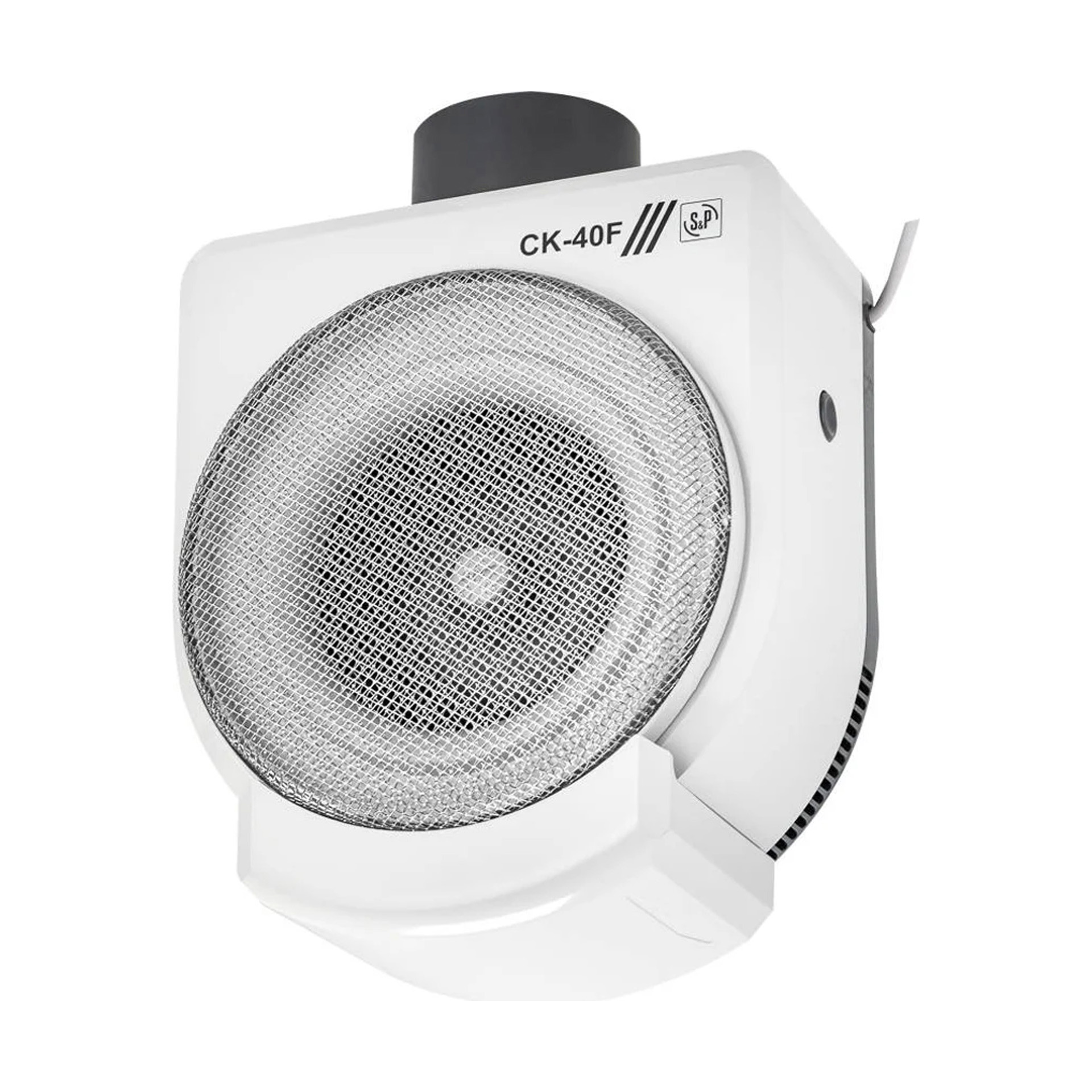

Soler & Palau CK-40 F kitchen extract fan

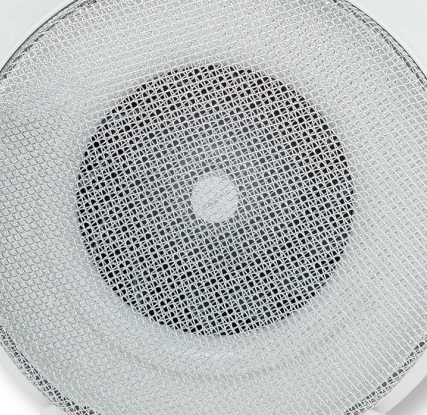

Each model in the Soler & Palau CK Series is designed to meet specific kitchen ventilation needs, ensuring efficient air extraction and ease of maintenance. Whether for compact, medium, or large kitchen spaces, these extractors provide reliable performance and durability.Stainless steel filter:
Fitted to the inlet to prevent the build-up of grease within the fan and ducting enclosure

Removable grease collection tray:
To collect the grease. Easily removable for cleaning.

Extractors can be dismantle:
Extractor parts easily removable for cleaning in the dishwasher. (At maximum temperature 60ºC)

CK KITCHEN EXHAUST FAN KITS are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.

Kit CK-40 F includes:
1 CK-40F fan
3 m of GSA-100 flexible aluminium ducting
2 duct connectors CX-80/125
1 backdraft shutter CM-130

Technical information:
Lenght (mm): 162
Height (mm): 370
Width (mm): 266
Speed (rpm): 2350
Airflow capacity (m³/h):360
Sound level (dB(A)): 55
Power at free discharge (W): 70
Voltage (V): 230
Temperature range (°C): up to +60
Frequency (Hz): 50
Material: steel, flame-retardant plastic
Colour: White
One speed
Grease collection tray
Stainless steeel filter
Removable
Adjustable
