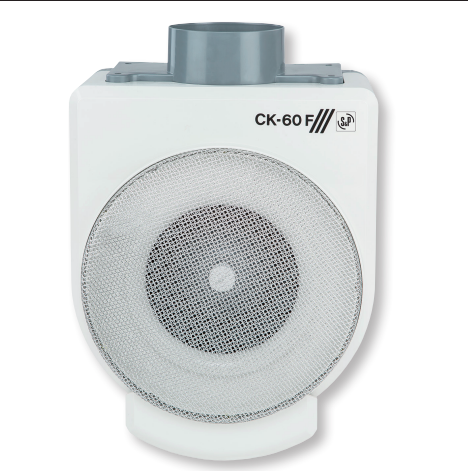

Soler & Palau CK-60 F kitchen extract fan

Each model in the Soler & Palau CK Series is designed to meet specific kitchen ventilation needs, ensuring efficient air extraction and ease of maintenance. Whether for compact, medium, or large kitchen spaces, these extractors provide reliable performance and durability.
This fan is ideal for installation within kitchen canopies and is suitable for both residential and light commercial applications

Stainless steel filter:
Fitted to the inlet to prevent the build-up of grease within the fan and ducting enclosure

Removable grease collection tray:
To collect the grease. Easily removable for cleaning.

CK-60F: 2-speed motor :
REGUL-2 speed selector I/II switch to adapt the extract air volume to the needs.

Extractors can be dismantle:
Extractor parts easily removable for cleaning in the dishwasher. (At maximum temperature 60ºC)

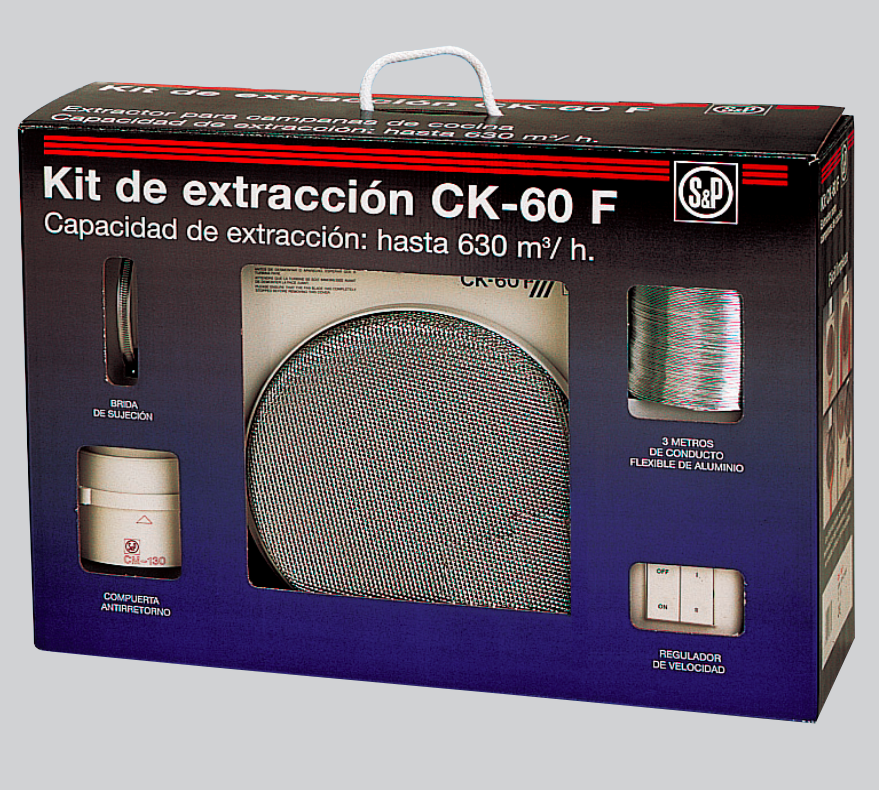

CK KITCHEN EXHAUST FAN KITS are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.

Kit CK-60 F includes:
1 CK-60F fan
3 m of GSA-125 flexible duct
2 duct connectors CX-125/215
1 backdraft shutter CM-130
1 two speed switch REGUL-2

Technical information:
Lenght (mm): 174
Height (mm): 410
Width (mm): 293.5
Speed (rpm): 2475/1740
Airflow capacity (m³/h):625/415
Sound level (dB(A)): 59/54
Power at free discharge (W): 160/96
Voltage (V): 230
Temperature range (°C): un to +60
Frequency (Hz): 50
Material: steel, flame-retardant plastic
Colour: White
2-speed motor
Grease collection tray
Stainless steeel filter
Removable
Adjustable
