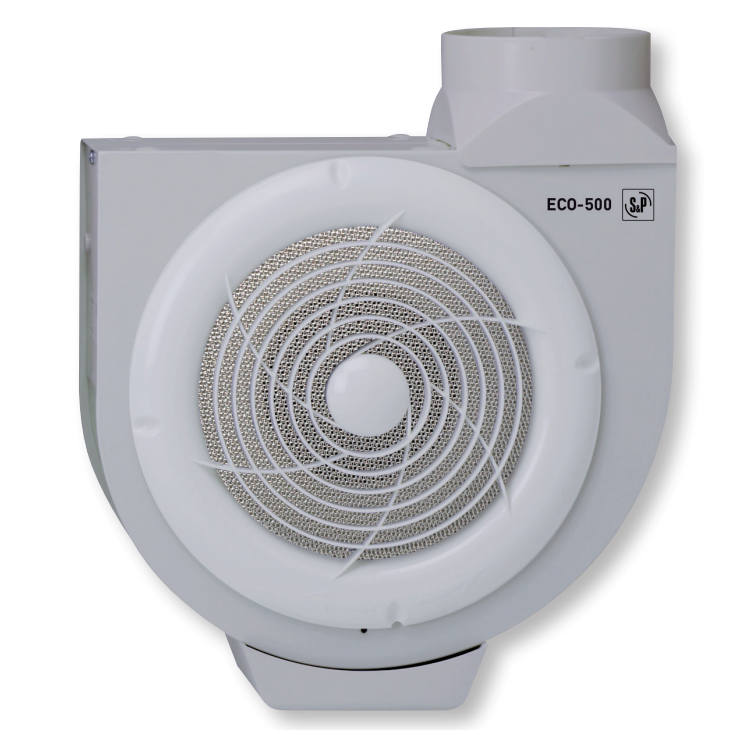

Soler & Palau ECO-500 kitchen extract fan
€87.73
Soler & Palau ECO-500 is comprises centrifugal kitchen extractor fan designed to efficiently remove smoke, odors, and grease-laden air from domestic cooking areas. Centrifugal extractor manufactured from sheet steel with an epoxy polyester paint finished. This extractor is fitted with centrifugal impeller and single phase 230V-50Hz speed controllable motor. Removable grease collection tray and components that are dishwasher-safe up to 60°C, ensuring easy maintenance and durability.
Soler & Palau ECO-500 is an energy-efficient centrifugal extractor fan designed for residential kitchens.
Stainless steel filter – to avoid any contact with the impeller.
Protection guard – to avoid any contact with the impeller.

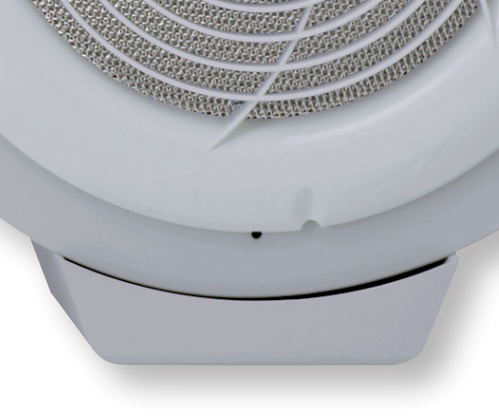

Removable grease collection tray – to collect the grease. Easily removable for cleaning.
Extractors can be dismantle- extractor parts easily removable for cleaning in the dishwasher (at maximum temperature 60ºC).
To obtain the maximum efficiency of the polluted air extraction, the K series fans should be installed within a cooker canopy. The airflow required depends upon the canopy width and the distance between the canopy and the cooker. The K series fans should be installed in vertical position with the grease collection tray at the bottom.
Technical information:
Lenght (mm): 132
Height (mm): 375
Width (mm): 315
Speed (rpm): 1370
Airflow capacity (m³/h): 385
Sound level (dB(A)): 52
Power at free discharge (W): 89
Voltage (V): 230
Temperature range (°C): un to +60
Frequency (Hz): 50
Material: steel
Colour: White
Grease collection tray
Stainless steeel filter
Adjustable
AVAILABLE
CK Series Metallic range:
CK-35 N
CK-50
ECO-500
CK Series Plastic range:
CK-25 N
CK-40 F
CK-60 F
| Weight | 4.3 kg |
|---|---|
| Dimensions | 470 × 330 × 350 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin |
