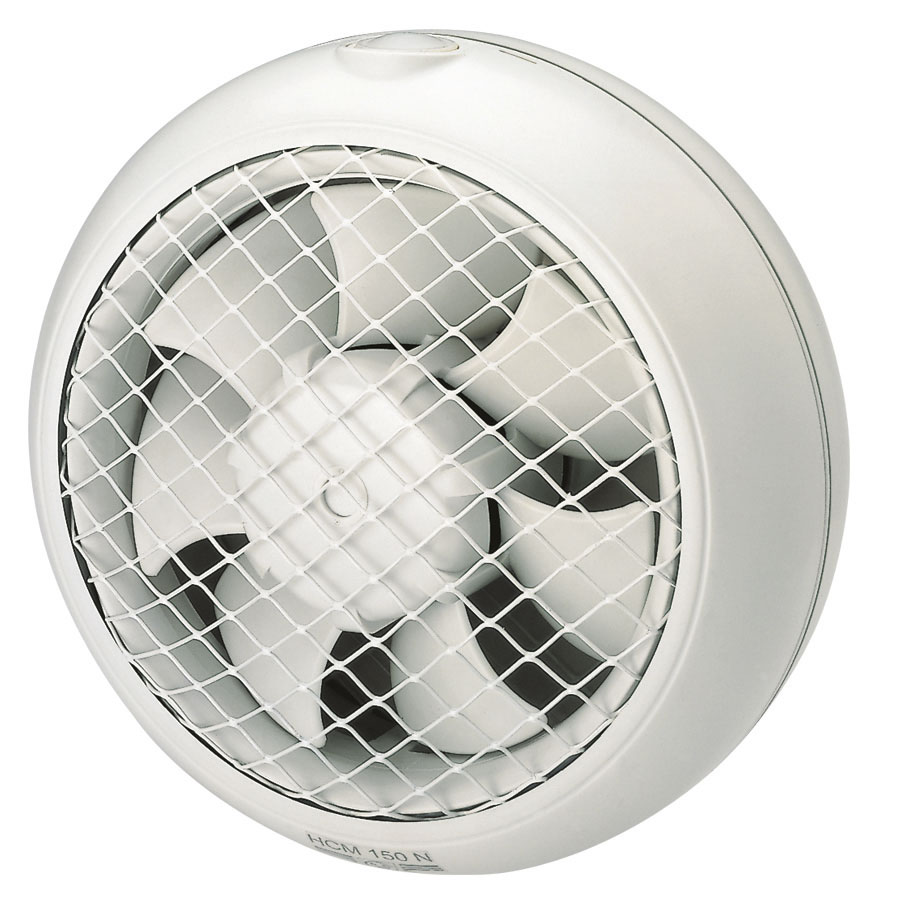

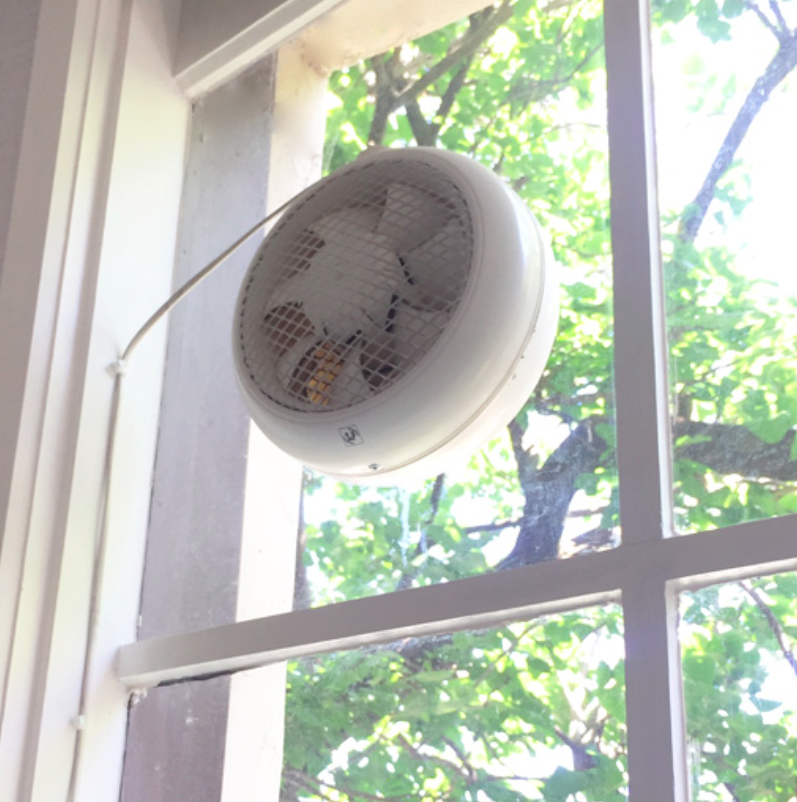

Soler & Palau HCM-225 N wall or window extract fan

The HCM wall or window mounted fan is suitable for domestic kitchens, bathrooms, offices, waiting rooms and restaurants. It features powerful air flow performance and quiet operation.

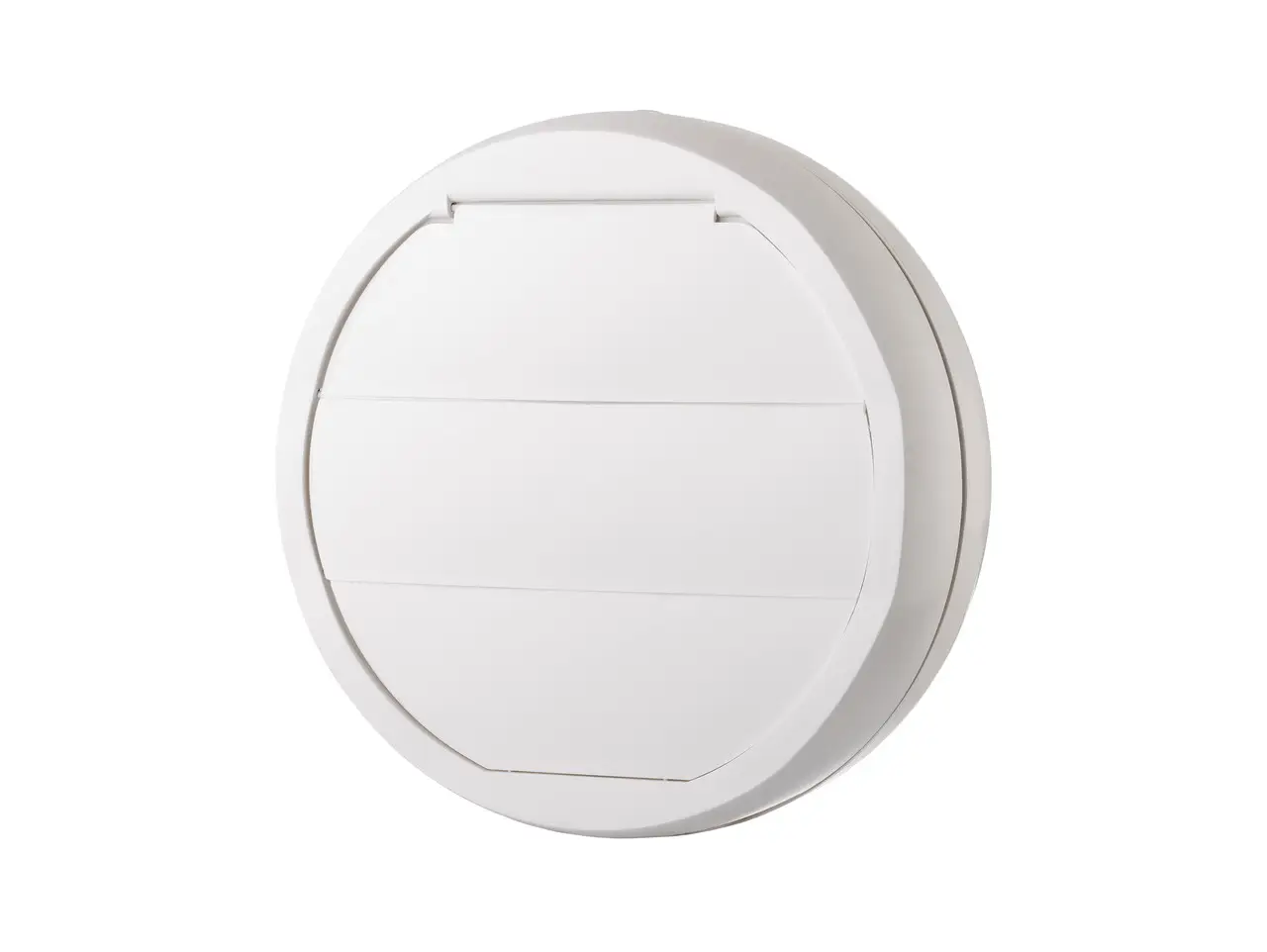

External shutter – features an automatic overpressure shutter that opens during operation and closes when the fan is off, preventing backdrafts

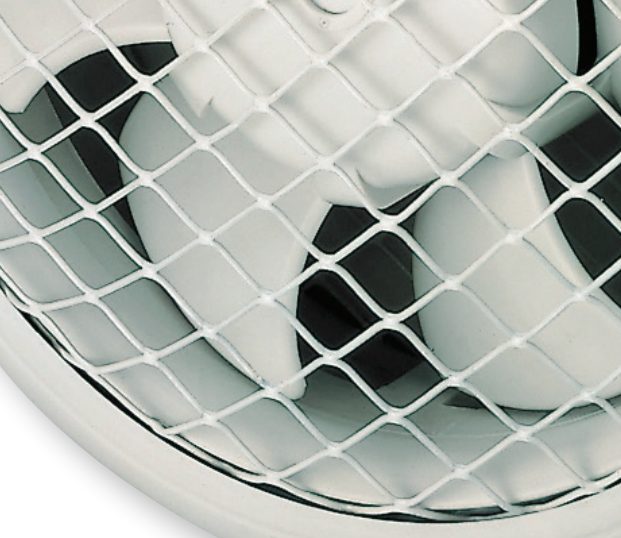

Safety guards – guards fitted at the inlet and outlet of the fan to prevent the entry of any foreign objects.

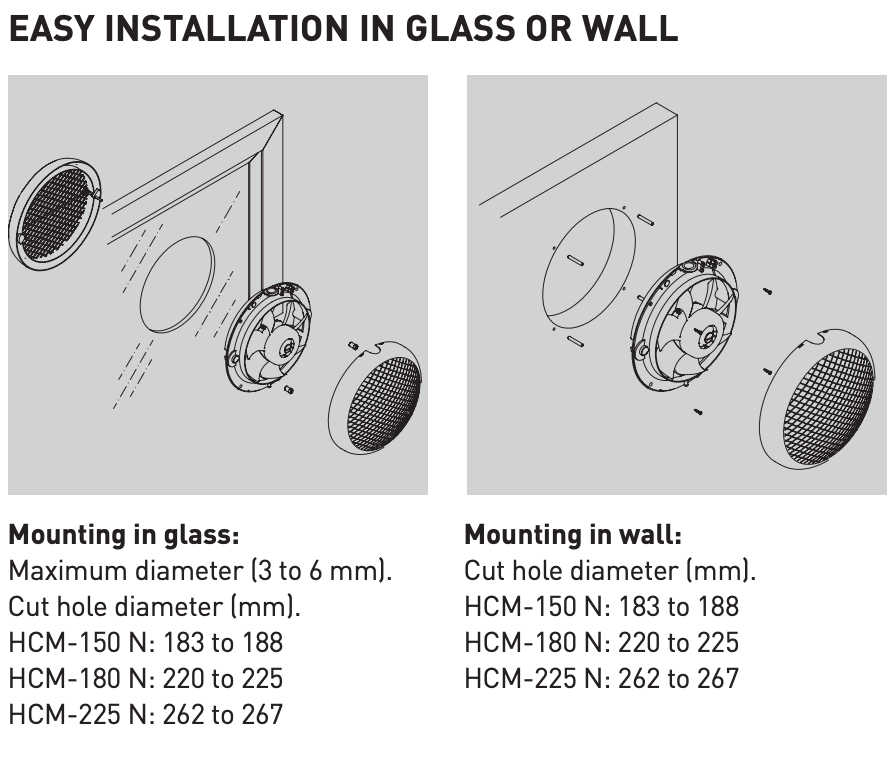

Easy installation in glass or wall – suitable for mounting on glass (3–6 mm thickness) or walls, with specific cut-out diameters for each model.
Optional weather cap – has been designed for skylight installation. It provides added protection against both wind and rain when the fan is mounted in demanding areas such as high-rise housing, seaside and exposed positions. Another key feature is that it comes with bird wire mesh and is colour matched to the fan.
Housing: Crafted from impact-resistant white plastic, ensuring durability and resistance to environmental factors.
Impeller: Axial design made from robust plastic, optimized for effective air movement.
Motor: Asynchronous shaded-pole motor with thermal overload protection, operating at 230V-50Hz.
Bearings: Equipped with plain bearings, lubricated for life, ensuring maintenance-free operation.
Insulation Class: Class II
Speed Controller: Compatible with REB electronic single-phase speed controllers for adjustable airflow.
Wall Mounting Kits: Optional wall rods and sleeves available for installations in walls of varying thicknesses (25 to 300 mm).

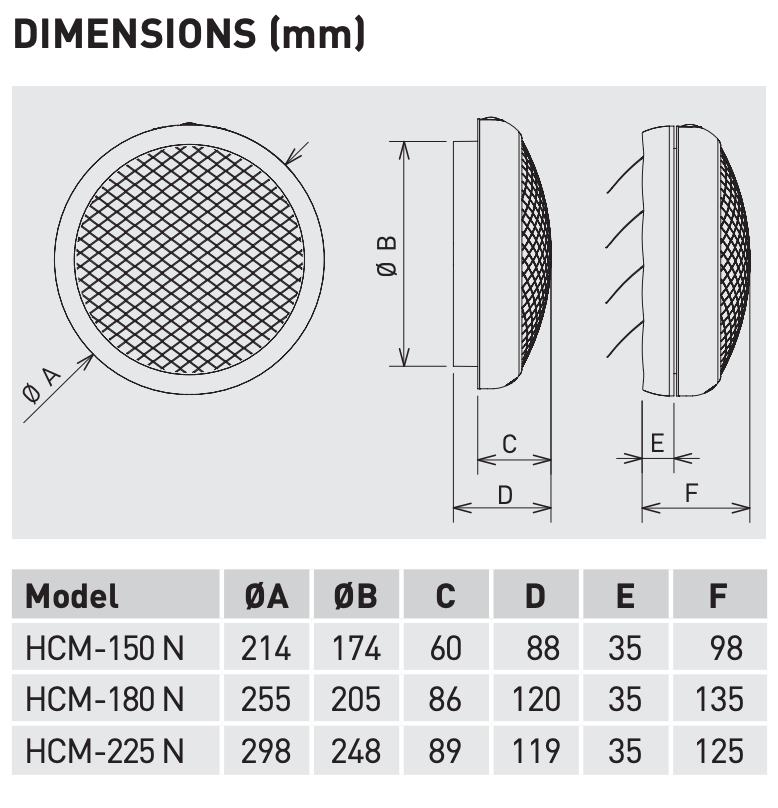

Technical information:
Diameter (mm): 298
Depth (mm): 125
Weight (kg): 1.8
Speed (rpm): 1350
Airflow capacity (m³/h): 600
Sound level (dB(A)): 45
Power at free discharge (W): 28
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: white

AVAILABLE
Soler&Palau HCM-150 N
Soler&Palau HCM-180 N
Soler&Palau HCM-225 N
