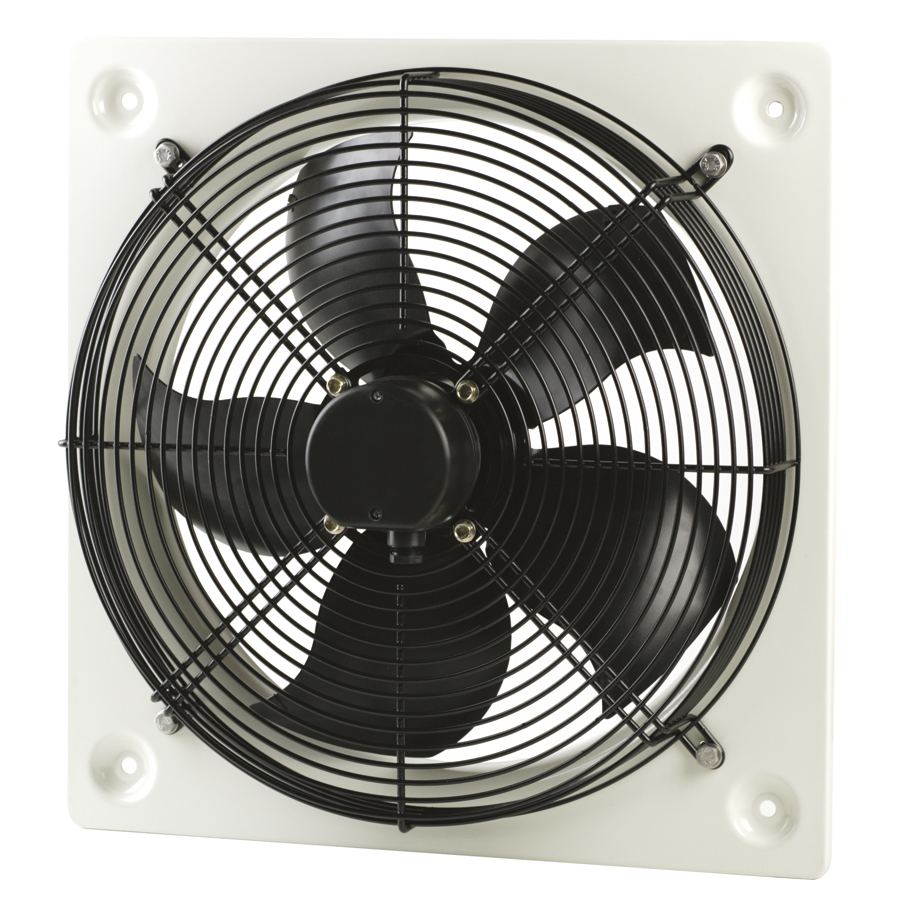

Soler & Palau HXM-400 plate mounted axial flow fan
€307.33
The HXM plate mounted axial flow fans are manufactured from pressed galvanised steel protected from corrosion by a beige epoxy-polyester paint finish. HXM models include impellers manufactured from aluminium sheet (HXM-200 to HXM-350) or steel sheet (HXM-400), finished with black polyester paint. All models include a steel finger proof guard as standard mounted to the inlet side of the fan.
Technical information:
Diameter (mm): 400
Speed (rpm): 1255
Airflow capacity (m³/h): 3.670
Sound level (dB(A)): 56
Power consumption (W): 151
Temperature range (°C): -40 to +60
Maximum absorbed current (A): 0,7
Voltage (V): 230
Frequency (Hz): 50Hz
IP rating: IP 54
Ball bearing

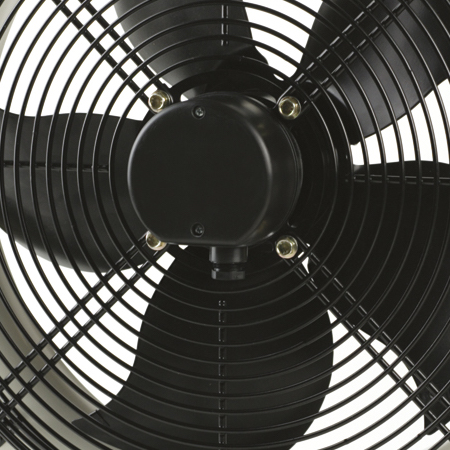

External rotor motor motor fitted with thermal protection and wiring terminal box
Motor Class F
Speed controller REB – REB-1N
Mounting accessories:
PER-W (back draft plastic shutters)
• PER – 200 W/ PER – 250 W/ PER – 355 W / PER – 355 W/ PER – 400 W
PER-CR (Back draft aluminium shutters)
• PER – 250CR/ PER – 250 CR/ PER – 355 CR / PER – 355 CR/ PER – 400 CR
Electrical accessories:
REB (electronic, single phase speed controller)
AVAILABLE
HXM series
HXM-200
HXM-250
HXM-300
HXM-350
HXM-400
| Weight | 9 kg |
|---|---|

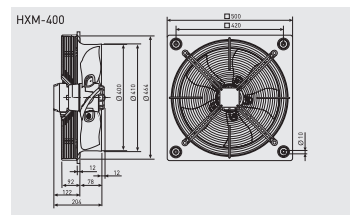

| Dimensions | 510 × 220 × 510 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin |
