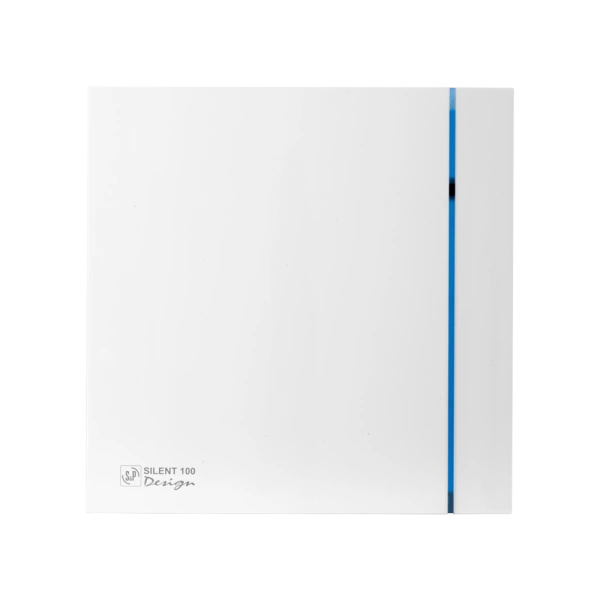

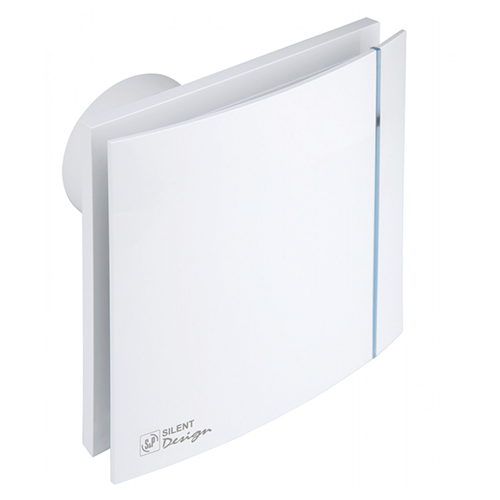

SILENT-100 CHZ DESIGN Soler & Palau bathroom and WC axial extract fan with timer and humidity sensor

S&P Silent-100 CHZ Design is a top-tier axial extractor fan, ideal for moisture-sensitive spaces like bathrooms, showers, and utility rooms. Featuring a clean, decorative flat front panel, it fits well in modern interiors. This model includes an adjustable humidistat that automatically activates the fan when humidity exceeds a set level, along with a run-on timer for continued extraction. It delivers 85 m³/h airflow while maintaining whisper-quiet operation at 26.5 dB, thanks to the vibration-dampening silent-block motor system. Equipped with a backdraft shutter, Class II insulation, and IP45 rating, it ensures both functionality and refined design.

Technical information:
Adjustable run on timer (1-30min)
Humidity sensor
Pilot light
backdraft shutter
Connection diameter (mm): 100
Height (mm): 188
Width (mm): 188
Depth (mm): 129.5
Weight (kg): 0.65
Speed (rpm): 2400
Airflow capacity (m³/h): 85
Sound level (dB(A)): 26.5
Power (W): 8
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: white
Insulation: Class II
Motor: Class B
IP45

Back draft shutter – to prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.

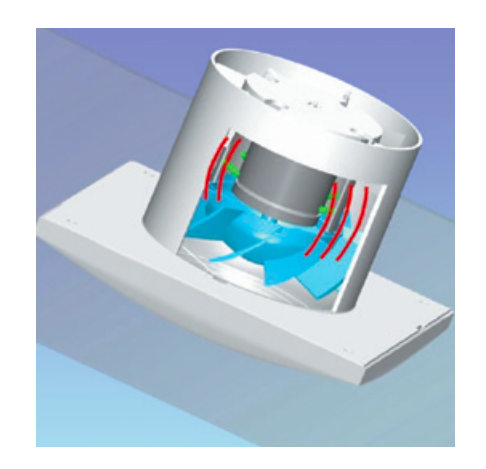

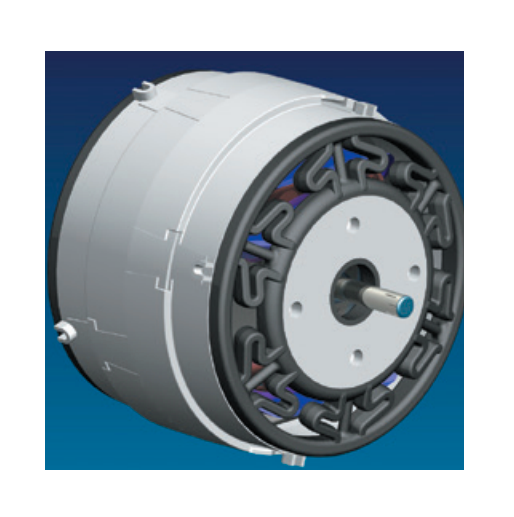

Silent-blocks – motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Quiet operation – in usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
