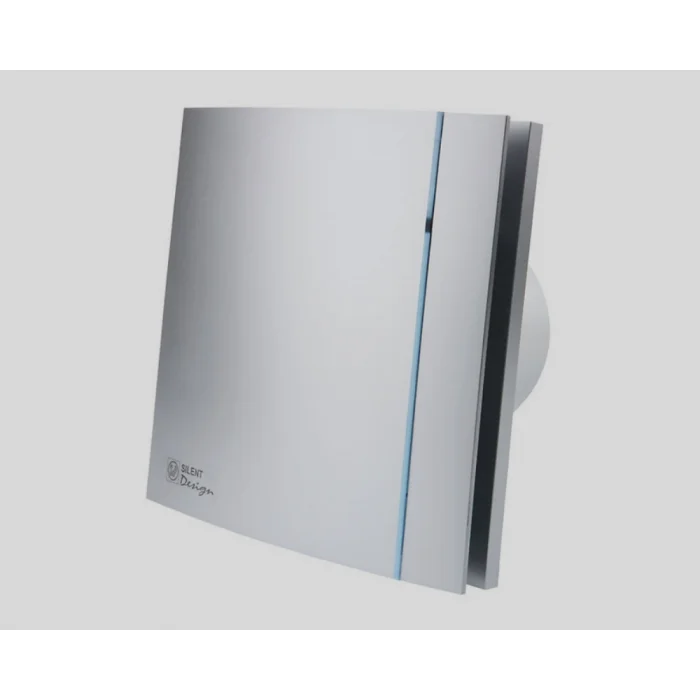

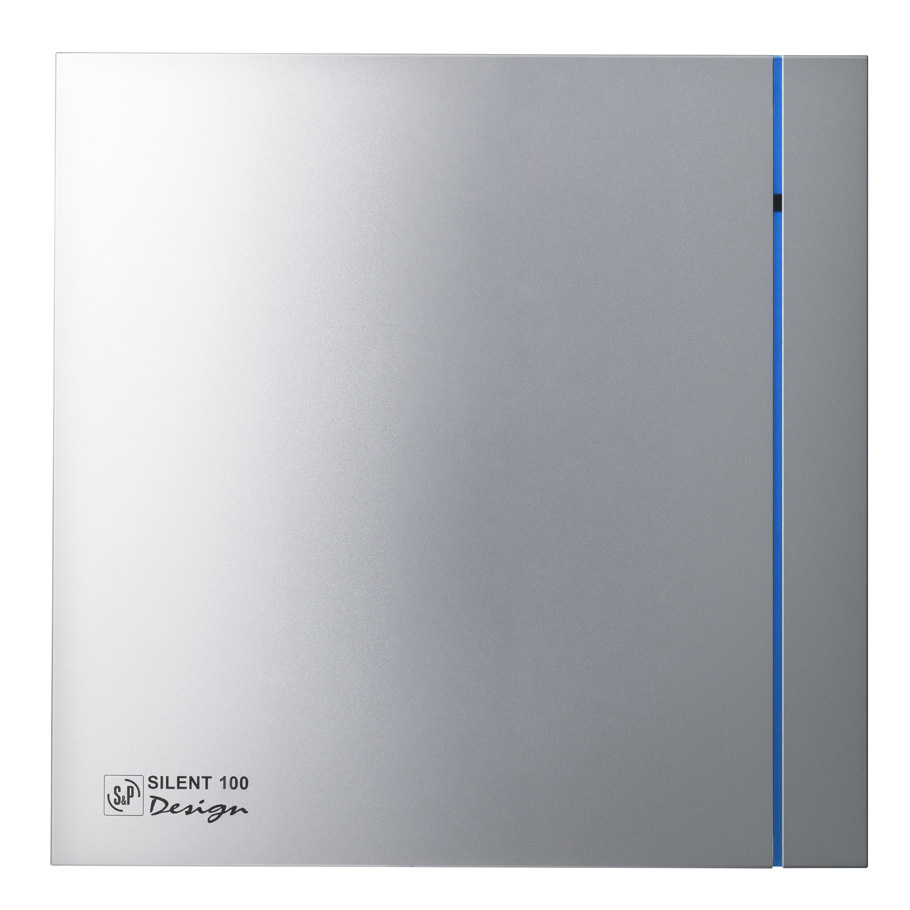

SILENT-100 CHZ DESIGN Silver Soler & Palau bathroom extract fan with timer and humidity sensor

S&P Silent-100 CHZ Design Silver is a high-end axial fan designed for automatic ventilation in bathrooms, toilets, and utility areas. It features a flat, elegant silver front panel that enhances any modern interior. This model includes an adjustable humidity sensor, which automatically activates the fan when the humidity level exceeds a set threshold, along with a run-on timer (1–30 minutes) for continued extraction after the humidity has dropped. Its motor is mounted on silent-blocks, ensuring ultra-quiet operation at just 26.5 dB. With a maximum airflow of 85 m³/h and static pressure of 37 Pa, it efficiently removes moisture and odors. The built-in backdraft shutter prevents cold air from entering, while IP45 protection and Class II insulation ensure safe use in damp environments. A reliable and stylish solution for intelligent, automatic bathroom ventilation.

Technical information:
Adjustable run on timer (1-30min)
Humidity sensor
Pilot light
backdraft shutter
Connection diameter (mm): 100
Height (mm): 188
Width (mm): 188
Depth (mm): 129.5
Weight (kg): 0.65
Speed (rpm): 2400
Airflow capacity (m³/h): 85
Sound level (dB(A)): 26.5
Power (W): 8
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: silver
Insulation: Class II
Motor: Class B
IP45

Back draft shutter – to prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.
Silent-blocks – motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Quiet operation – in usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
