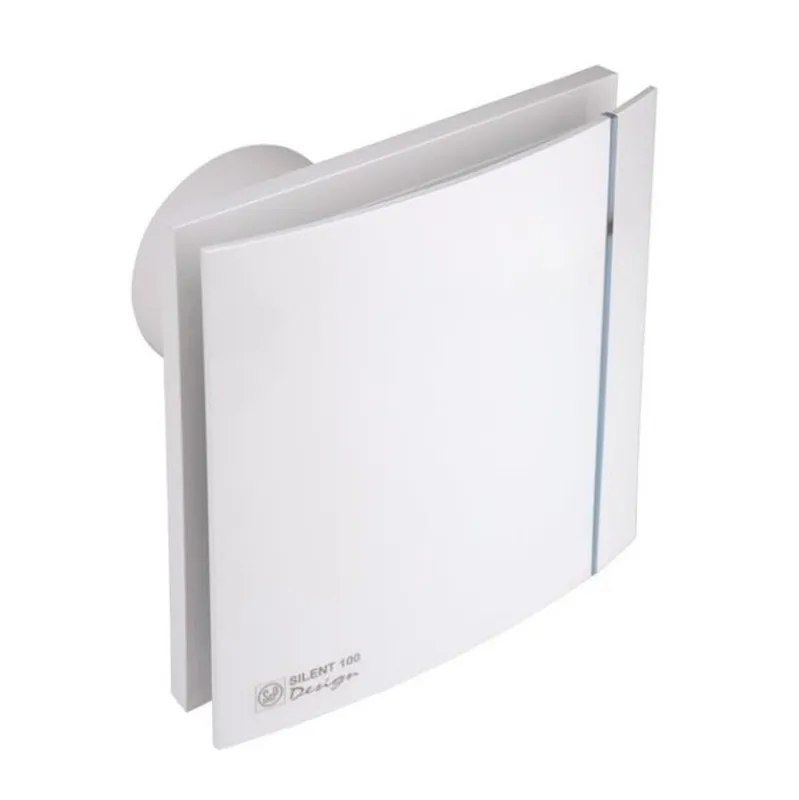

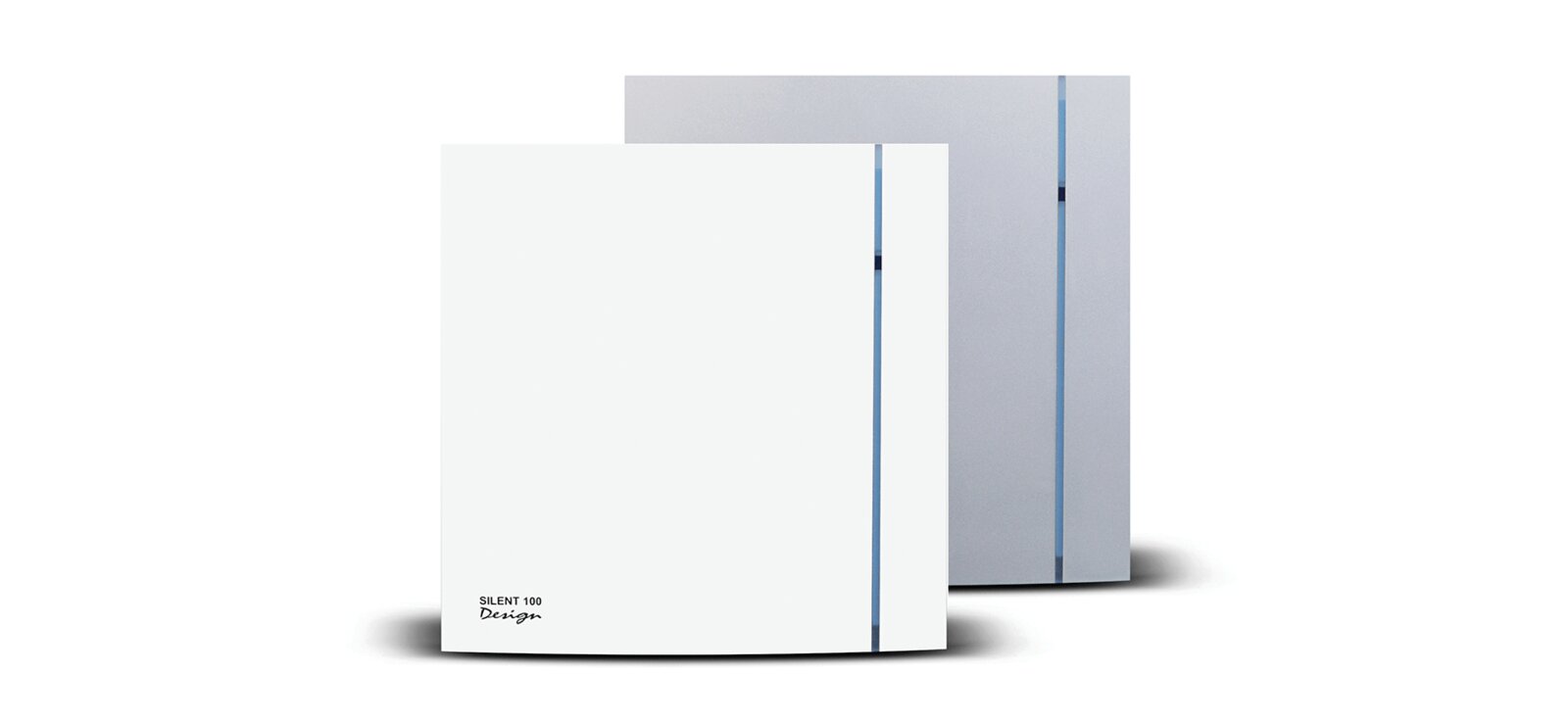

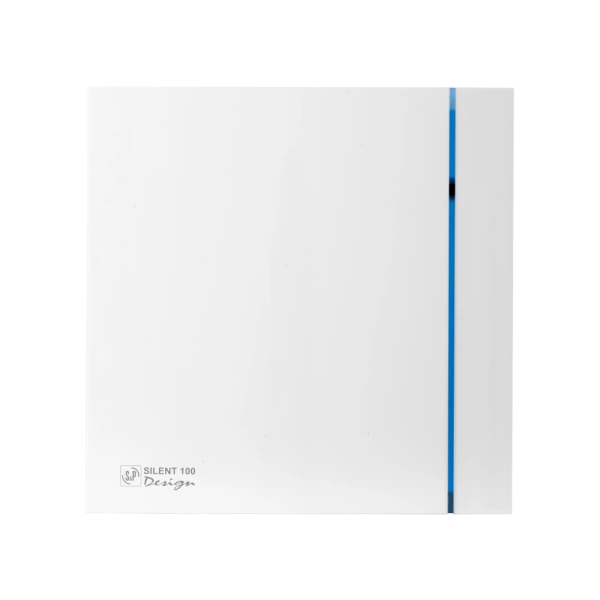

SILENT-100 CRZ DESIGN Soler & Palau bathroom and WC extract fan with timer

S&P Silent-100 CRZ Design is an elegant axial extractor fan ideal for bathrooms and WCs. Featuring a decorative flat front panel, it blends seamlessly with modern interiors. This model includes an adjustable run-on timer (1 to 30 minutes), allowing continued ventilation after lights are turned off. Delivering 85 m³/h airflow and operating at just 26.5 dB, it ensures effective extraction with minimal noise. The silent-block motor mount reduces vibration, and the integrated backdraft shutter improves energy efficiency. With IP45 protection and Class II insulation, the CRZ Design offers performance, style, and convenience.

Technical information:
Adjustable run on timer (1-30min)
Pilot light
backdraft shutter
Connection diameter (mm): 100
Height (mm): 188
Width (mm): 188
Depth (mm): 129.5
Weight (kg): 0.65
Speed (rpm): 2400
Airflow capacity (m³/h): 85
Sound level (dB(A)): 26.5
Power (W): 8
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: white
Insulation: Class II
Motor: Class B
IP45

Back draft shutter – to prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.

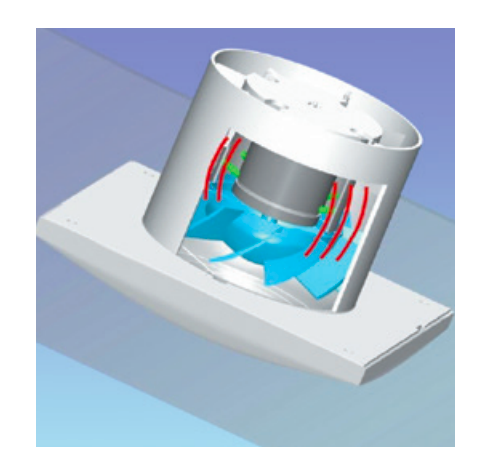

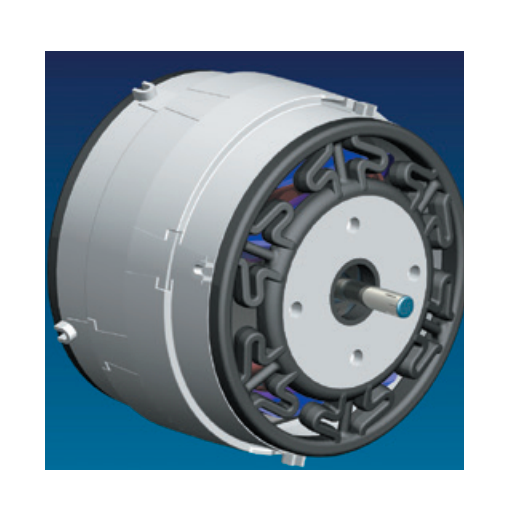

Silent-blocks – motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Quiet operation – in usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
