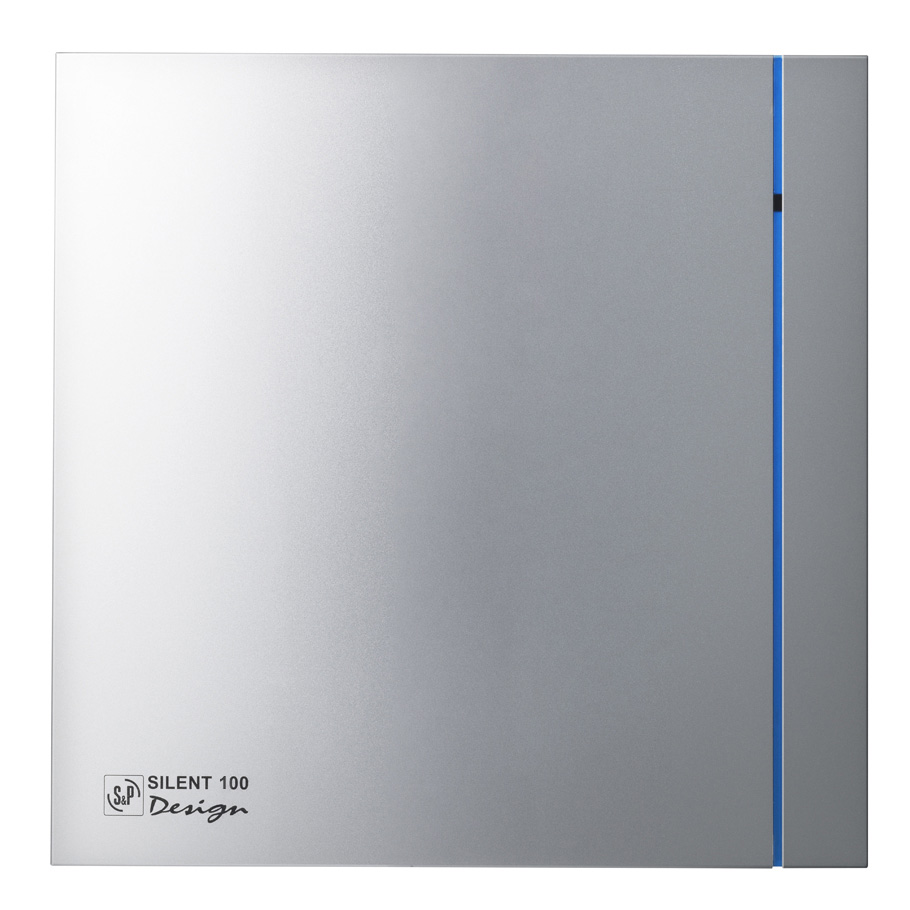

SILENT-100 CZ Design Silver Soler & Palau ultra-quiet bathroom axial extractor fan

The Soler & Palau Silent-100 CZ Design Silver is a high-quality axial extractor fan for bathrooms and small rooms. With its modern flat silver-colored front panel, it blends seamlessly into contemporary interiors, offering both functionality and design.
It operates at just 26.5 dB thanks to the silent-elastic block motor mounting, which reduces vibration and noise. With a capacity of 85 m³/h and a 100 mm duct connection, it ensures effective moisture removal. The integrated backdraft shutter prevents cold air from entering. IP45-rated and Class II insulated, it’s a reliable solution for quiet, stylish ventilation.

Technical information:
Pilot light
backdraft shutter
Connection diameter (mm): 100
Height (mm): 188
Width (mm): 188
Depth (mm): 129.5
Weight (kg): 0.65
Speed (rpm): 2400
Airflow capacity (m³/h): 85
Sound level (dB(A)): 26.5
Power (W): 8
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: silver
Insulation: Class II
Motor: Class B
IP45

Back draft shutter – to prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.
Silent-blocks – motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Quiet operation – in usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
