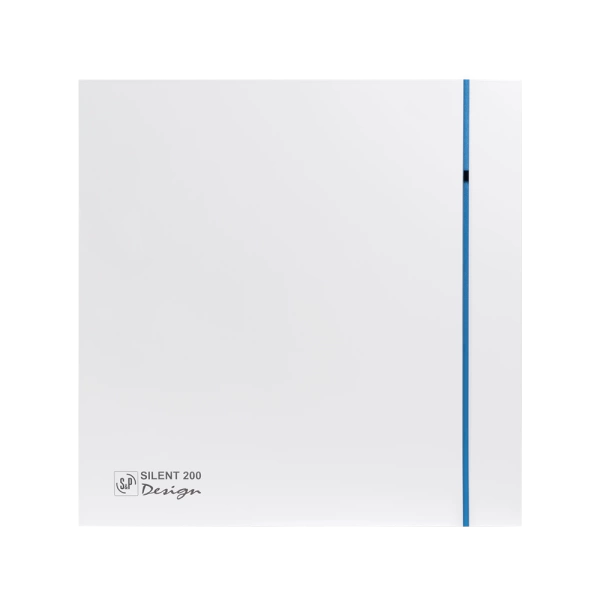

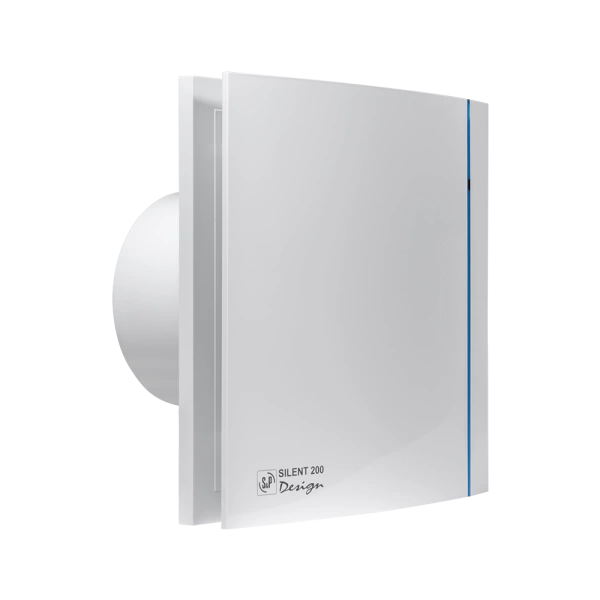

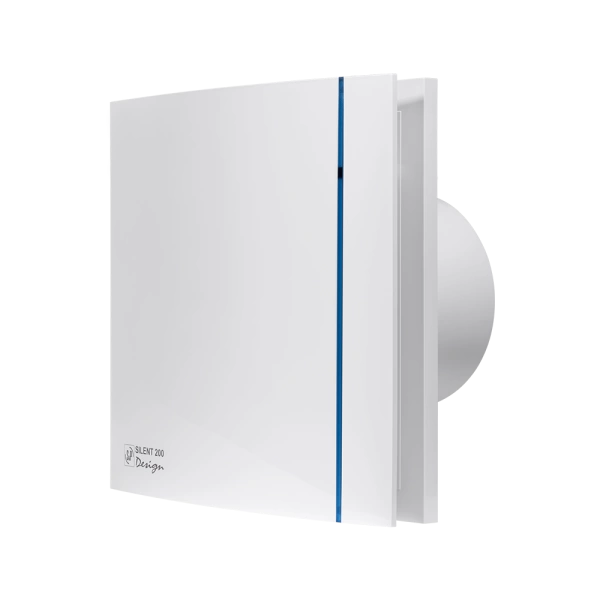

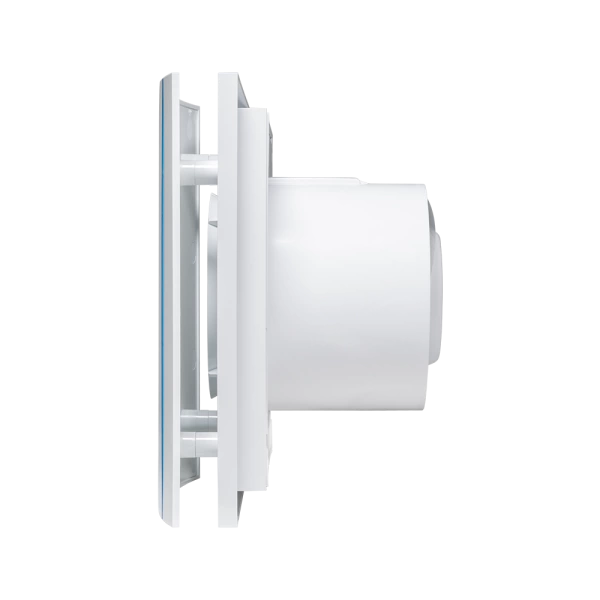

SILENT-200 CHZ DESIGN Soler & Palau bathroom and WC extract fan with timer and humidity sensor

S&P Silent-200 CHZ Design is a smart, high-capacity axial extractor fan for automatic ventilation in large bathrooms and humid areas. Featuring a clean, decorative flat front panel, it fits well in modern interiors. This model includes an adjustable humidistat that automatically activates the fan when humidity exceeds a set level, along with a run-on timer for continued extraction. It delivers 175 m³/h airflow while maintaining whisper-quiet operation at 35 dB, thanks to the vibration-dampening silent-block motor system. Equipped with a backdraft shutter, Class II insulation, and IP45 rating, it ensures both functionality and refined design.

Technical information:
Adjustable run on timer (1-30min)
Pilot light
backdraft shutter
Connection diameter (mm): 120
Height (mm): 210
Width (mm): 210
Depth (mm): 145
Weight (kg): 0.88
Airflow capacity (m³/h): 175
Sound level (dB(A)): 35
Power (W): 16
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: white
Insulation: Class II
Motor: Class B
IP45

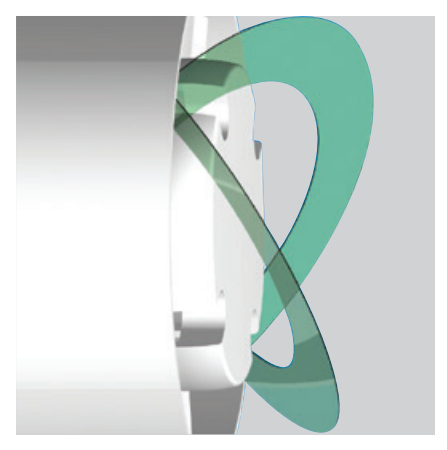

Back draft shutter – to prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.

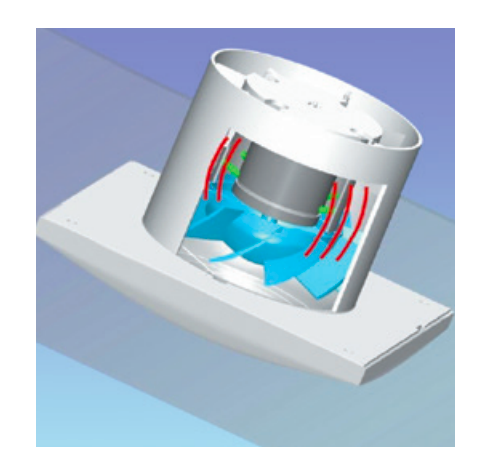

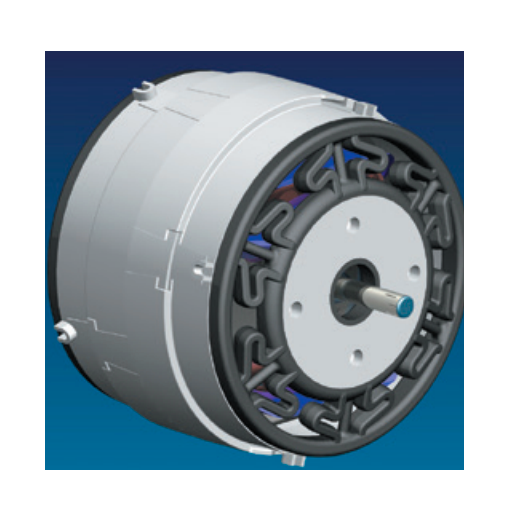

Silent-blocks – motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Quiet operation – in usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
