SILENT-200 CRZ Design Soler & Palau bathroom and WC extract fan with timer

S&P Silent-200 CRZ Design is an elegant, silent axial extractor fan ideal for larger bathrooms and utility spaces. Featuring a decorative flat front panel, it blends seamlessly with modern interiors. This model includes an adjustable run-on timer (1 to 30 minutes), allowing continued ventilation after lights are turned off. Delivering 175 m³/h airflow and operating at just 35 dB, it ensures effective extraction with minimal noise. Ø120 mm duct connection. The silent-block motor mount reduces vibration, and the integrated backdraft shutter improves energy efficiency. With IP45 protection and Class II insulation, the CRZ Design offers performance, style, and convenience.

Technical information:
Adjustable run on timer (1-30min)
Pilot light
backdraft shutter
Connection diameter (mm): 120
Height (mm): 210
Width (mm): 210
Depth (mm): 145
Weight (kg): 0.88
Airflow capacity (m³/h): 175
Sound level (dB(A)): 35
Power (W): 16
Voltage (V): 230
Temperature range (°C): up to +40
Frequency (Hz): 50
Material: plastic
Colour: white
Insulation: Class II
Motor: Class B
IP45

Back draft shutter – to prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.

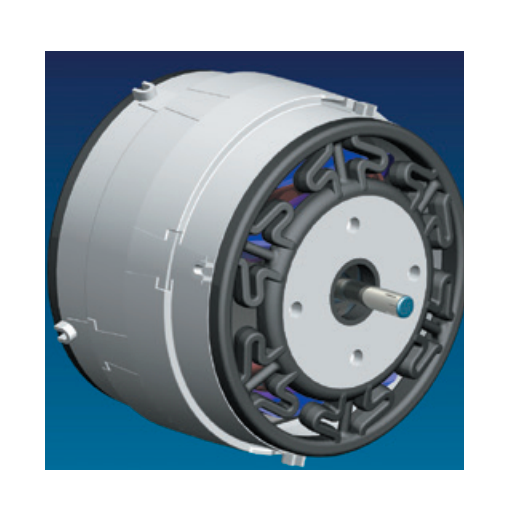

Silent-blocks – motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Quiet operation – in usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
