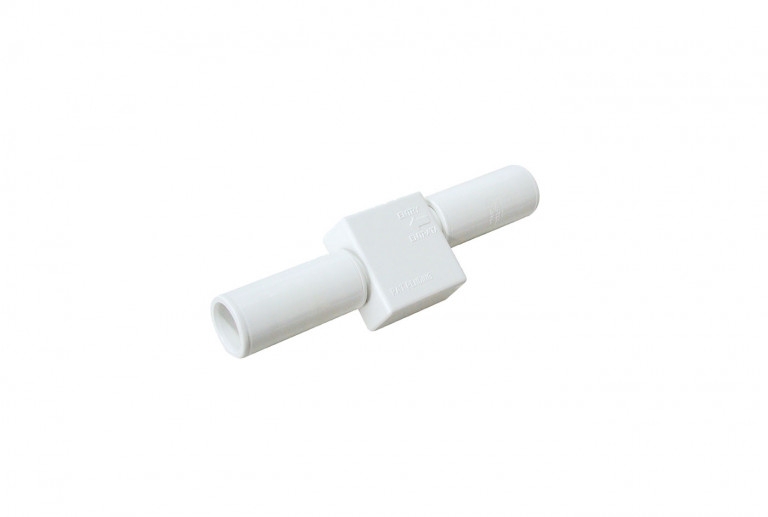

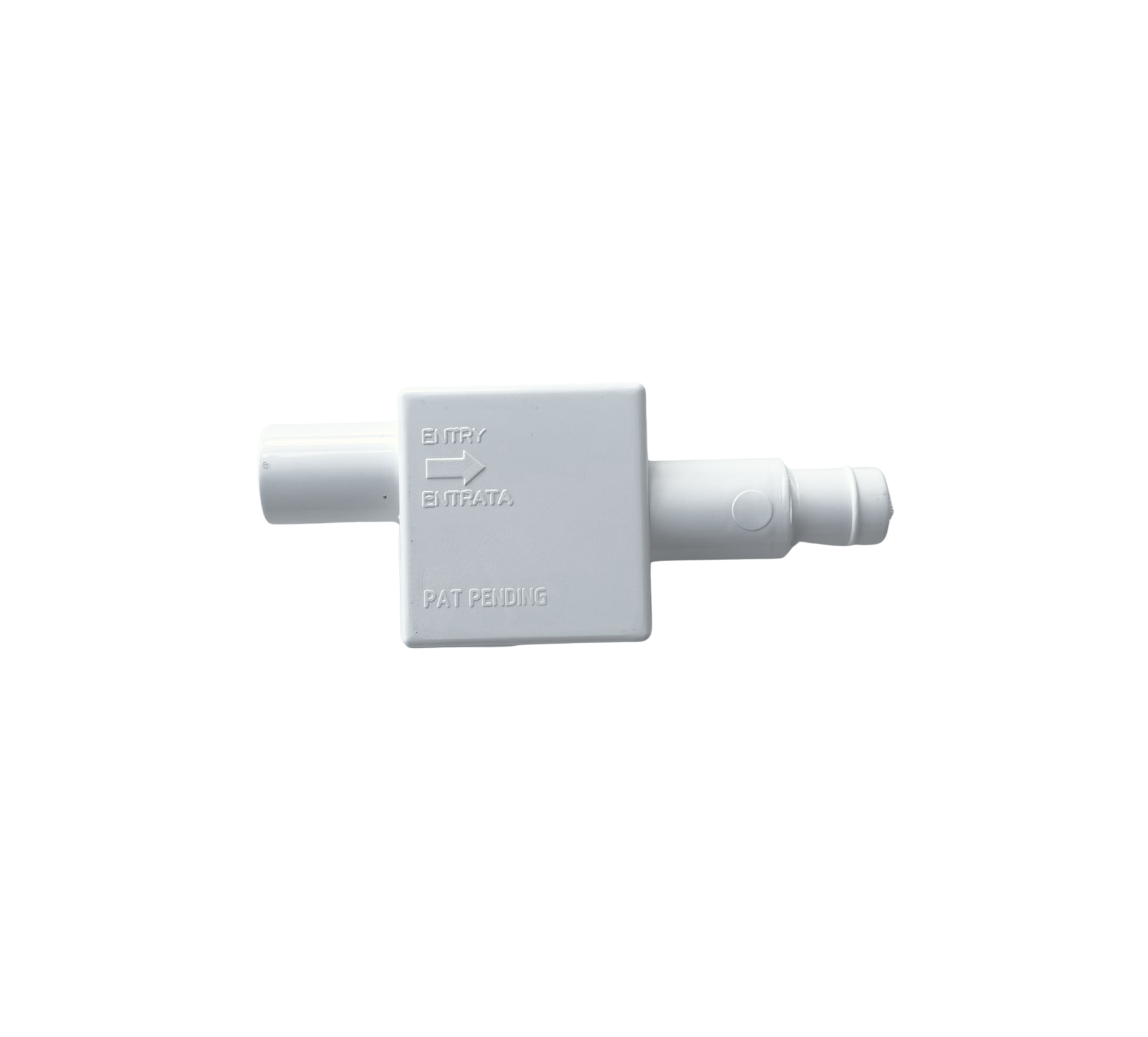

TCR-21 Tecnosystemi 11126322 anti-odour siphon for condensate drain pipe 21mm

The Tecnosystemi TCR-21 drain siphon (11126322) is a reliable and durable solution designed to prevent unpleasant odors from entering rooms through condensate drain pipes. Its simple yet effective design ensures a hygienic and odor-free environment for residential and commercial applications.

– Odor-trap siphon for condensate drainage, effectively blocking gases and smells from sewage pipes.
– Works by maintaining a water barrier between drainage pipes and the indoor space, preventing odors from returning indoors.
– Features easy installation and flexible adjustment to specific needs.
– Constructed as a specially shaped pipe that retains a small water volume, creating a barrier against odors and impurities
– Suitable for bathrooms, kitchens, and HVAC systems with sewage or condensate connections.
– Includes built-in sealing rings, ensuring a leak-proof and secure connection.
– Manufactured from high-quality, durable PVC, guaranteeing long service life.
– Can be installed in both horizontal and vertical positions.

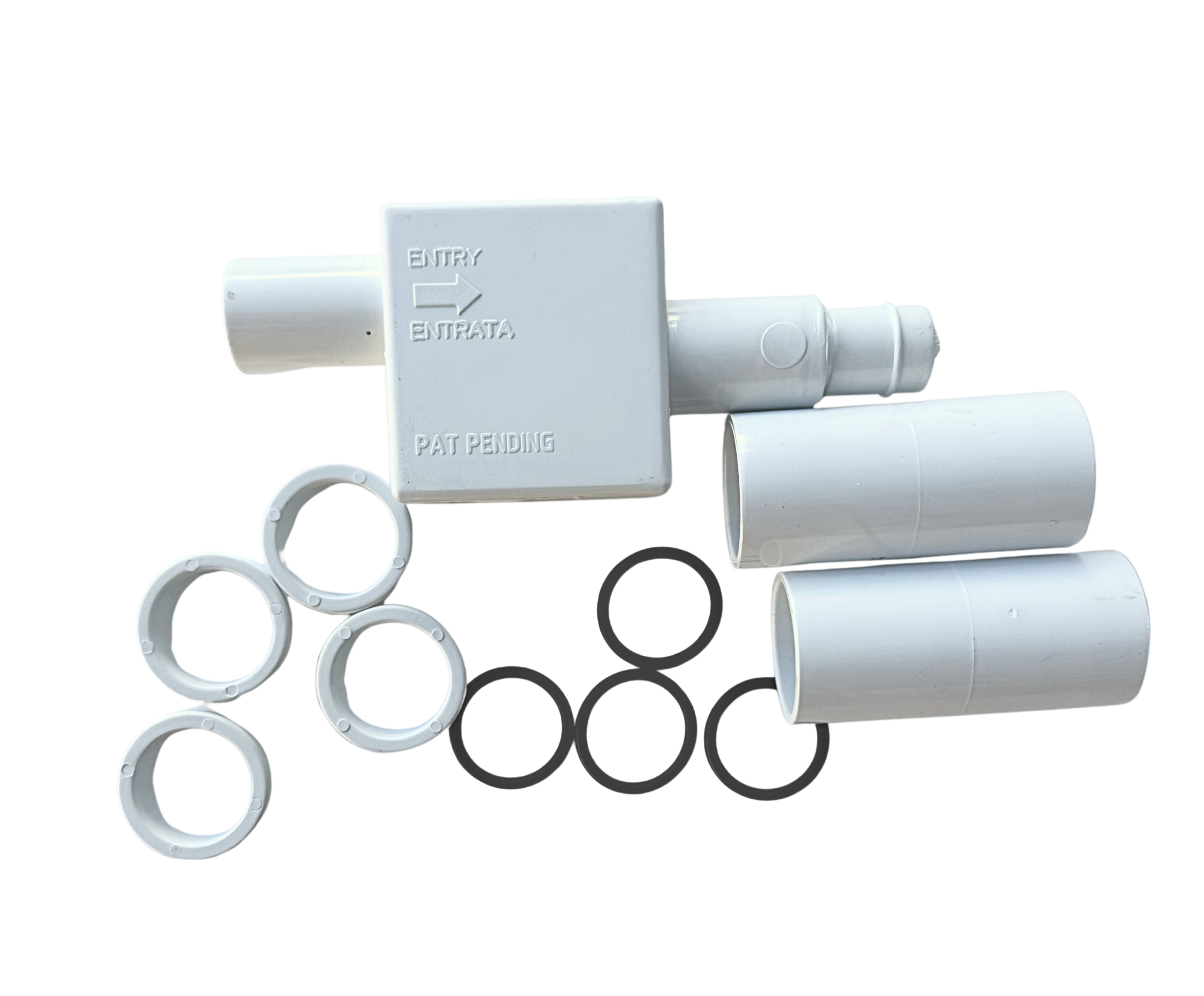

– With two connection sleeves (MG – TCR-21), compatible with Tecnosystemi’s rigid TCR-21 condensate pipe.
– Can also be adapted for use with TCR-32 pipe using the Tecnosystemi TCR-32/TCR-21 reduction (code 11126395).
– Made in Italy, ensuring superior design and durability.

The Tecnosystemi TCR-21 siphon is a practical and essential component for maintaining system performance, hygiene, and indoor comfort.

Technical Information:
Model: 11126322
Connection diameter Ø: 21 mm
Outer diameter Ø: 29 mm
Length: 185 mm
Installation: Horizontal, Vertical
Material: PVC
Color: White
Included: Sealing O-rings
