102, 127, 160, 203, 254 and 315mm / 10m thermally insulated aluminium air duct ISODEC 25 (25mm insulation)
€49.85 – €118.10
ISODEC 25 insulated air ducts are an excellent choice for directing airflow and maintaining air temperature. These air ducts are carefully designed, combining an inner aluminum layer, a thermal insulation layer made of glass wool, and an outer aluminum layer. The Isodec duct effectively prevents condensation and reduces heat and cold loss, helping to save energy and improving heating or cooling efficiency.

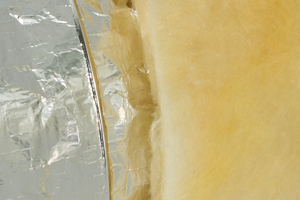

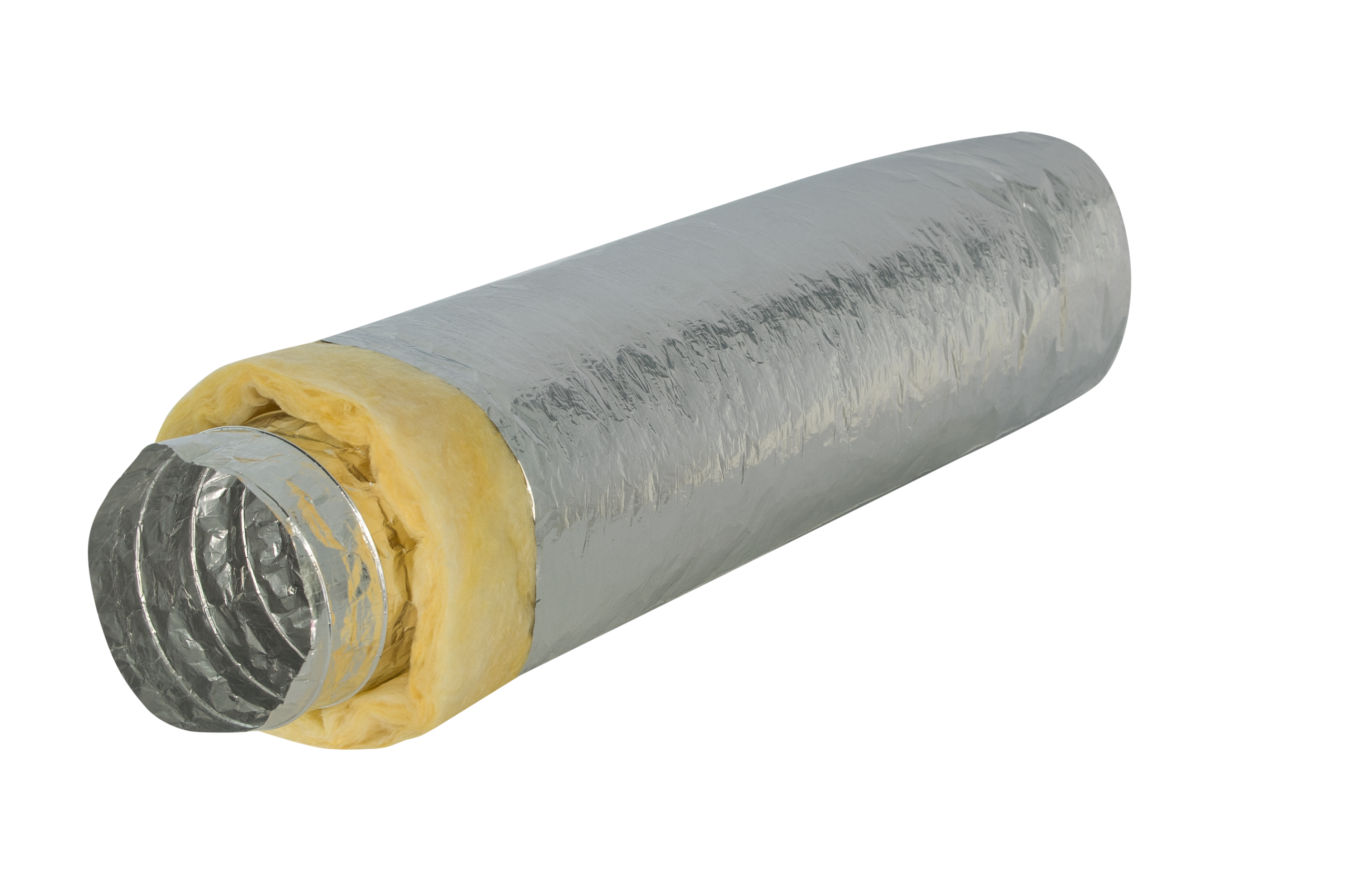

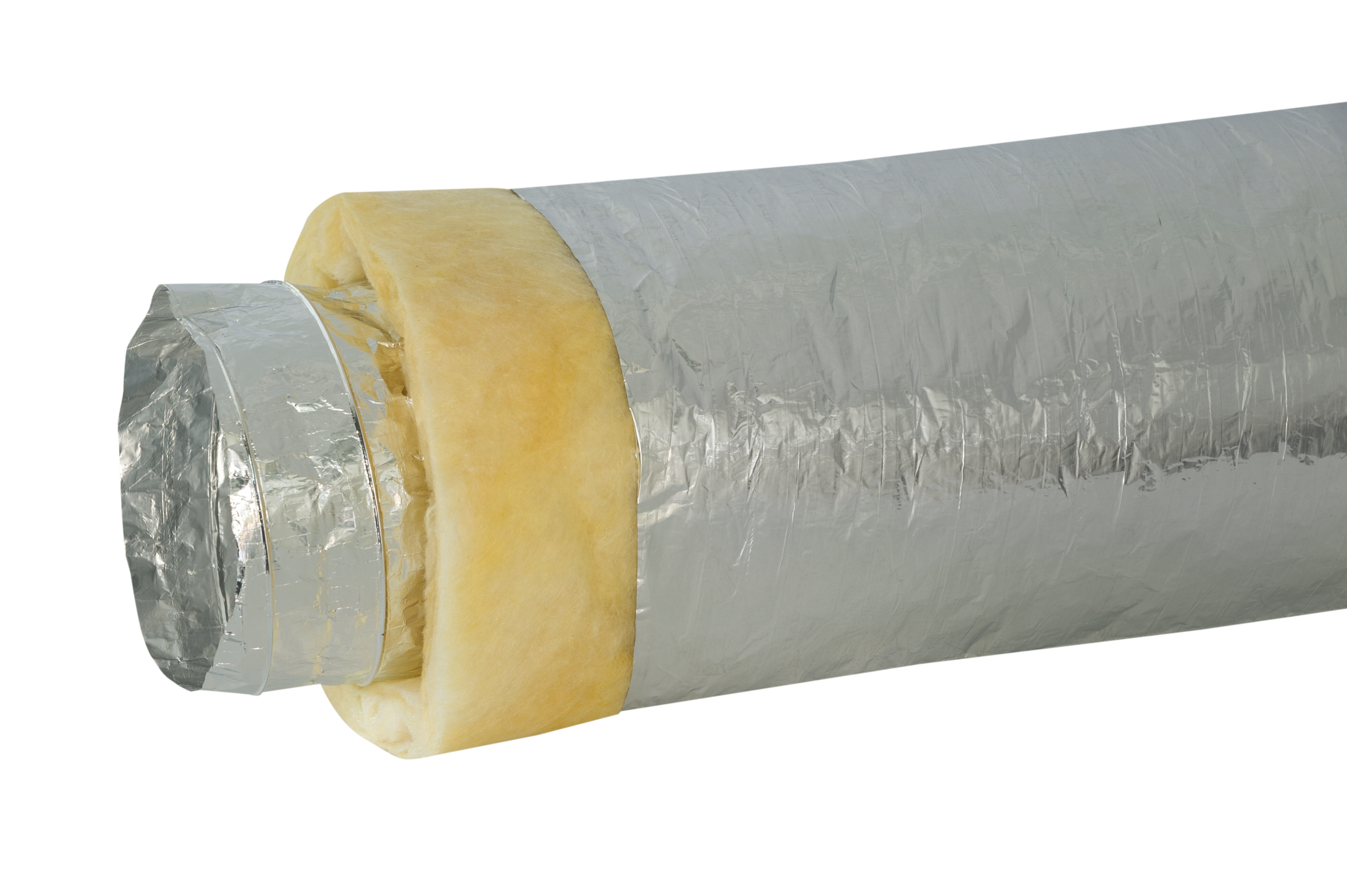

The Isodec 25 consists of an aluminium laminate inner duct, thermally insulated with a glass wool layer and provided with an aluminium laminated outer jacket.
The thermal insulation is suitable for preventing condensation and minimizing heat loss and loss of cold.
APPLICATIONS:
– Insulation in air supply systems
– Air conditioning systems
– Thermal insulation to prevent heat or cold loss
– Condensation prevention/drainage
TECHNICAL INFORMATION:
Diameter Ø: 102 / 127 / 160 / 203 / 254 / 315 mm
Length: 10 m
Glass wool insulation: 25 mm, 16 kg/m³
Temperature range: -30°C to +140°C
Maximum pressure: 2500 Pa
Operating air velocity: max 30 m/s
CONSTRUCTION:
Inner duct: aluminum / polyester laminate
Outer jacket: aluminum / polyester laminate
Insulation: glass wool
Material: aluminum
AVAILABLE
ISODEC 25 – 102mm/10m
ISODEC 25 – 127mm/10m
ISODEC 25 – 160mm/10m
ISODEC 25 – 203mm/10m
ISODEC 25 – 254mm/10m
ISODEC 25 – 315mm/10m
| Product type | |
|---|---|
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Product diameter (mm) | , , , , , |
