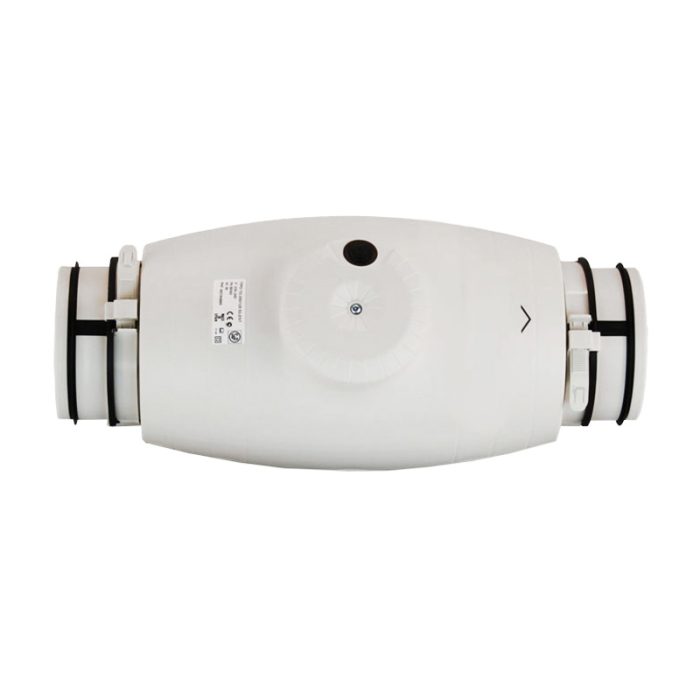

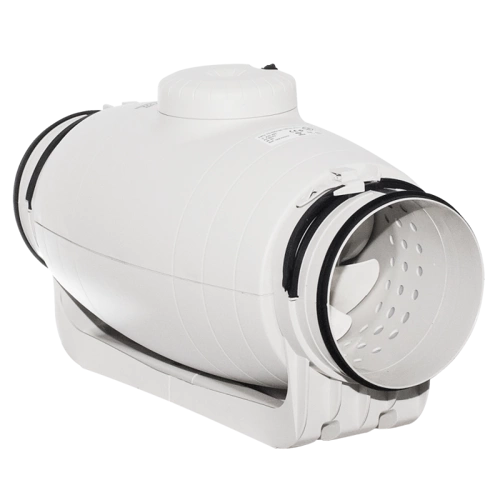

TD-1000/200 SILENT 3V Soler&Palau in-line mixed flow duct fan

The Soler & Palau TD-1000/200 SILENT 3V is part of the internationally recognized TD-SILENT range, offering one of the quietest and most energy-efficient inline duct fans available today.
This fan is designed for industrial, commercial, and residential ventilation systems where high airflow and extremely low sound levels are required.

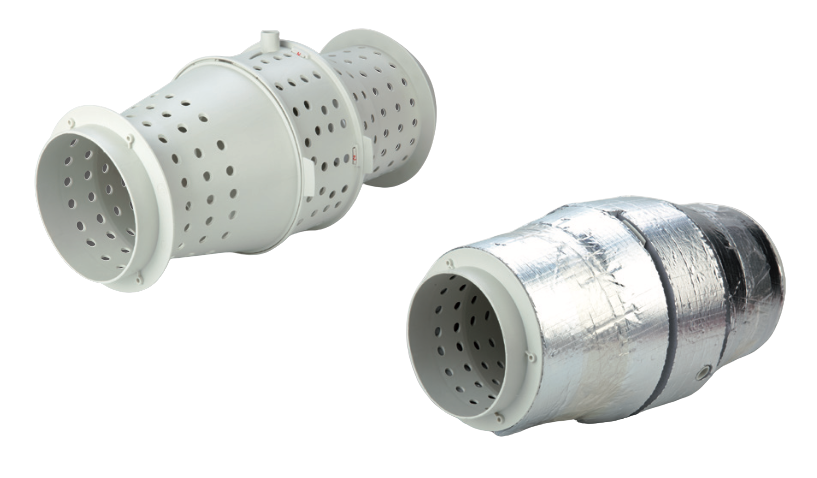

Manufactured from high-quality plastic, it features a specially engineered internal skin that directs sound waves at the optimal angle to be absorbed by the built-in sound-insulating material. This innovative acoustic design minimizes both vibration and noise while delivering smooth, efficient air movement.

The aerodynamic housing enhances airflow performance and reduces pressure loss, making it suitable for confined installations such as ceiling voids or long duct runs.

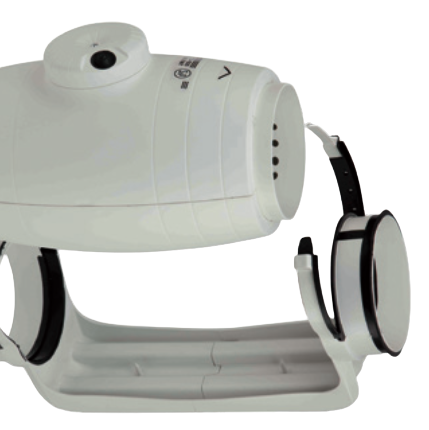

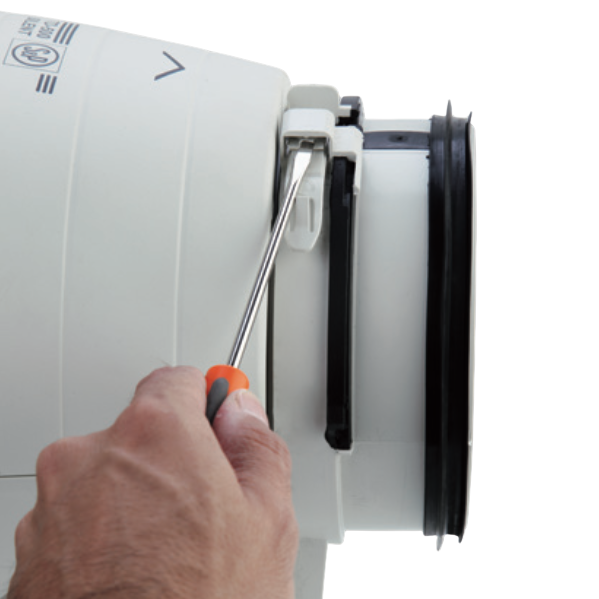

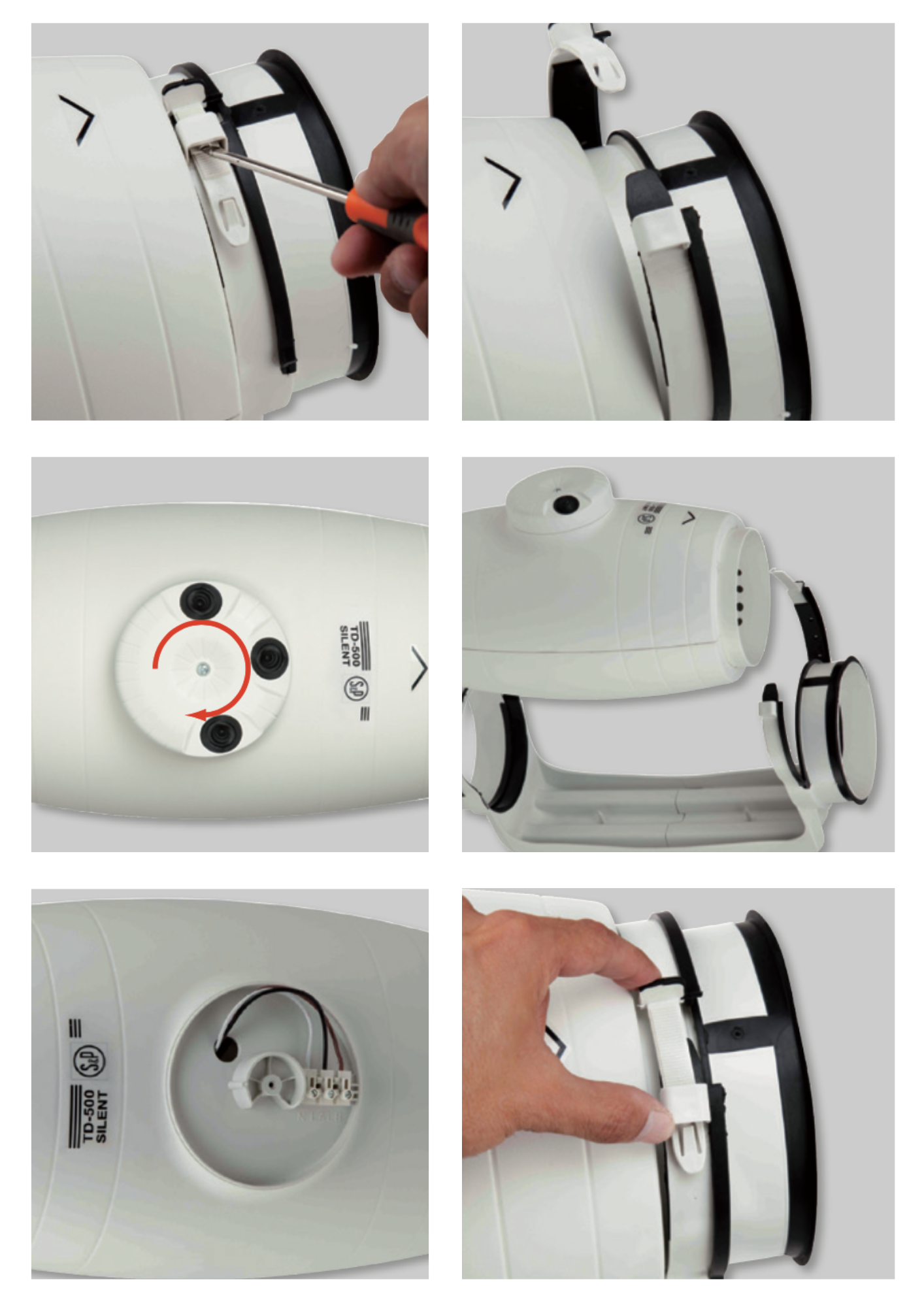

Rubber gaskets on the inlet and outlet absorb vibration and ensure airtight sealing. The removable fan body allows easy maintenance without dismantling the ductwork, and the 360° rotatable connection box simplifies power cable installation in any position.

Driven by a 230 V – 50 Hz speed-controllable motor, the TD-1000/200 SILENT includes three adjustable speeds, ball bearings, and thermal overload protection for long-lasting reliability. The IP44 rating provides safety and durability even under continuous use.

Thanks to its low noise certification from the Noise Abatement Society, this fan is ideal for spaces where people work or relax for long hours — such as offices, meeting rooms, kitchens, restaurants, bathrooms, and HVAC systems requiring continuous, silent air extraction.

The TD-1000/200 SILENT 3V offers the perfect balance between airflow performance, low noise, and energy efficiency. Easy to install, safe to maintain, and engineered for long-term operation, it’s the ideal choice for modern HVAC and air extraction systems.

Made in Spain

Technical information:

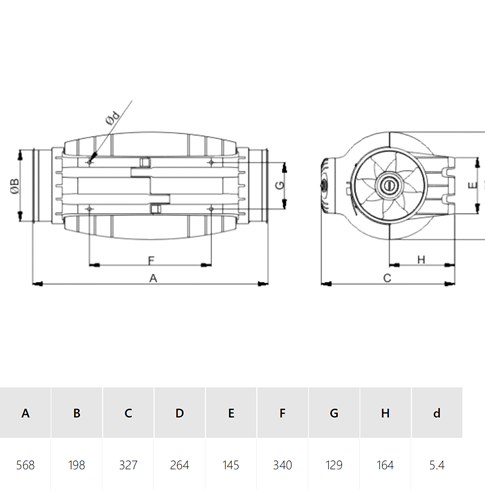

Connection diameter: 200 (mm)
3-speed motor
Speed: 1920/2210/2450 (r.p.m.)
Airflow capacity: 790/910/1040 (m³/h)
Sound level : 24/27/28 (dB(A))
Power consumption: 122/127/130 (W)
Temperature range: -20 to + 60 (°C)
Maximum absorbed current: 0,53/0,55/0,55 (A)
Voltage: 230 (V)
Frequency: 50 (Hz)
IP rating: IP 44
Motor Class B
Ball bearings motor

AVAILABLE:
Soler&Palau TD-SILENT Series:
TD-160/100 N SILENT
TD-160/100 NT SILENT (run-on timer)
TD-250/100 SILENT
TD-250/100 SILENT T (run-on timer)
TD-350/125 SILENT
TD-350/125 SILENT T (run-on timer)
TD-500/150-160 SILENT 3V
TD-500/150-160 SILENT T 3V (run-on timer)
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V (run-on timer)
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T 3V (run-on timer)
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V

* TD-SILENT T versions fitted with a run-on- timer adjustable within 1 – 30 minutes
