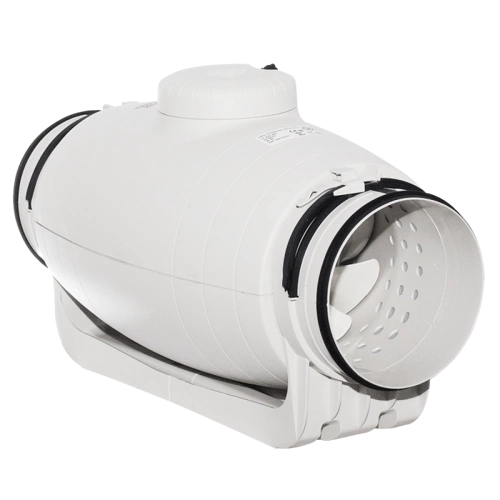

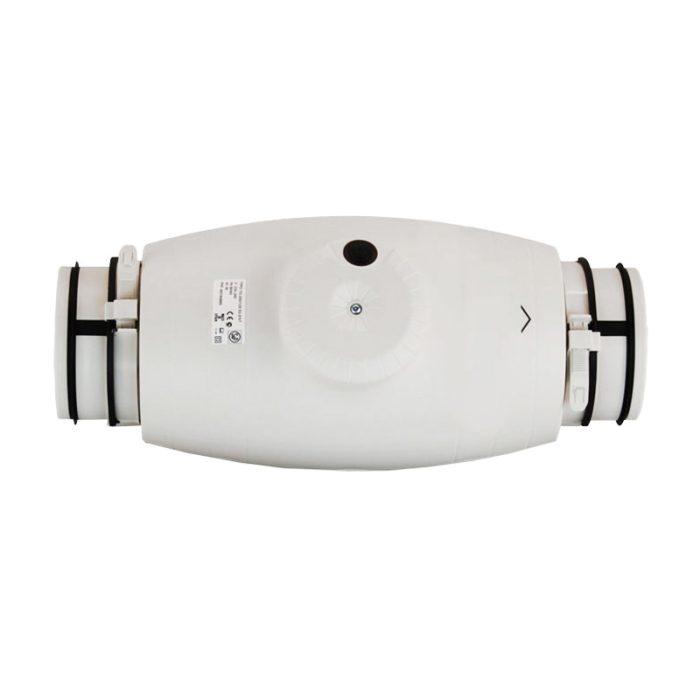

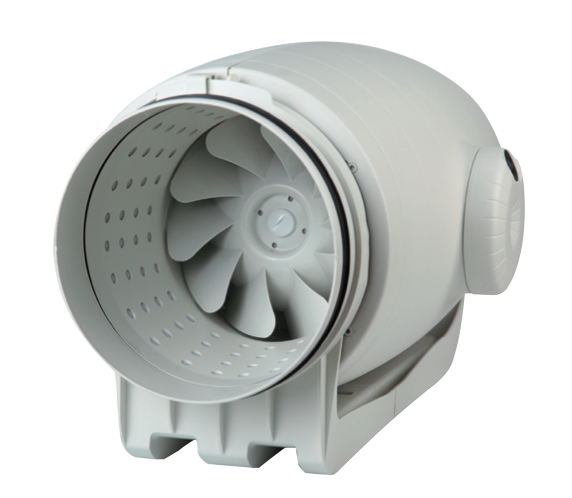

TD-1000/200 SILENT T 3V Soler & Palau in-line mixed flow duct fan with timer
€383.45
The Soler & Palau TD-1000/200 SILENT T 3V is an ultra-quiet mixed-flow inline duct fan with timer designed for efficient, low-noise ventilation in homes, offices, and commercial environments. Made from durable plastic with sound-absorbent insulation, it delivers strong airflow up to 1040 m³/h while maintaining very low noise levels (24–29 dB(A)). Equipped with a 3-speed controllable motor, ball bearings, rubber seals for vibration reduction, and a 360° rotatable junction box, it ensures reliable, easy installation and long-term silent performance. Ideal for bathrooms, kitchens, workshops, and HVAC systems requiring continuous, energy-efficient airflow.
The Soler & Palau TD-1000/200 SILENT T 3V is an ultra-quiet mixed-flow in-line duct fan equipped with an adjustable run-on timer (1–30 minutes), making it the ideal solution for energy-efficient, low-noise ventilation in residential, commercial, and industrial spaces.
As part of the TD-SILENT range, this model is recognized by the Noise Abatement Society for its exceptionally quiet performance and innovative acoustic design.

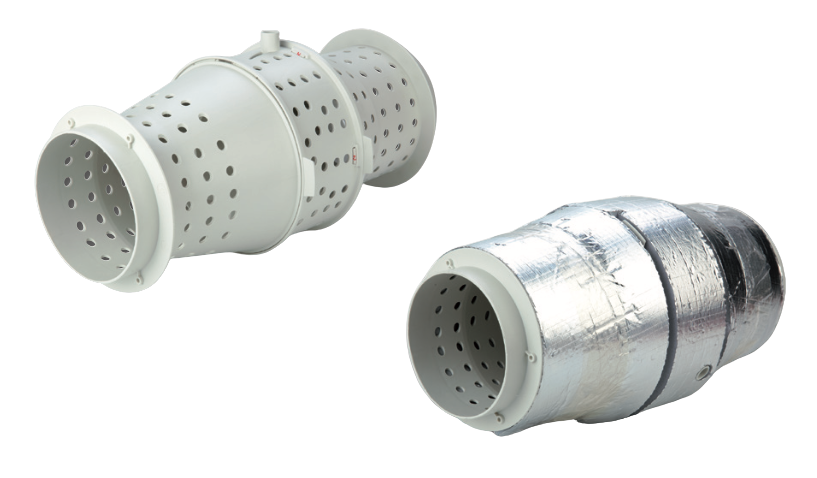

Manufactured from high-quality, impact-resistant plastic, the TD-1000/200 SILENT T 3V incorporates a specially engineered internal skin that directs sound waves at the optimal angle for absorption by the sound-insulating materialinside the housing. This intelligent design minimizes vibration and reduces sound transmission while maintaining smooth and powerful airflow.

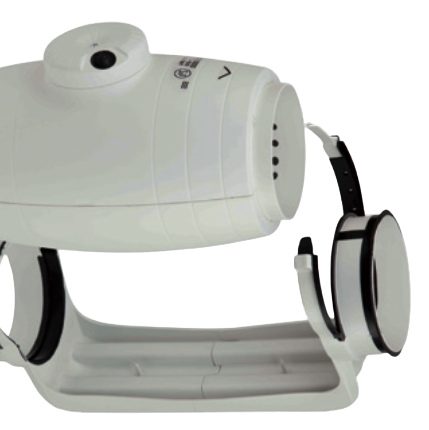

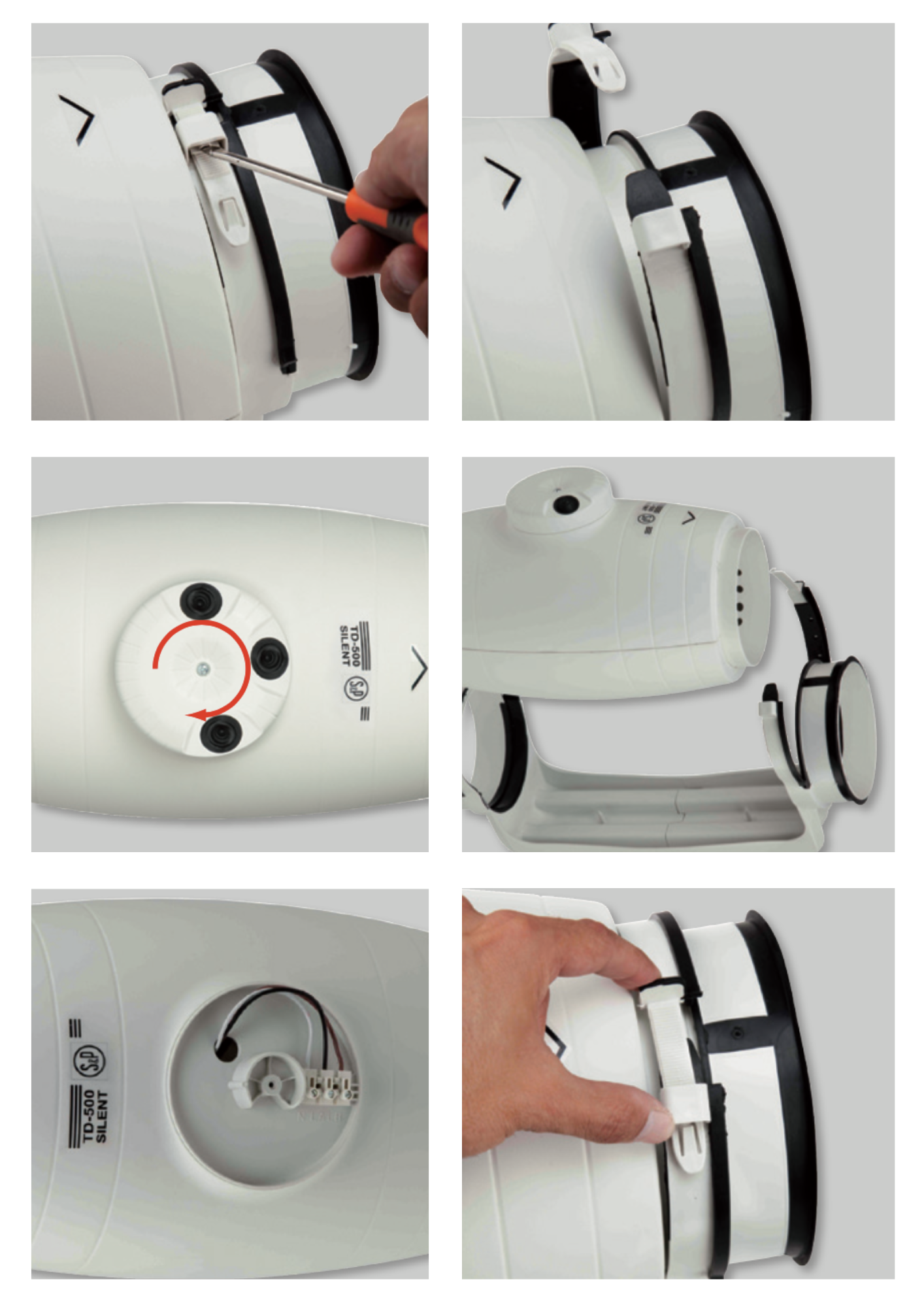

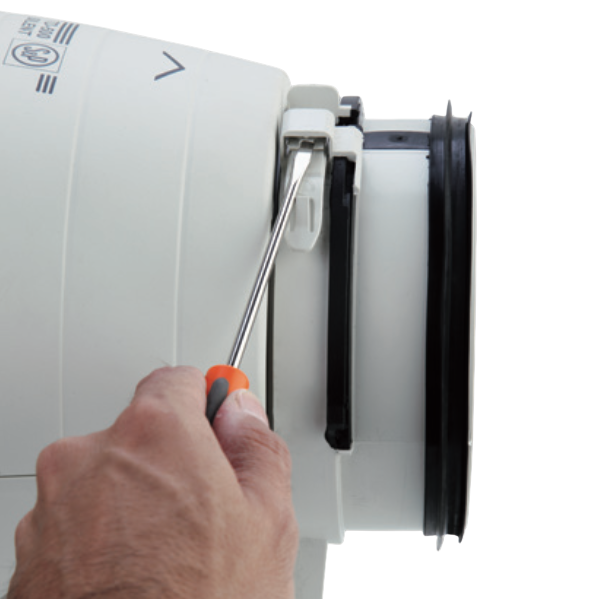

Fitted with rubber gaskets on both the inlet and outlet, the fan absorbs vibration and ensures airtight, stable connections. The removable fan body simplifies cleaning and maintenance without the need to disconnect the ducting. A 360° rotatable junction box allows for quick and flexible electrical connections, reducing installation time.
Powered by a 3-speed, speed-controllable motor (230 V – 50 Hz) with ball bearings, thermal overload protection, and IP44 rating, the TD-1000/200 SILENT T 3V offers long-lasting, quiet, and efficient operation even under continuous use.
The integrated adjustable timer provides added comfort and control — allowing the fan to continue operating for 1 to 30 minutes after the power is switched off. This feature helps maintain optimal air quality and humidity control, making it perfect for bathrooms, kitchens, offices, meeting rooms, and HVAC systems requiring reliable, low-noise air extraction.
Combining silent performance, smart timer functionality, and robust energy-efficient construction, the TD-1000/200 SILENT T 3V is the perfect choice for modern ventilation systems that demand reliability, low noise, and user comfort.
Made in Spain by Soler & Palau (S&P) — a global leader in innovative, energy-efficient ventilation solutions.
Technical information:
Functions: Run-on-timer (1-30min)
Connection diameter: 200 mm
3-speed motor
Speed: 1920/2210/2450 (r.p.m.)
Airflow capacity: 790/910/1040 (m³/h)
Sound level: 24/27/29 (dB(A))
Power consumption: 122/127/130 (W)
Temperature range: -20 to + 60 (°C)
Maximum absorbed current: 0,53/0,55/0,55 (A)
Voltage: 230 (V)
Frequency: 50 (Hz)
IP rating: IP 44
Motor Class B
Ball bearings motor
Weight: 8.7 (kg)
Soler&Palau TD-SILENT Series:
TD-160/100 N SILENT
TD-160/100 NT SILENT (run-on timer)
TD-250/100 SILENT
TD-250/100 SILENT T (run-on timer)
TD-350/125 SILENT
TD-350/125 SILENT T (run-on timer)
TD-500/150-160 SILENT 3V
TD-500/150-160 SILENT T 3V (run-on timer)
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V (run-on timer)
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T 3V (run-on timer)
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V
* TD-SILENT T versions fitted with a run-on- timer adjustable within 1 – 30 minutes
| Weight | 8.7 kg |
|---|---|
| Dimensions | 630 × 330 × 390 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions | , |
