TD-2000/315 SILENT 3V Soler&Palau in-line mixed flow duct fan
€886.08
The Soler & Palau TD-2000/315 SILENT 3V is a high-performance, ultra-quiet mixed-flow inline duct fan designed for industrial, commercial, and residential ventilation systems that require powerful airflow with minimal noise. Made from epoxy-coated steel with glass fibre acoustic insulation, this sound-insulated inline fan delivers exceptional airflow up to 1770 m³/h while maintaining low noise levels (36–39 dB(A)). Certified by the Noise Abatement Societyfor its quiet operation. The aerodynamic inlet improves efficiency and reduces turbulence, while the removable motor body enables easy cleaning without dismantling ducts. An IP55-rated external terminal box ensures safe, reliable installation. Perfect for offices, workshops, restaurants, and HVAC systems requiring continuous, energy-efficient, low-noise air extraction.
The Soler & Palau TD-2000/315 SILENT 3V is a powerful yet ultra-quiet mixed-flow inline duct fan designed for demanding industrial, commercial, and residential ventilation systems. Part of the globally recognized TD-SILENT series, it delivers high airflow performance (up to 1770 m³/h) while maintaining exceptionally low noise levels, certified by the Noise Abatement Society for quiet operation.
Built with sheet steel casing coated in epoxy polyester paint, this fan features acoustic glass-fibre insulation within the outer shell to absorb vibrations and reduce sound transmission.
Its aerodynamic inlet design enhances airflow efficiency while minimizing turbulence and resistance, making it ideal for installations that require continuous operation and low noise, such as offices, workshops, kitchens, restaurants, and HVAC systems.
The TD-2000/315 SILENT 3V incorporates:
– Removable fan body for easy maintenance without dismantling the duct system.
– Three-speed motor (230 V / 50–60 Hz) with integrated speed control and thermal protection.
– External rotor aluminium motor (Class F) ensuring reliability and energy efficiency.
– IP44 motor protection and IP55 external terminal box for safe operation in demanding environments.
This fan is equipped with sound-absorbent materials that channel sound waves through a perforated inner layer, where they are captured by the insulation. This design reduces operational noise to only 36 – 39 dB(A) — ensuring silent, comfortable airflow even during extended use.
The TD-2000/315 SILENT is suitable for: Continuous or intermittent ventilation of commercial and industrial spaces,HVAC systems requiring low-noise, high-capacity air movement, ceiling void or confined-space installations, noise-sensitive environments where comfort and acoustic control are critical.
Technical information:
3-speed motor
Diameter(mm): 315
Airflow capacity (m³/h): 1480/1610/1770
Sound level (dB(A)): 36/38/39
Power consumption (W): 190/232/293
Temperature range (°C): -40 to + 60
Maximum absorbed current (A): 0,78/0,97/1,25
Voltage (V): 230
Frequency (Hz): 50
IP rating: IP 44
Motor Class B
AVAILABLE:
Soler&Palau TD-SILENT Series:
TD-160/100 N SILENT
TD-160/100 NT SILENT (run-on timer)
TD-250/100 SILENT
TD-250/100 SILENT T (run-on timer)
TD-350/125 SILENT
TD-350/125 SILENT T (run-on timer)
TD-500/150-160 SILENT 3V
TD-500/150-160 SILENT T 3V (run-on timer)
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V (run-on timer)
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T 3V (run-on timer)
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V
| Weight | 26.5 kg |
|---|---|

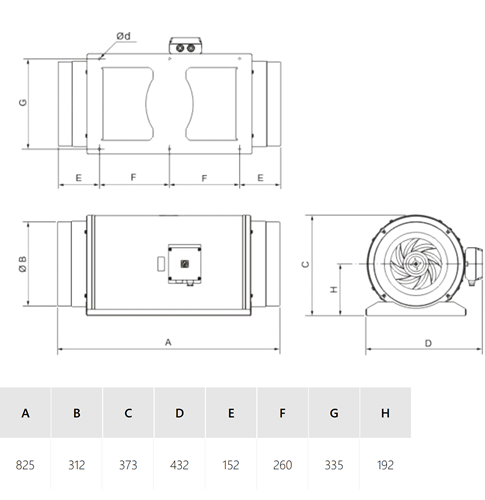

| Dimensions | 890 × 455 × 390 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions |
