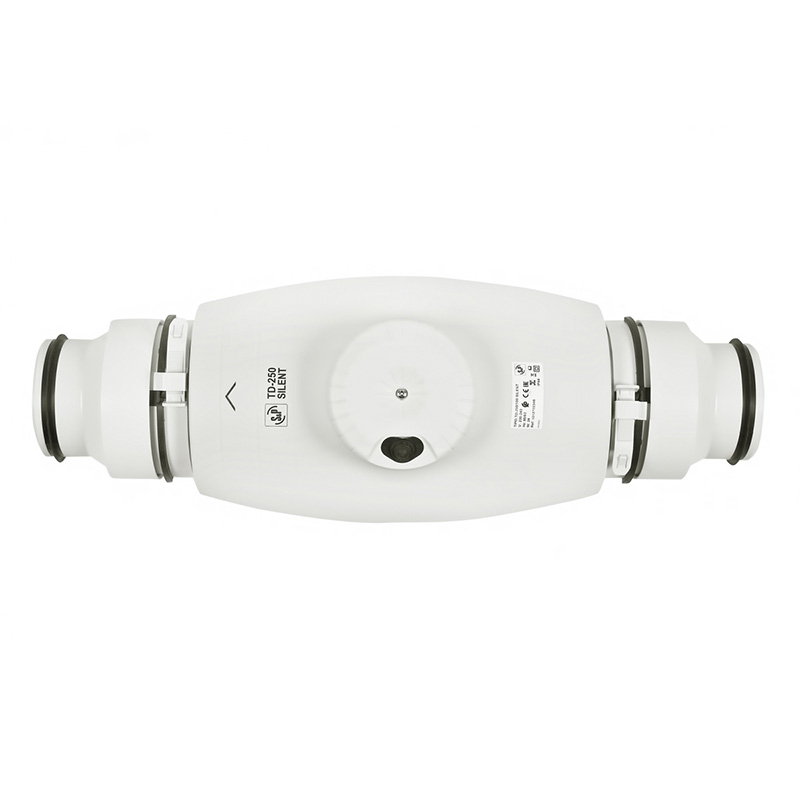

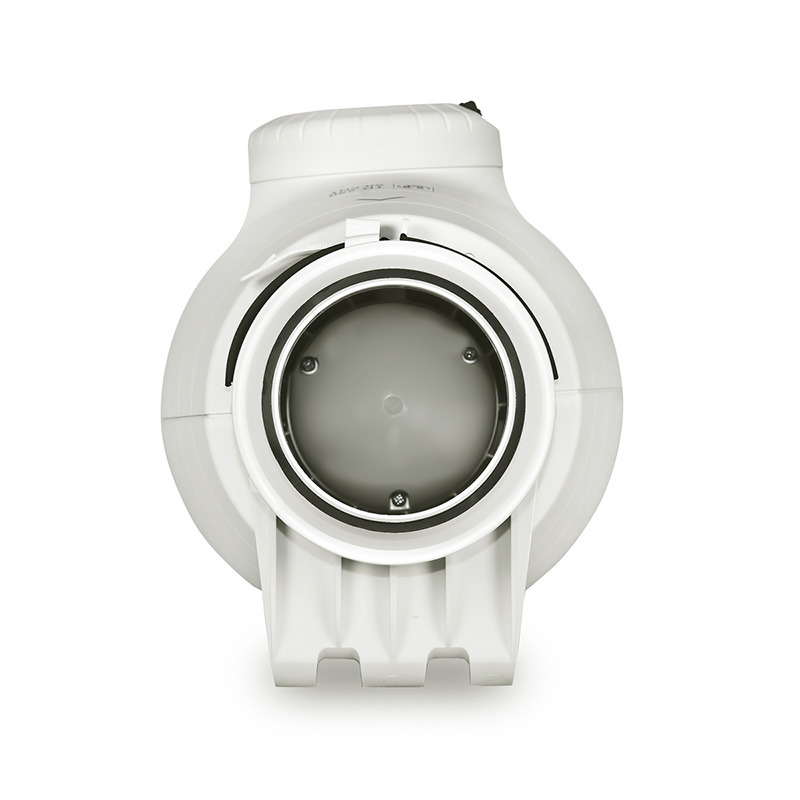

TD-250/100 SILENT Soler&Palau mixed flow in-line duct fan ultra-quiet
€147.50

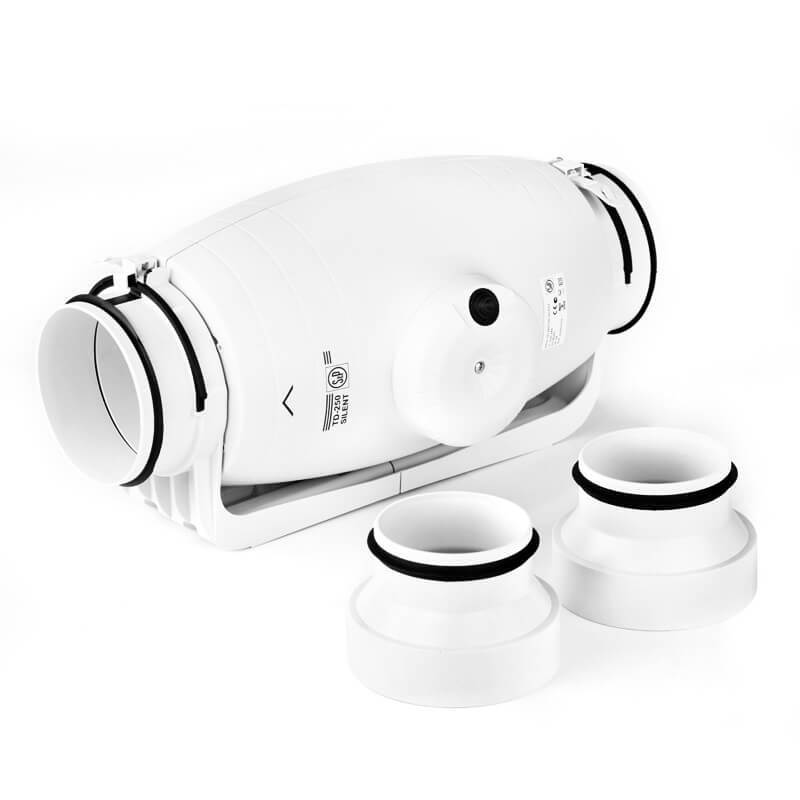

S&P TD-250/100 SILENT low profile mixed-flow fan with a two-speed motor, sound- absorbent insulation. Extremely quiet (20/25 dB(A)). Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves at the right angle for them to be captured by the sound-absorbent material. Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, a body that can be dismantled. TD-250/100 SILENT connection box can be rotated 36oº, to facilitate easy connection of the power cable.

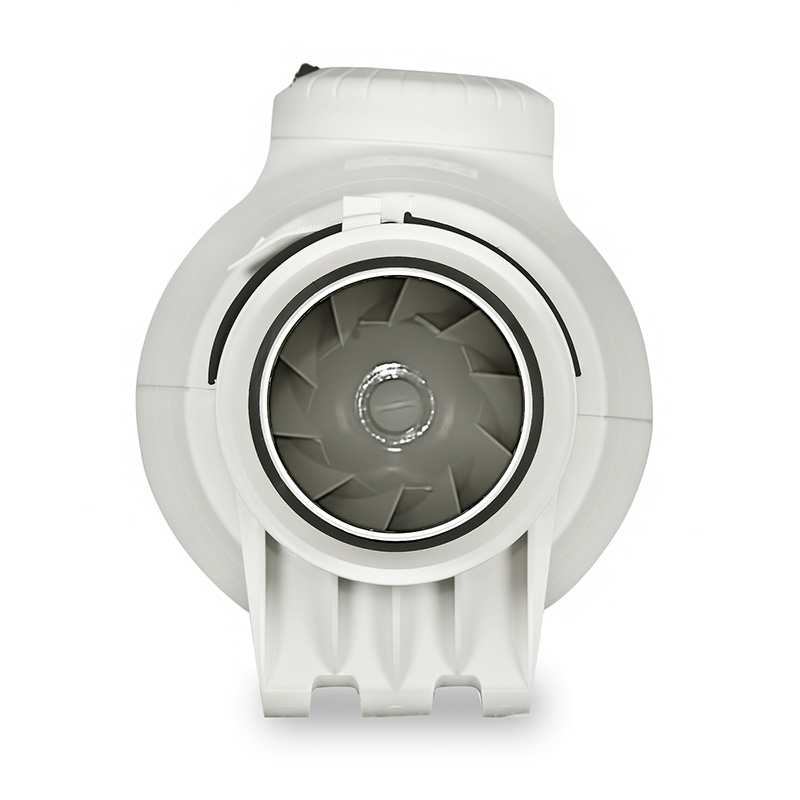

The Soler & Palau TD-250/100 SILENT is an ultra-quiet mixed-flow in-line fan with a two-speed motor. It features a 360º rotatable casing, an ABS impeller, Class II protection, and a thermal fuse. Due to its flexibility it can be used in a multitude of small or medium fan installations.
The low profile of the TD-250/100 SILENT fan make it the most effective solution for installations where space is very limited, especially in ceiling voids. Especially in places where working people and the ventilation system works for many hours, in these cases the sound level becomes an essential element for comfort.

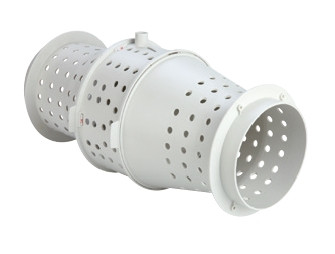

Sound waves produced inside the TD-250/100 SILENT, are directed through the perforated inner skin and absorbed by the layer of sound absorbent material
Support bracket for installing on a wall or ceiling, incorporating twin- material support brackets for the motor section that absorbs vibration.
Removable motor-body assembly to easy cleaning and re-pairing without touching the ducts. Support plastic brackets simplify the operation.
Technical Information:
Two speed motor
Connection diameter: 100 mm
Airflow capacity: 200/250 m³/h
Sound level: 20/25 dB(A)
Power consumption: 21/27 W
Temperature range: -20 to + 40 °C
Maximum absorbed current: 0,1/0,12 A
Voltage: 230 V
Frequency: 50 Hz
IP rating: IP 44
Motor Class B
Ball bearings greased for life.
AVAILABLE:
Soler&Palau TD-SILENT Series:
TD-160/100 N SILENT
TD-160/100 NT SILENT (run-on timer)
TD-250/100 SILENT
TD-250/100 SILENT T (run-on timer)
TD-350/125 SILENT
TD-350/125 SILENT T (run-on timer)
TD-500/150-160 SILENT 3V
TD-500/160 SILENT T 3V (run-on timer)
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V (run-on timer)
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T3V (run-on timer)
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V
* TD-SILENT T versions fitted with a run-on- timer adjustable within 1 and 30 minutes
| Weight | 5.2 kg |
|---|---|
| Dimensions | 643 × 274 × 327 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions |
