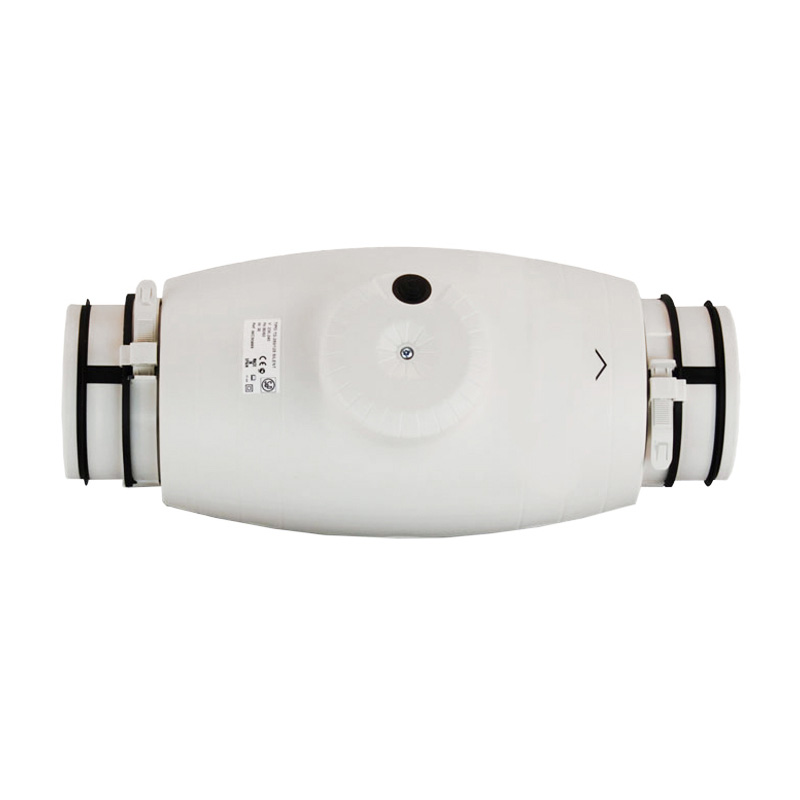

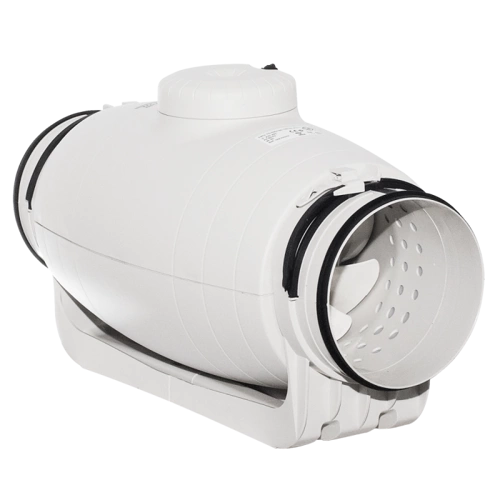

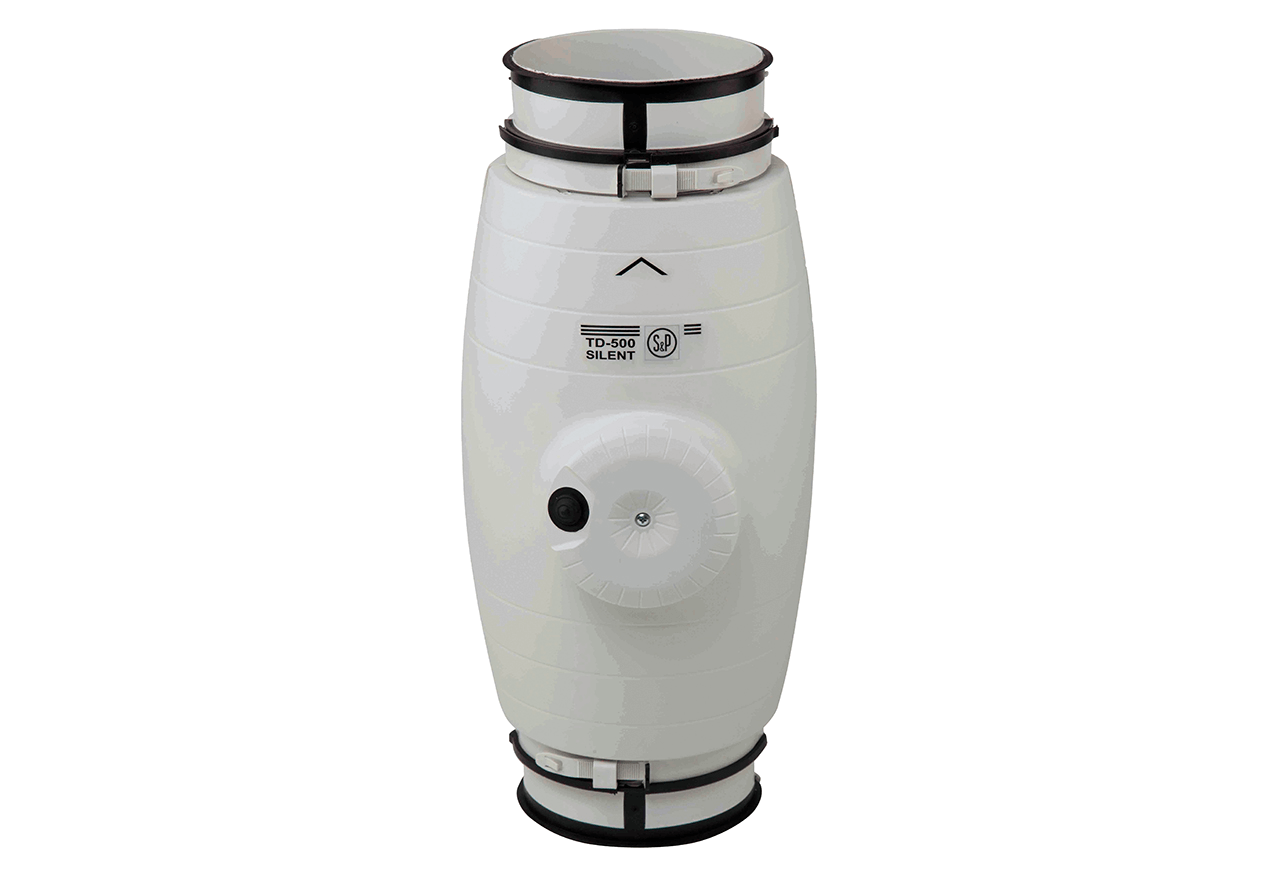

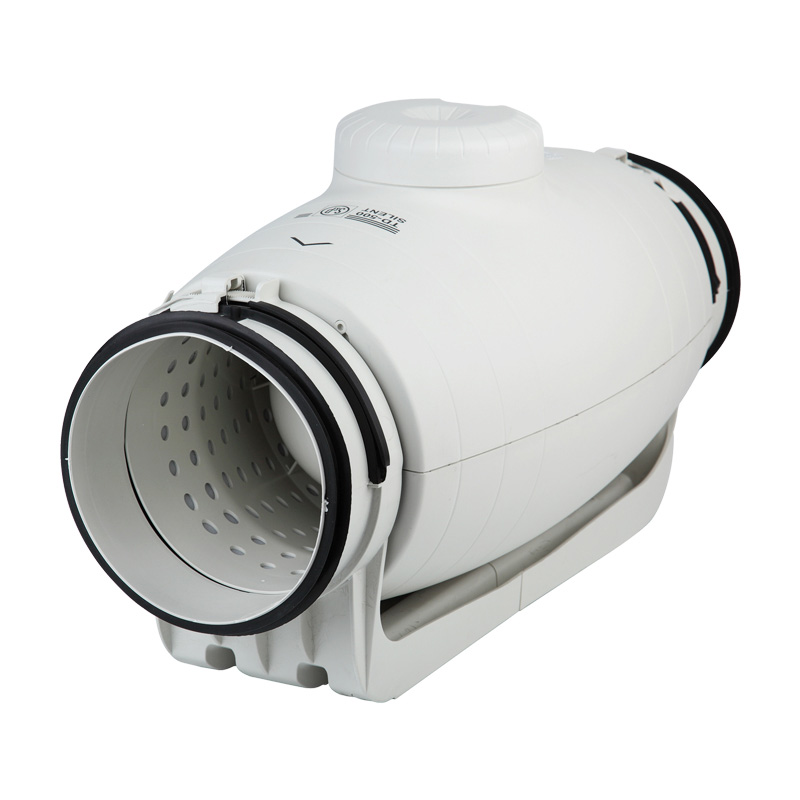

TD-500/150-160 SILENT 3V Soler&Palau in-line mixed flow duct fan
€204.37
The Soler & Palau TD-500/150-160 SILENT 3V is an ultra-quiet mixed-flow inline duct fan designed for high-performance, low-noise ventilation. Featuring sound-absorbent insulation, a compact low-profile design, and a removable motor body, it’s perfect for residential and commercial installations where silence and efficiency matter most. Rubber gaskets reduce vibration, and the 360° rotatable junction box ensures easy connection and maintenance. Ideal for bathrooms, offices, kitchens, and ceiling spaces requiring continuous, energy-efficient airflow.
The Soler & Palau TD-500/150-160 SILENT 3V is an ultra-quiet mixed-flow inline duct fan designed for residential and commercial ventilation systems where performance, efficiency, and silence are essential. As part of the renowned TD-SILENT range, it delivers exceptional airflow with minimal sound — making it one of the most advanced low-noise fans on the market.
This model combines innovative acoustic insulation with high-efficiency airflow technology, ensuring reliable operation in areas where people work or spend long hours — offices, bathrooms, kitchens, meeting rooms, or small commercial spaces.

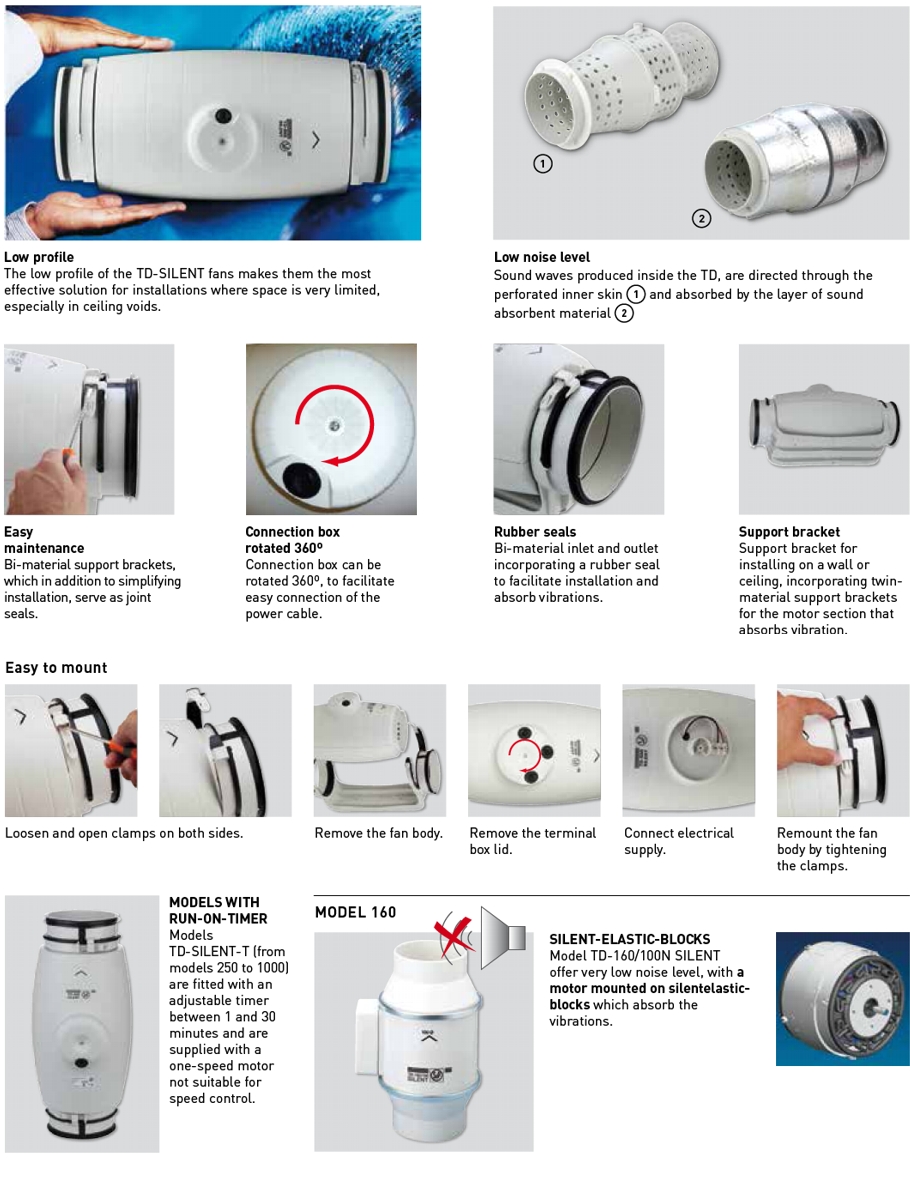

Sound-absorbing construction: Sound waves generated inside the fan are directed through a perforated inner skin and absorbed by a special sound-insulating material, achieving noise levels as low as 17/22/27 dB(A).
Low-profile housing: Compact polypropylene body enables installation in tight ceiling voids or limited spaces without compromising airflow.
Vibration-damping support brackets: Twin-material brackets absorb vibrations, providing stable and silent operation.
Removable motor body: Quick and easy cleaning or servicing without dismantling the duct system — ideal for professional maintenance.
360° rotatable junction box: Simplifies electrical connection and installation.
Technical information:
3-speed motor
Diameter(mm): 150/160
Airflow capacity (m³/h): 350/450/550
Sound level (dB(A)): 17/22/27
Power consumption (W): 45/50/59
Temperature range (°C): -20 to + 60
Maximum absorbed current (A): 0,2/0,22/0,26
Voltage (V): 230
Frequency (Hz): 50
IP rating: IP 44
Motor Class B
AVAILABLE Soler&Palau TD-SILENT Series:
TD-160/100 N SILENT
TD-160/100 NT SILENT (run-on timer)
TD-250/100 SILENT
TD-250/100 SILENT T (run-on timer)
TD-350/125 SILENT
TD-350/125 SILENT T (run-on timer)
TD-500/150-160 SILENT 3V
TD-500/150-160 SILENT T 3V (run-on timer)
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V (run-on timer)
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T 3V (run-on timer)
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V
| Weight | 6 kg |
|---|---|

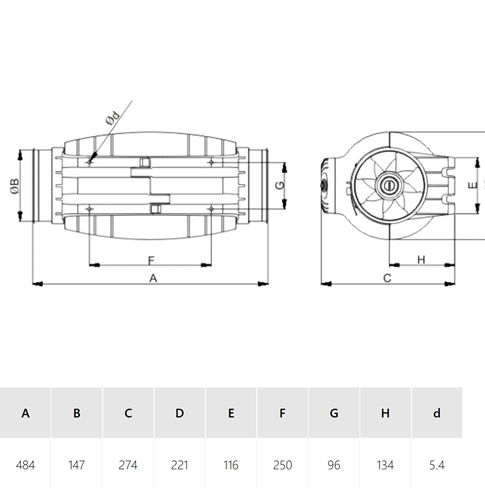

| Dimensions | 548 × 288 × 356 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions |
Related products

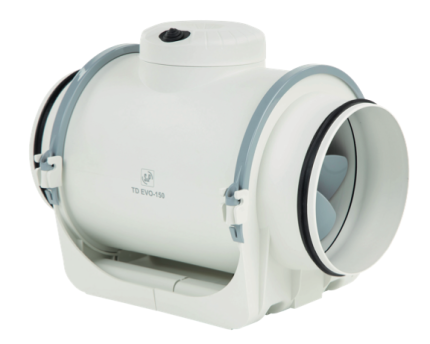

In-line mixed flow duct fan Soler&Palau TD EVO-160

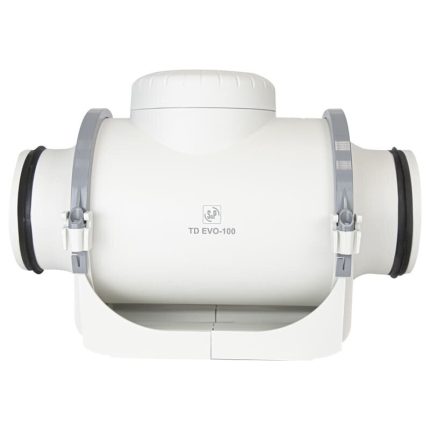

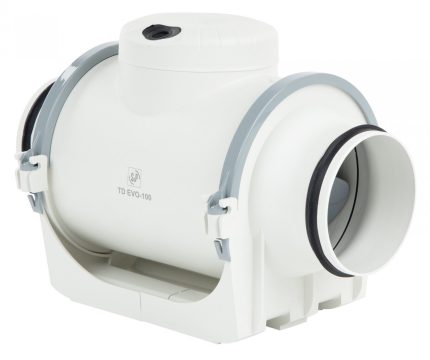

In-line mixed flow duct fan TD EVO-100
