TD-800/200 SILENT 3V Soler&Palau in-line mixed flow duct fan
€268.50
The Soler & Palau TD-800/200 SILENT 3V is an ultra-quiet mixed-flow inline duct fan designed for efficient, low-noise ventilation in residential, commercial, and industrial spaces. Made from high-quality plastic with sound-absorbent insulation, it delivers powerful airflow up to 910 m³/h with minimal noise (22–28 dB(A)). Features include three-speed control, ball bearing motor with thermal protection, rubber seals for vibration absorption, and a 360° rotatable junction box for easy installation.
Perfect for bathrooms, offices, workshops, and ceiling voids requiring continuous, energy-efficient airflow.
The Soler & Palau TD-800/200 SILENT 3V is a low-profile, ultra-quiet mixed-flow inline duct fan from the renowned TD-SILENT range, specifically engineered to deliver powerful and silent air movement for homes, offices, and commercial environments.
This model combines energy efficiency, acoustic insulation, and ease of installation, making it one of the most reliable ventilation solutions on the market. It is certified by the Noise Abatement Society for its exceptionally low noise level, ensuring quiet comfort even during continuous operation.

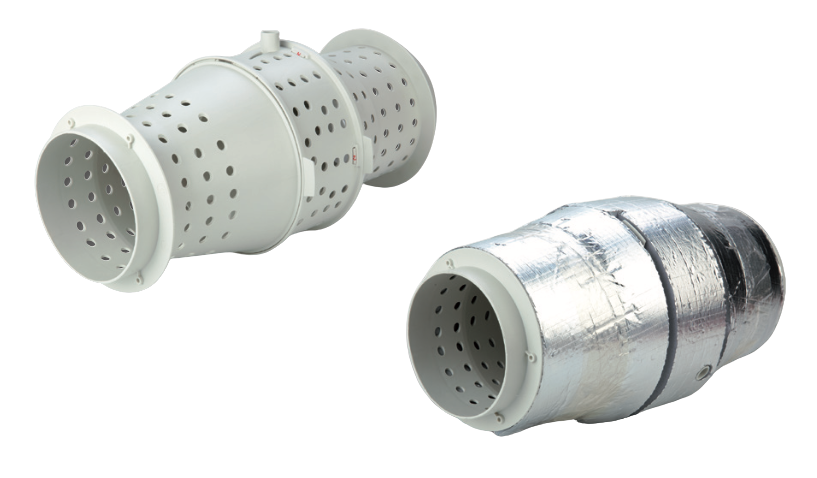

Constructed from durable, high-grade plastic, the TD-800/200 SILENT 3V features an aerodynamically designed internal skin that channels sound waves at the ideal angle for absorption by the sound-insulating material. This innovative design minimizes noise and vibration while maximizing airflow efficiency.

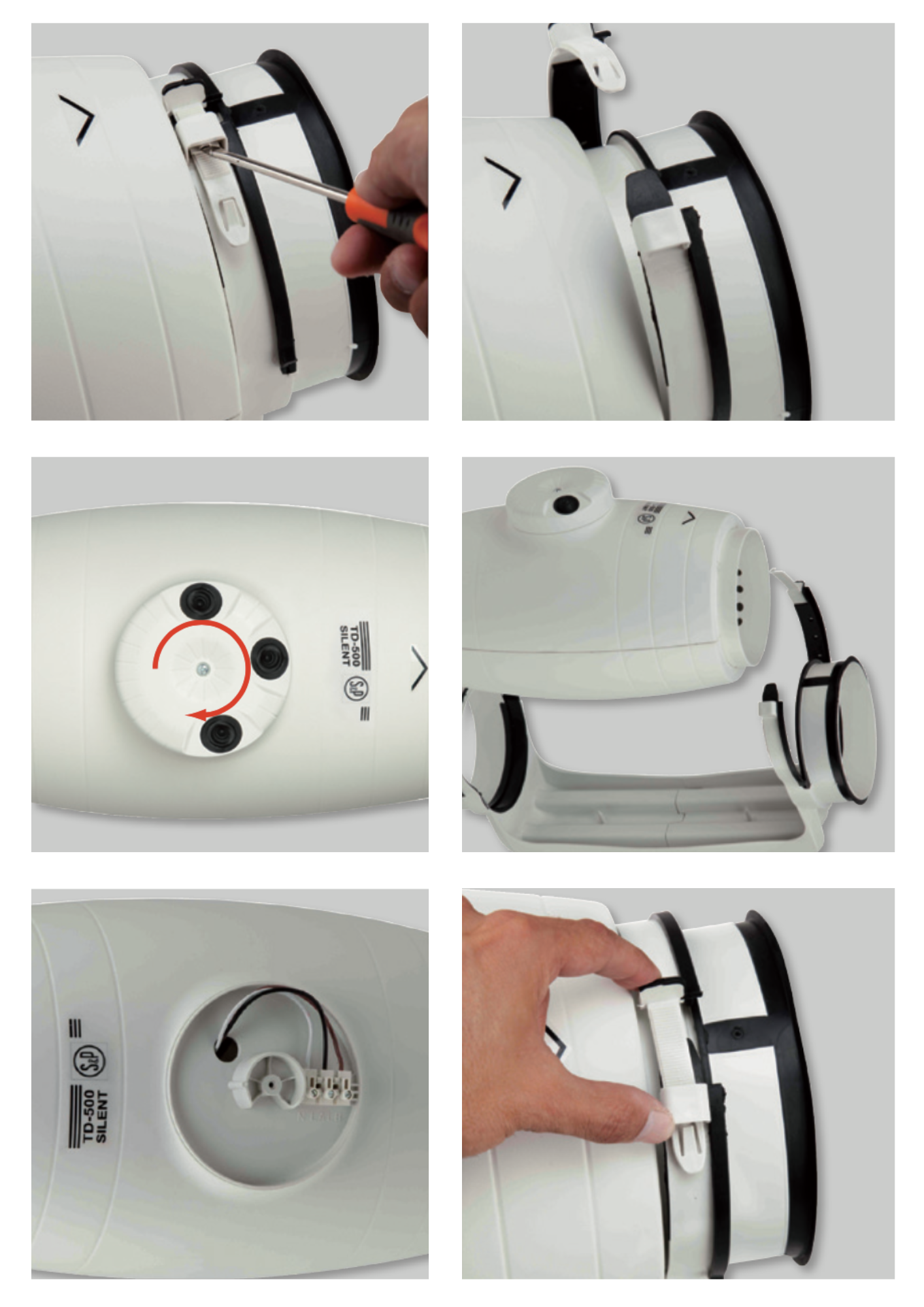

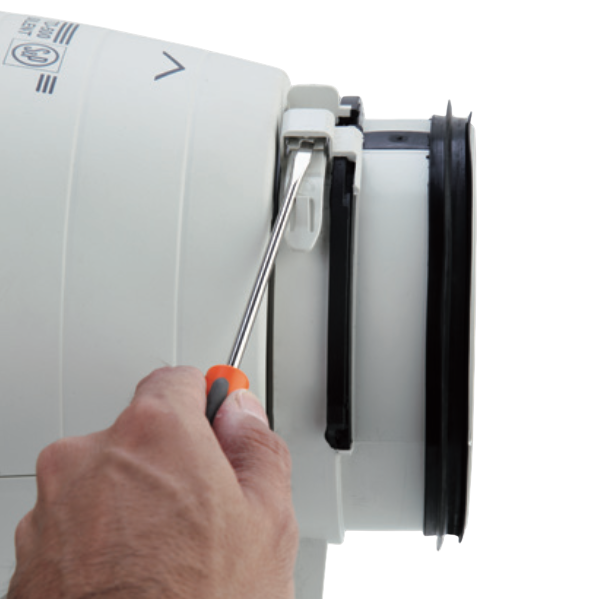

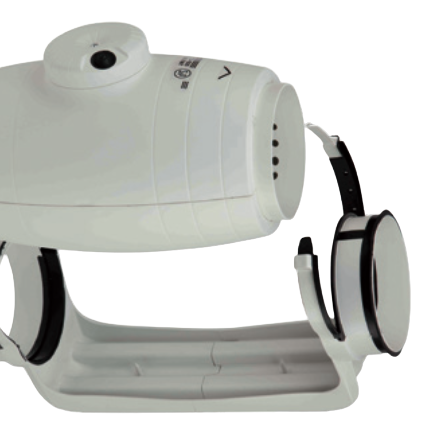

Equipped with rubber gaskets on both the inlet and outlet, the fan effectively absorbs vibrations and provides a secure, airtight fit. The removable fan body simplifies maintenance and cleaning without dismantling duct connections, while the 360° rotatable connection box allows flexible electrical wiring for quick, professional installation.
The three-speed 230V-50Hz motor is speed-controllable, fitted with ball bearings, thermal overload protection, and rated IP44 for safe, long-term operation. This makes the TD-800/200 SILENT ideal for spaces where people work or live for long hours, such as bathrooms, meeting rooms, kitchens, workshops, and HVAC systems that demand continuous, low-noise air extraction.
The TD-800/200 SILENT 3V offers the perfect balance between performance, silence, and efficiency. It is easy to install, energy-saving, and engineered for durability — making it the ideal solution for modern ventilation systems in both residential and commercial buildings.
Made in Spain.
Technical information:
3-speed motor
Connection diameter: 200 (mm)
Airflow capacity: 690/780/910 (m³/h)
Sound level: 22/24/28 (dB(A))
Power consumption: 90/92/102 (W)
Temperature range: -20 to + 60 (°C)
Maximum absorbed current: 0,46/0,47/0,5 (A)
Voltage: 230 (V)
Frequency: 50 (Hz)
IP rating: IP 44
Motor Class B
Ball bearings motor
Weight: 8.7 (kg)
AVAILABLE Soler&Palau TD-SILENT Series:
TD-160/100 N SILENT
TD-160/100 NT SILENT (run-on timer)
TD-250/100 SILENT
TD-250/100 SILENT T (run-on timer)
TD-350/125 SILENT
TD-350/125 SILENT T (run-on timer)
TD-500/150-160 SILENT 3V
TD-500/150-160 SILENT T 3V (run-on timer)
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V (run-on timer)
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T 3V (run-on timer)
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V
| Weight | 8.7 kg |
|---|---|

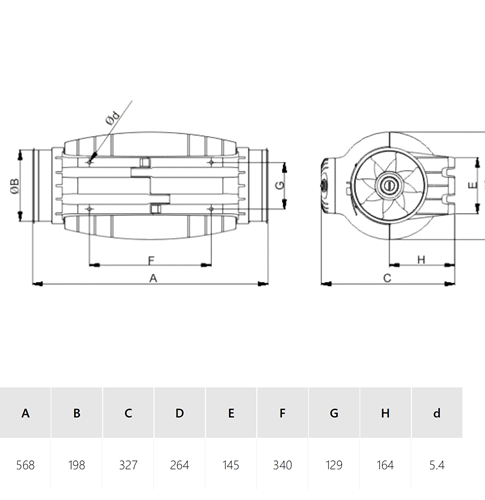

| Dimensions | 650 × 340 × 400 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions |
