TD-800/200 SILENT T 3V Soler & Palau in-line mixed flow duct fan with timer
€274.07

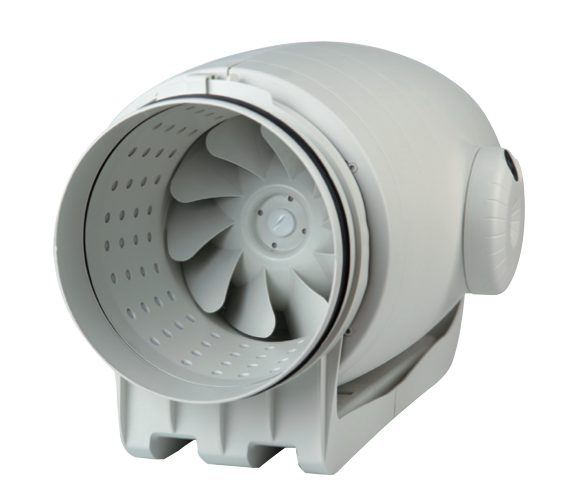

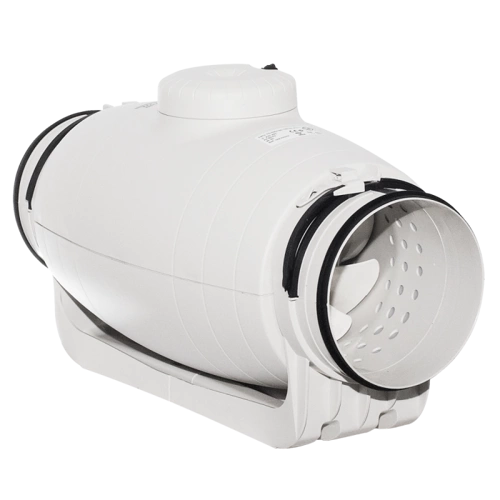

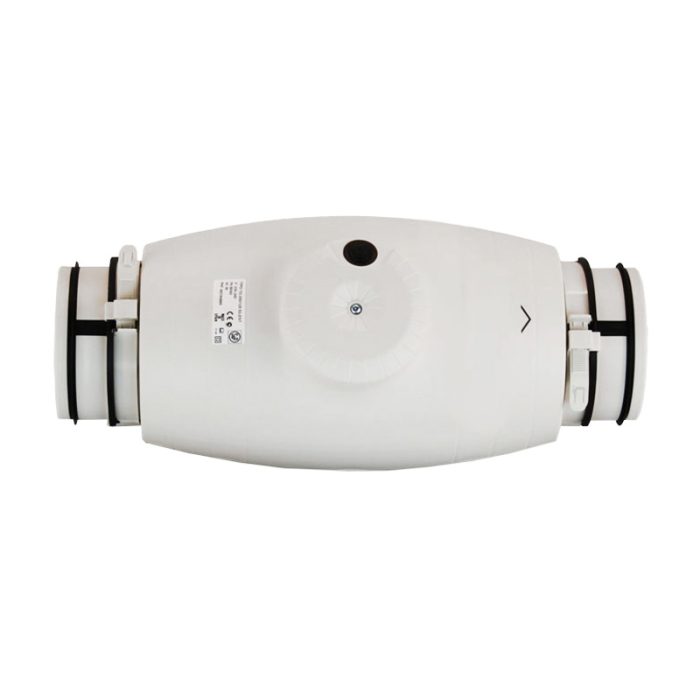

The Soler & Palau TD-800/200 SILENT T 3V is an ultra-quiet mixed-flow inline duct fan with an adjustable run-on timer (1–30 minutes), engineered for efficient, low-noise ventilation in residential, commercial, and industrial environments. Constructed from high-quality plastic with sound-absorbent insulation, it delivers airflow up to 910 m³/h with whisper-quiet performance (22–28 dB(A)). Equipped with a three-speed motor, rubber seals for vibration absorption, and a 360° rotatable connection box, this fan offers energy-efficient airflow, easy maintenance, and long-lasting durability. Ideal for bathrooms, kitchens, workshops, and HVAC systems that require continuous, quiet, and reliable ventilation.
The Soler & Palau TD-800/200 SILENT T 3V is part of the world-renowned TD-SILENT series, combining ultra-quiet operation, energy efficiency, and smart control for optimal air management. Designed for homes, offices, restaurants, and commercial spaces that demand powerful yet silent ventilation.
Featuring an integrated adjustable timer (1–30 minutes), the TD-800/200 SILENT T 3V continues running after the power is switched off, maintaining air quality and preventing moisture build-up — ideal for bathrooms, kitchens, and HVAC systems requiring timed airflow control.

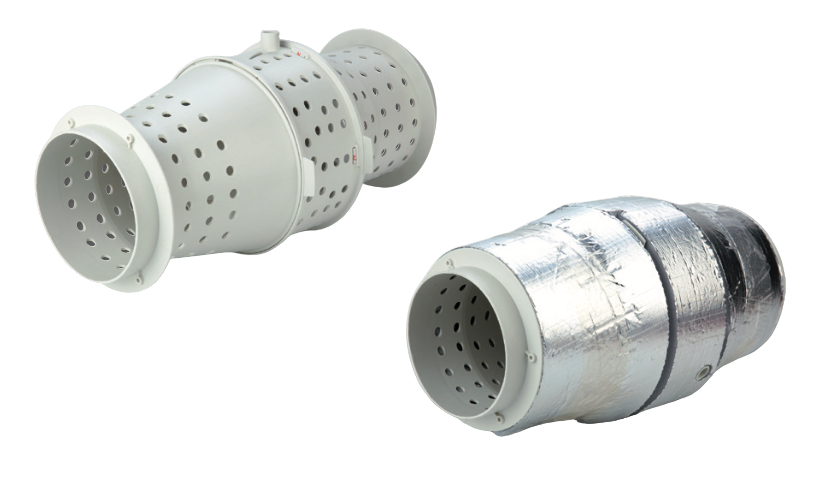

Manufactured from high-grade, impact-resistant plastic, this inline duct fan incorporates a specially engineered internal skin that guides sound waves to the correct angle for absorption by the sound-insulating material.
The result is a low noise level between 22 and 28 dB(A), making it one of the quietest mixed-flow fans available.

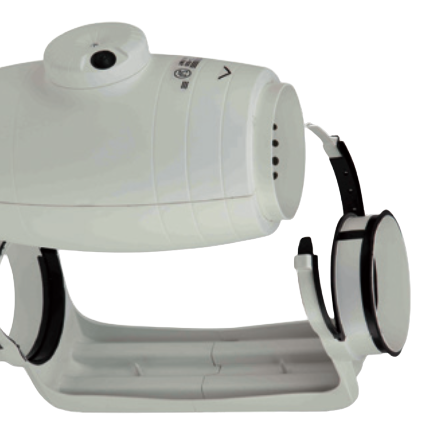

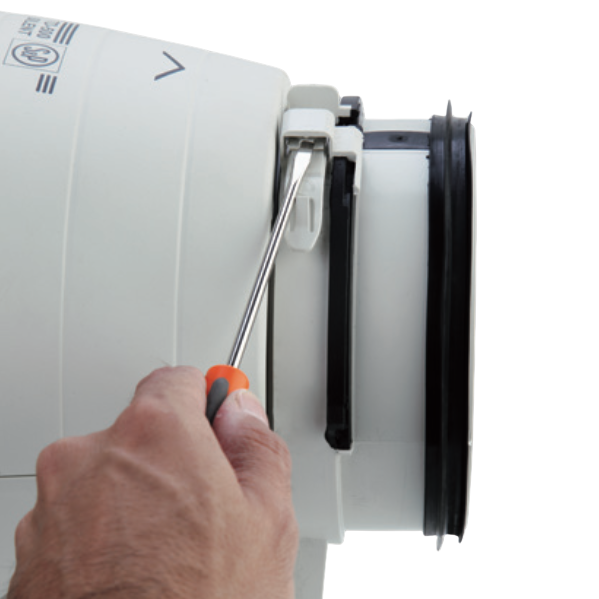

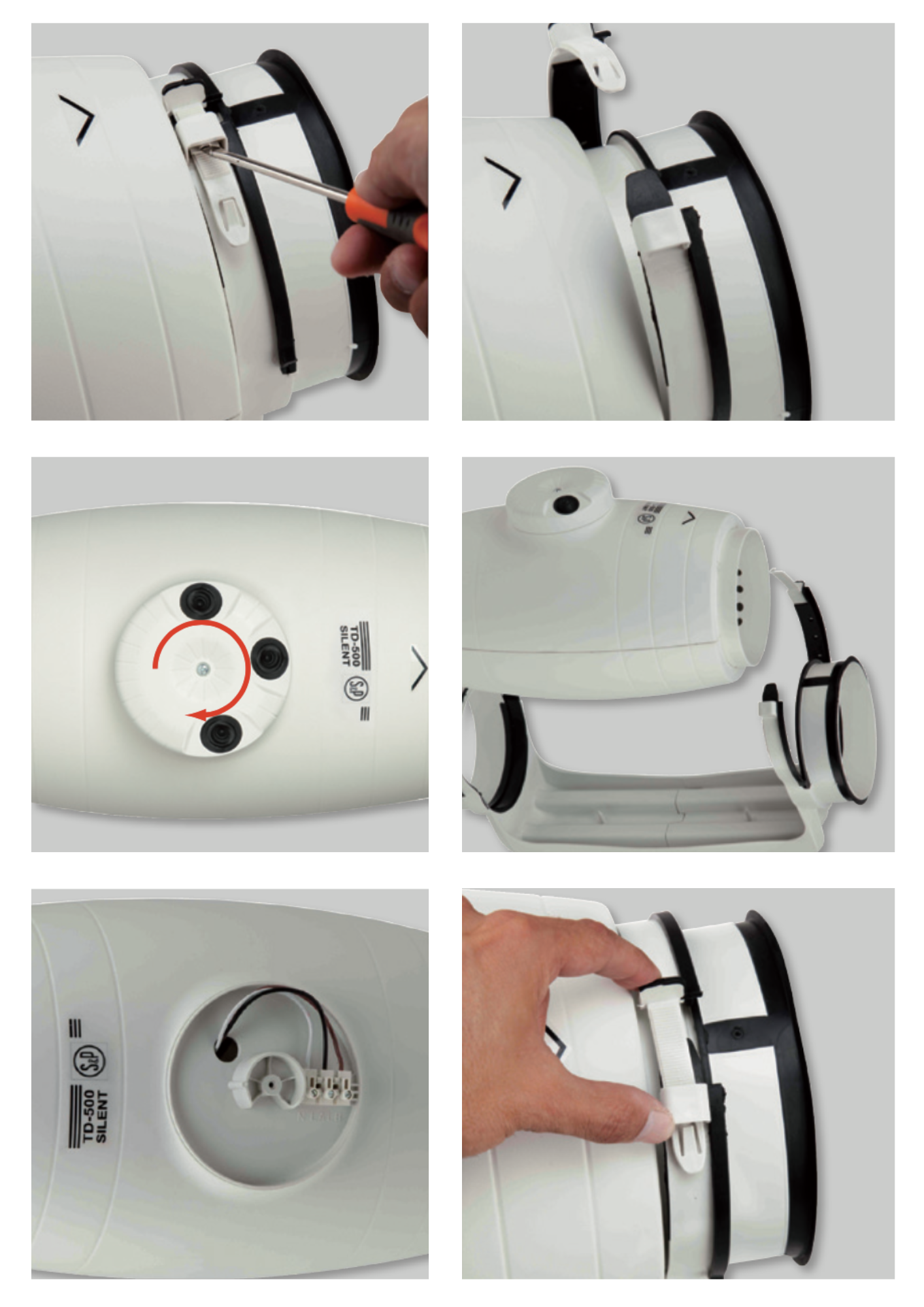

Additional features include rubber gaskets on both inlet and outlet to minimize vibration, a removable fan body for easy maintenance without dismantling ducts, and a 360° rotatable junction box for flexible installation.
The 3-speed motor (230 V / 50 Hz) is speed-controllable, ball bearing equipped, and protected against overheating with a thermal overload safety switch.
Rated IP44, it ensures durability and safety even under continuous operation.
This fan is certified by the Noise Abatement Society for its exceptionally quiet design and long service life, offering reliable performance in environments where people work or live for extended hours.
Technical information:
Functions: Run-on-timer (1-30min)
Connection diameter: 200 (mm)
3-speed motor
Speed: 1660/1870/2170 (r.p.m.)
Airflow capacity (m³/h): 690/780/910
Sound level (dB(A)): 22/24/28
Power consumption (W): 90/92/102
Temperature range (°C): -20 to + 60
Maximum absorbed current (A): 0,46/0,47/0,5
Functions: Run-on-timer
Voltage (V): 230
Frequency (Hz): 50
IP rating: IP 44
Motor Class B
Ball bearings motor
Weight: 8.7 (kg)
AVAILABLE
TD-SILENT Series
TD-160/100 N SILENT
TD-160/100 NT SILENT
TD-250/100 SILENT
TD-250/100 SILENT T
TD-350/125 SILENT
TD-350/125 SILENT T
TD-500/150-160 SILENT 3V
TD-500/150-160 SILENT T 3V
TD-800/200 SILENT 3V
TD-800/200 SILENT T 3V
TD-1000/200 SILENT 3V
TD-1000/200 SILENT T 3V
TD-1300/250 SILENT 3V
TD-2000/315 SILENT 3V
* TD-SILENT versions fitted with a run-on- timer adjustable within 1 – 30 minutes
| Weight | 8.7 kg |
|---|---|
| Dimensions | 650 × 340 × 400 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions | , |
