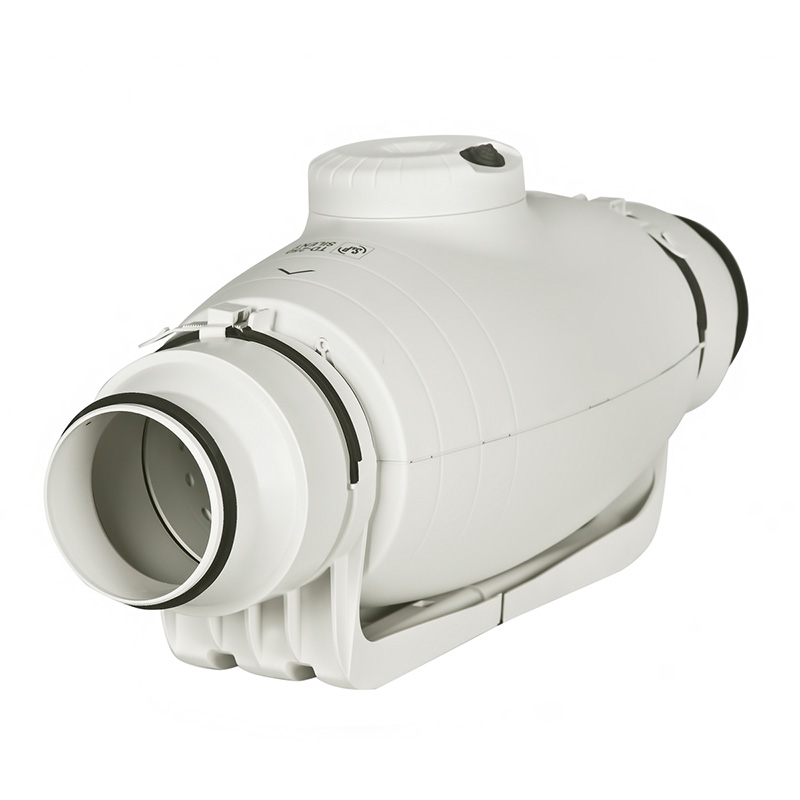

TD-250/100 SILENT T Soler & Palau ultra-quiet in-line mixed flow duct fan with timer
€155.24
Low profile “Mixed-flow” fans with sound- absorbent insulation. Extremely quiet.
Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves at the right angle for them to be captured by the sound-absorbent material. Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, a body that can be dismantled. Connection box can be rotated 360o, to facilitate easy connection of the power cable.
TD Silent range offers one of the most versatile fan systems on the market today. Due to its flexibility it can be used in a multitude of small or medium fan installations. Especially in places where working people and the ventilation system works for many hours, in these cases the sound level becomes an essential element for comfort.
TD-SILENT-T models
TD-SILENT versions fitted with a run-on- timer adjustable within 1 and 30 minutes and 2-speed motors not suitable for speed control.
Low profile
The low profile of the TD-SILENT fans makes them the most effective solution for installations where space is very limited, especially in ceiling voids.
Low noise level
Sound waves produced inside the TD, are directed through the perforated inner skin and absorbed by the layer of sound absorbent material
Support bracket
Support bracket for installing on a wall or ceiling, incorporating twin- material support brackets for the motor section that absorbs vibration.
Easymaintenance
Removable motor-body assembly to easy cleaning and re-pairing without touching the ducts. Support plastic brackets simplify the operation.
Additional information
The models offer solutions to ventilation problems, especially in places where people work and low sound level is required.
Technical information:
Two speed motor
Diameter(mm): 100
Airflow capacity (m³/h): 200/250
Sound level (dB(A)): 20/25
Power consumption (W): 21/27
Temperature range (°C): -20 to + 40
Maximum absorbed current (A): 0,1/0,12
Functions: Run-on-timer
Voltage (V): 230
Frequency (Hz): 50
IP rating: IP 44
Motor Class B
AVAILABLE:
TD-SILENT Series
TD-160/100 N SILENT
TD-160/100 NT SILENT
TD-250/100 SILENT
TD-250/100 SILENT T
TD-350/125 SILENT
TD-350/125 SILENT T
* TD-SILENT versions fitted with a run-on- timer adjustable within 1 and 30 minutes
| Weight | 5.2 kg |
|---|---|
| Dimensions | 643 × 274 × 327 mm |
| Product type | |
| Color | |
| Material | |
| Brand | |
| Manufacturer | |
| Country of origin | |
| Functions | , |
