VS110 and VS120 – condensate tray with bracket, Rodigas

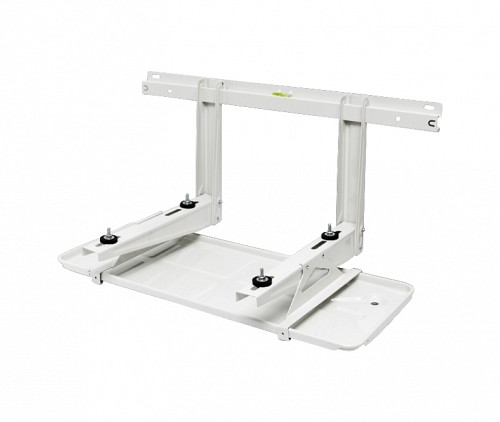

Rodigas VS110 + VS120 Condensate Tray with Hanging Bracket
The Rodigas VS110 tray with VS120 bracket is a compact and efficient solution for condensate drainage under the outdoor unit of air conditioners and heat pumps. Built from high-quality electro-galvanized steel with epoxy polyester coating, it ensures durability and resistance to UV radiation and corrosion.

Key Features
– Efficient drainage system – designed to collect and redirect condensate from air conditioner or heat pump outdoor units.
– Compact design – ideal for smaller installations where space-saving solutions are required.
– Durability – resistant to corrosion and UV exposure, perfect for outdoor conditions.

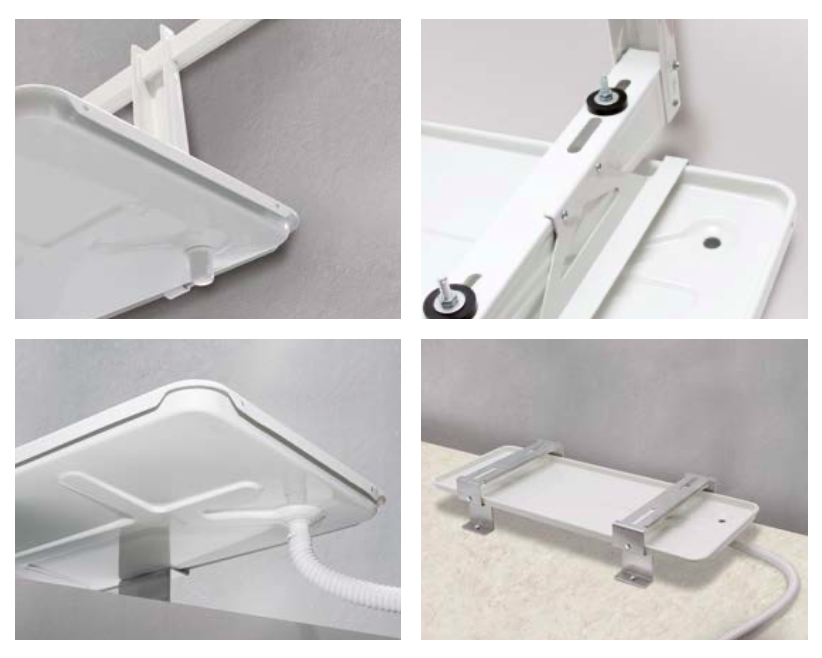

– Quick installation – wall or ceiling mounting with fixing screw included.

Technical Information:

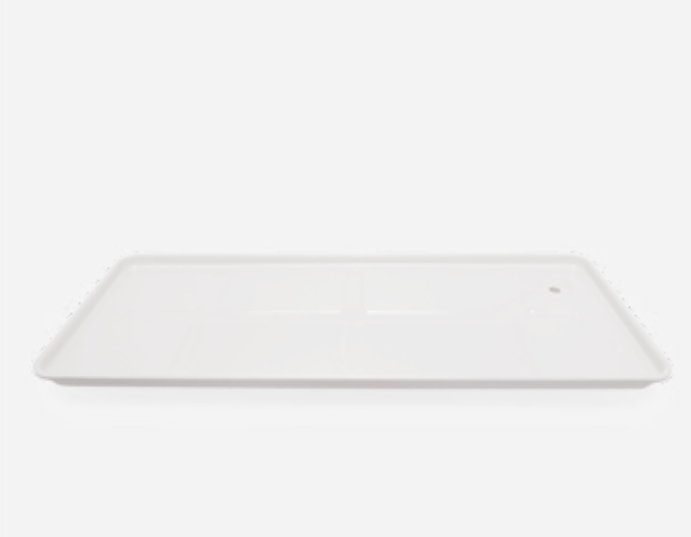

Condensate tray length VS110: 830 mm
Condensate tray width VS110: 310 mm

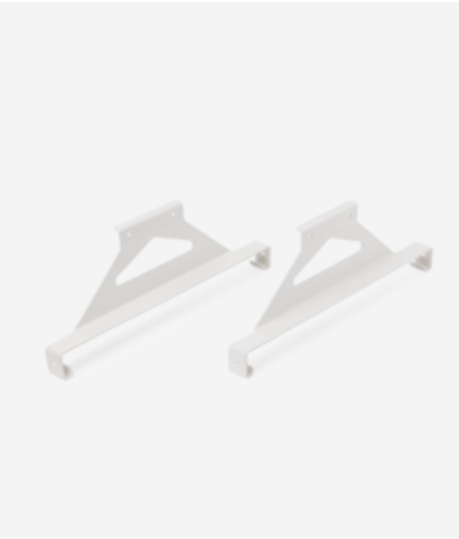

Bracket width VS120: 310 mm
Material: Electro-galvanized steel
Treatment: Epoxy resins in polyester for outdoor
Included in set: Fixing screws
Color: White (RAL 9002)
